CUBICON PLUS-1
cubicon-2
FDM (Fused deposition modeling)

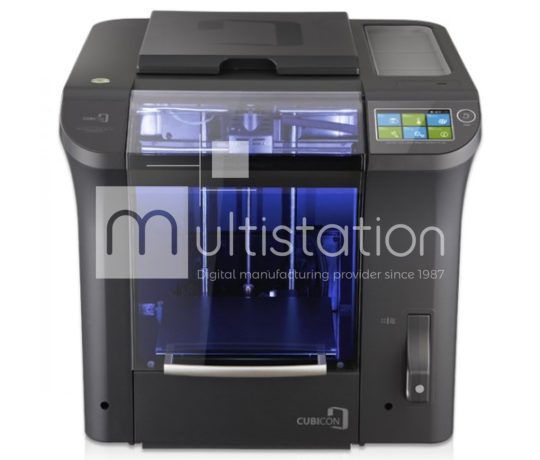

3D Printer – Cubicon Single Plus

Manufacturer : CUBICON

Fields of activity :Education, Fablabs, Industry, Luxury, Medical

The Cubicon Single Plus has a large print volume for a wire deposit printer, with a construction volume of 240 x 190 millimeters in X, Y and up to 200 millimeters in height on the Z axis.



Reference : MS181207

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical specificities

  • Print volume 240 x 190 x 200 mm·
  • Overall dimensions 554 x 579 x 524 mm·
  • Z resolution 0.00125 mm·         Resolution X-Y 0.00625 mm·
  • Layer thickness 0.05 to 0.3 mm·
  • Extruder 1·
  • Extruder temperature 260 ° C Maximum·
  • Heating tray at 120 ° C Maxi·
  • Nozzle diameter (mono-extruder) 0.4 mm·
  • Maximum speed 300 mm / s·
  • LCD touch screen printer control·
  • Cubicreator Software·
  • Materials PLA, ABS, TPU (1.75mm)·
  • Automatic Calibration Platform·
  • STL / OBJ file format·
  • Special feature 4.3-inch touchscreen·
  • Filament detection Interchangeable extruders

Process : FDM (Fused deposition modeling)

Condition : Very good condition
