FDM (Fused deposition modeling)

3D Printer – Leapfrog Bolt

Manufacturer : LEAPFROG

Fields of activity: Business sectors: Education, Fablabs, Automotive, Industry

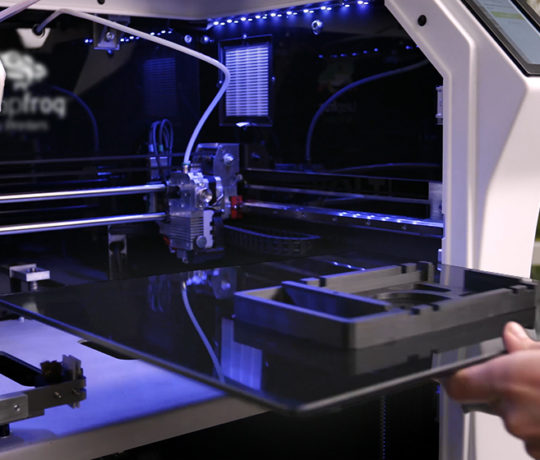

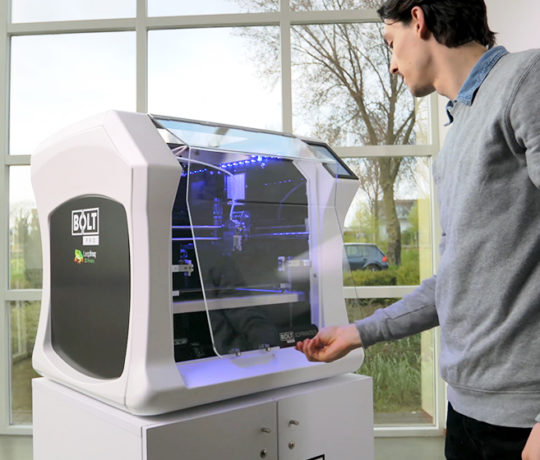

The Bolt Pro is an industrial machine designed for performance and reliable long-term 3D printing.It allows multi-material 3D printing. It is equipped with the latest technology working with two independent extrusion heads that makes 3D printing simpler, faster and more reliable.





Reference : MS181200

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical specificities

Material Types Leapfrog Maxx filaments and materials

Building volume 320x330x205mm (simple extrusion)    320 x 300 x 205 mm (double extrusion)

Max print volume 21.6 liters

Diameter of the nozzle 0.35 mm

Thickness of layer 0.05 – 0.35 mm

Positioning accuracy 0.008 mm (XY) – 0.01 mm (Z)

Print speed up to 100 mm / s

Movement Speed ​​Up to 250 mm / sec

Extrusion temperature Up to 270 ° C or 360 ° C with high temperature extruder

Temperature print tray 90 ° C

External dimensions 723x831x801mm

Electrical connections 88 – 264V / 47 – 63 Hz

Power consumption 600 W

Connectivity Ethernet, Wifi, USB stand-alone









Type/Model : Bolt Pro

Process : FDM (Fused deposition modeling)

Condition : Very good condition

Manufacturer

LEAPFROG
