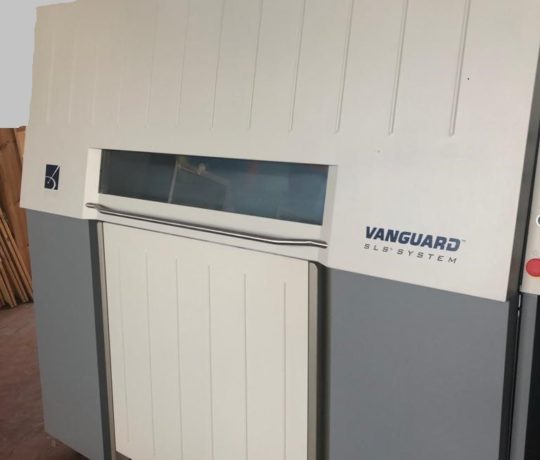

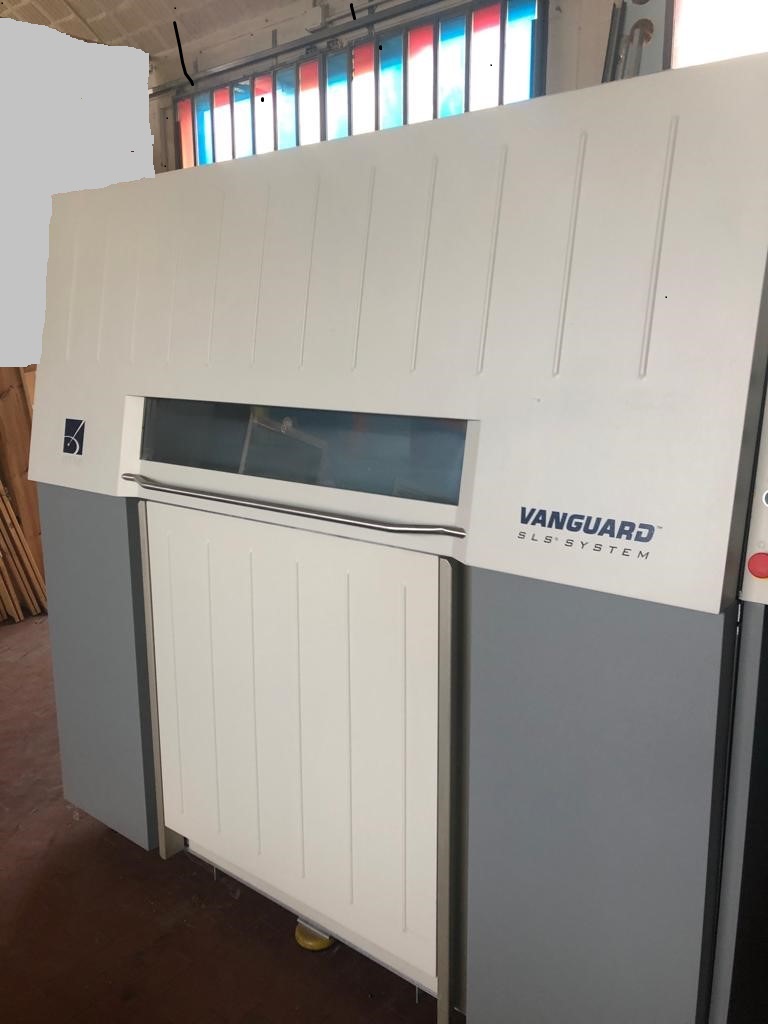

3D SYSTEMS – Vanguard

Manufacturer : 3D SYSTEMS
Reference : M190805

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote
Technology: Selective Laser Sintering, SLS
Material Classes: Powder; Thermoplastic, Thermoplastic Elastomer, Metal, Composite
Laser and Scanning
Laser  25 or 100 Watt CO2 (material dependent)
Standard Beam Delivery System (BDS) Maximum Scan Speed = 7,500 mm/sec
Celerity™ BDS Maximum Scan Speed = 10,000 mm/sec


C A PA C I T Y
Maximum build envelope W370 x D320 x H445 mm (W14.5 x D12.5 x H17.5 in)


S Y S T E M C O N T R O L L E R & S O F T W A R E
Control software Proprietary SLS system software
Operating system Windows 2000 with Service Pack 1
Input data file format .stl .slc
Network type and protocol Ethernet, IEEE 802.3 10/100 Base-T using TCP/IP
System requirements 933 MHz Pentium III
P O W E R
System 240 VAC, 12.5 KVA, 50/60 Hz, 3-phase


A M B I E N T  T E M P E R AT U R E
Temperature range  23°C +/- 3°C (73°F +/- 5°F)
Atmospheric Requirements Range = 15º to 27ºC
Relative Humidity = <70% non condensing


S I Z E
Process Station W2.13 x D1.35 x H1.98 m (W84 x D53 x H78 in)
Computer Cabinet W0.61 x D0.66 x H1.78 m (W24 x D26 x H70 in)
Chiller (U.S. and Asia Pacific) W0.55 x D0.91 x H0.81 m (W22 x D36 x H32 in)
(Europe) W54 x D71 x H93 cm (W21 x D28 x H37 in)


W E I G H T
Process Station 1700 kg (3748 lb)
Computer Cabinet 118 kg (260 lb)
Chiller (U.S. and Asia Pacific) 113 kg (249 lb)
(Europe) 64 kg (141 lb)

Type/Model : Vanguard

YOM : 2001

Process : SLS (Selective Laser Sintering)

Laser

Type/Power of the laser : 25 or 100 Watt CO2 depending of material

Condition : Very good condition

Manufacturer

3D SYSTEMS
