FDM (Fused deposition modeling)

ANISOPRINT COMPOSER

Manufacturer : ANISOPRINT

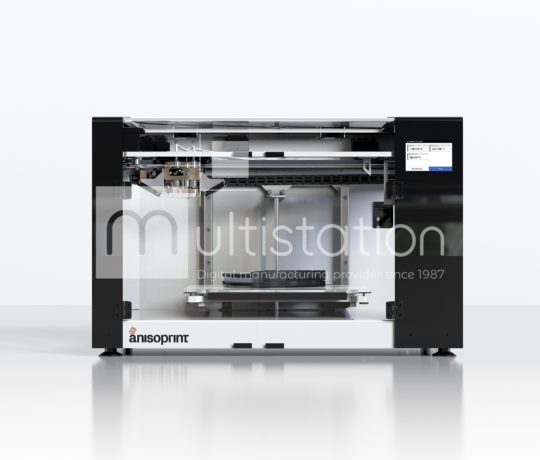

The Anisoprint Composer is a Material Extrusion 3D printer capable of printing two materials in one print job. The second extruder can print composite carbon fiber filament (CCF) which enables you to reinforce the part while printing.

Reference : M191215

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

PRINTING

  • Printing technologye : Fused Filament Fabrication (FFF); Composite Filament Co-extrusion (CFC)
  • Print bed size : 297 mm х 210 mm х 148 mm
  • Layer thickness, min. : 60 µm

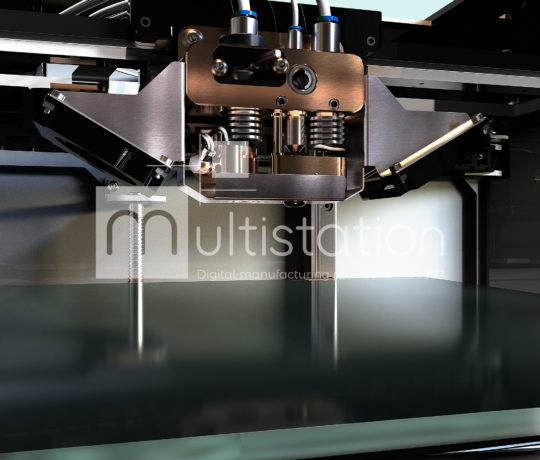

  • Print-head : Dual nozzle (FFF extruder; CFC extruder with reinforcing filament cutting device)
  • Nozzle diameter FFF: 0.4 mm
  • Print speed FFF : 10 mm/sec – 80 mm/sec
  • Print speed CFC : 1 mm/sec – 10 mm/sec
  • Plastic filament diameter : 1.75 mm
  • Compatible plastics : Plastics with processing temperatures up to 250°С
  • Reinforcing filament : Anisoprint CCF-1.5k
    Platform surface : Glass

Physical Characteristics

  • Weight : 30 kg
  • Printer size (L x W x H) : 610 х 400 х 400
  • Interface : SD-card slot, USB-Type B

Temperature

  • Print-head operating temperature, max. : 270°С
  • Platform operating temperature, max. : 120°С

Software

  • Slicer : Anisoprint Aura (FFF+CFC); Cura, Slic3r (FFF)
  • OS support : Windows 7+

Power requirements

  • Voltage : 220-240 V
  • Frequency : 50/60 Hz
  • Maximum output : 800 W

Type/Model : COMPOSER

Process : FDM (Fused deposition modeling)

Condition : Very good condition

Manufacturer

ANISOPRINT
