CONCEPT LASER XLINE 1000R

Manufacturer : CONCEPT LASER

industrial Metal 3D Printer

Reference : M250506

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical specifications:

  • Brand/Model/Version: Concept Laser – X line 1000R
  • Year of manufacture: 2013 (according to visible documentation)
  • Manufacturing volume: 630 x 400 x 500 mm (x, y, z)
  • Process: Laser fusion on a bed of metal powder (LaserCUSING®)
  • Compatible materials:
    • Aluminum AlSi10Mg (CL 31AL)
    • Titanium TiAl6V4 ELI (CL 41TI ELI)
    • Inconel 718 (CL 100NB)
  • Laser type: Continuous fiber laser (cw)
  • Laser power: 1 kW
  • Maximum scanning speed: 7 m/s
  • Layer thickness**: 30–200 µm
  • Production speed**: 10–100 cm³/h (depending on material)
  • Inert gas consumption**: 17–34 l/min
  • Average power consumption: 13 kW
  • Machine dimensions: 4415 x 3070 x 3900–4500 mm
  • Net weight: 8000 kg
  • Required peripheral equipment: screening station, powder silo

Condition / Accessories / Maintenance:

  • Accessories included:
  • Complete documentation

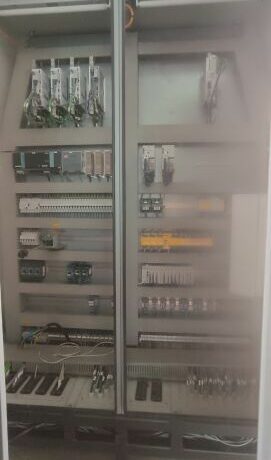

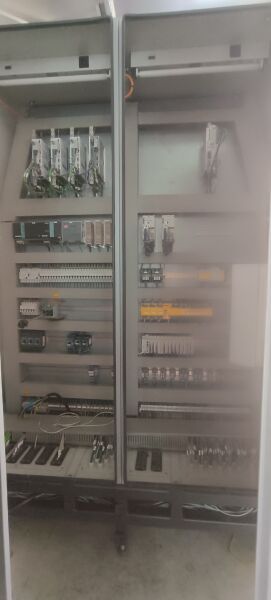

  • Internal electrical cabinets visible
  • ROFIN FL 10C manual (fiber laser)
  • Pilz manual (safety)
  • Documentation boxes/binders (photos 2 and 5)

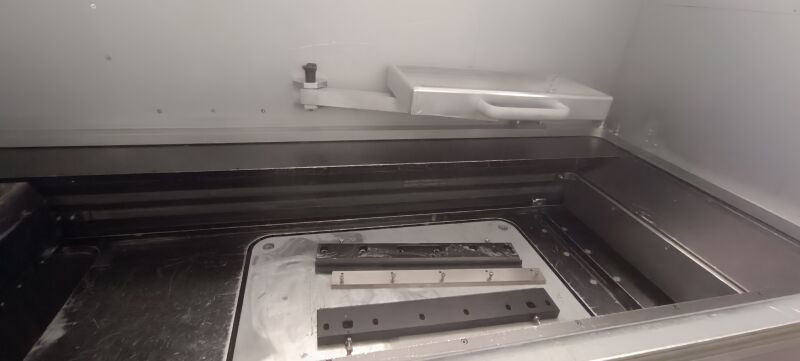

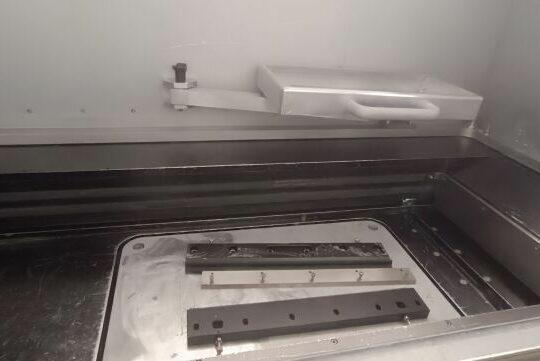

  • General condition: clean and complete, manufacturing chamber in good condition
  • Scope of delivery: documentation, technical binders, control cabinets, visible components, installation CD

Materials :
Compatible: Aluminum AlSi10Mg (CL 31AL) / Titanium TiAl6V4 ELI (CL 41TI ELI) / Inconel 718 (CL 100NB)

Type/Model : XLINE 1000R

YOM : 2013

Building volume : 630 x 400 x 500 mm (x, y, z)

Process : SLM

Laser

Type/Power of the laser : Continuous fiber laser (cw) - power: 1 kW

Condition : Very good condition
