Other Additive manufacturing

DIGITALWAX 010+

Manufacturer : DWS

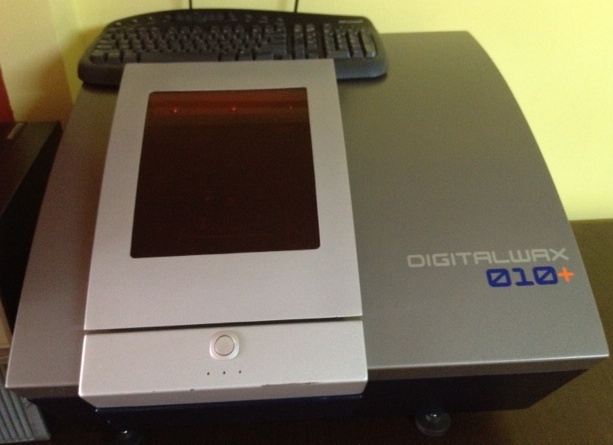

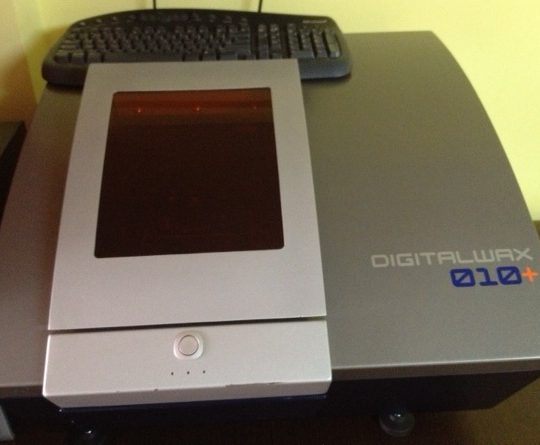

The DigitalWax 010+ stereolithography machine creates models of three-dimensional pieces in plastic material by means of a photosensitive resin formed using ultraviolet rays produced by a laser source.

With this machine it is possible to pass from a geometrical-mathematical three-dimensional model produced by any 3D CAD system to a dimensionally perfect prototype within a few hours.

Reference : M130110

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

STANDARD SPECIFICATIONS

Power supply voltage (PC) 230 V a.c
Power supply frequency (PC) 50 Hz
Total machine mass: 60 kg

Overall machine dimensions
Width-Depth-Height: 600x435x400 mm

Axis travels
X Axis : 200 mm
Y Axis : 200 mm
Z Axis : 60 mm

LASER CHARACTERISTICS
Power developed in continuous wave operation (CW)  2 mW
Power developed in pulsed mode operation
Wave length 405/408 nm
Class 3B
Electric current intensity at beginning of oscillation (average) 90mA
Electric current intensity during operation 90 mA
Working voltage (average): 4,6 V
Radiation angle : Horizontal 8     Vertical: 22
Direction of polarization: 25  ̊C

Type/Model : DIGITALWAX

YOM : 2006

Process : DLP (Diode Light Processing)

Condition : Very good condition
