MACHINE CAPACITY:
X Axis: 500 mm (19.7″)
Y Axis: 400 mm (15.7″ )
Z Axis: 500 mm (19.7″)
Distance Spindle Axis and Pallet: 200 mm (8″) Min. to 430 mm (16.5″) Max.
Distance Spindle Nose and Pallet Axis: 10mm ( 3.9″ ) Min. to 430 mm (16.5″) Max.

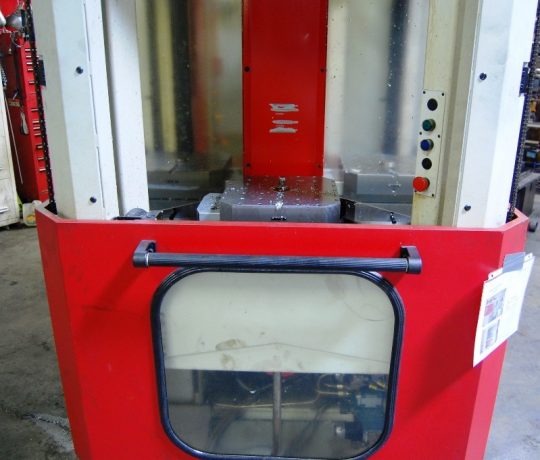

PALLET CHANGING SYSTEM:
Pallet Dimensions: 320 x 320 mm (12.6″ x 12.6″)
Pallet Locations: 4
Programmable Indexing: 360,000 x 0.001 Degrees
Permissible Load Per Pallet: 660 Lbs. / 300kg
Pallet Changing Time: 7 Seconds
WORK SPINDLE:
Spindle Motor: 20 HP
Speed Range: 50 to 20,000 RPM (not verified)
Spindle Taper: CAT 40
EQUIPPED WITH:

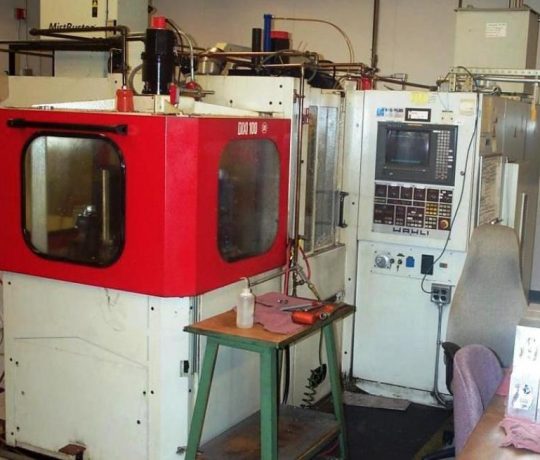

GE-Fanuc 15MB CNC Control with Color CRT
Fanuc Japan Drives
(4) 12.6″ x 12.6″ Pallets
