Buy used Additive manufacturing

INGERSOLL MASTERPRINT CONTINUOUS FILAMENT

Manufacturer : INGERSOLL

Very rare
Demo machine, ideal for Unis or R&D centers

CONTINUOUS CARBON FILAMENT ROBOT

Reference : M200801

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

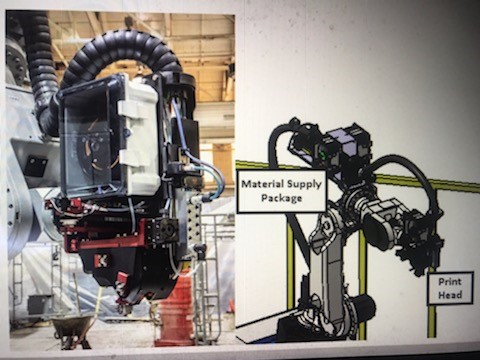

6-axis Robot Comau NJ130-2.0 with 7 axis heated rotary table – Siemens 840 D with Ingersoll printing head with carbon spool and two extruders for PEI Ultem

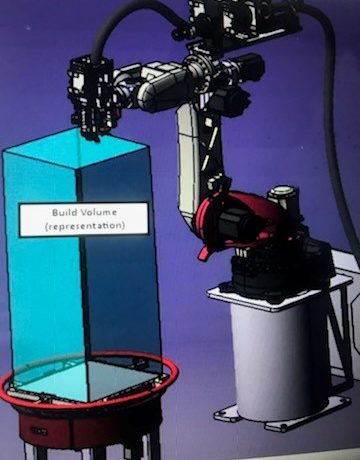

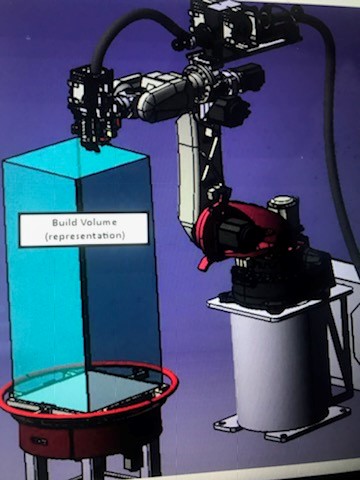

Printing build volume 600x600x1400 mm. Software included

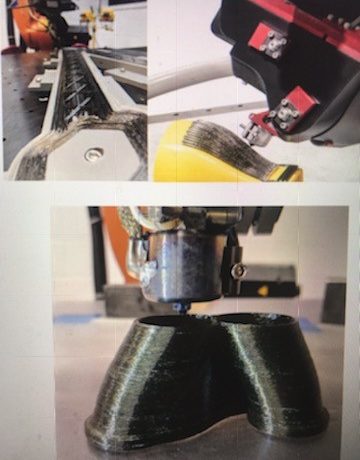

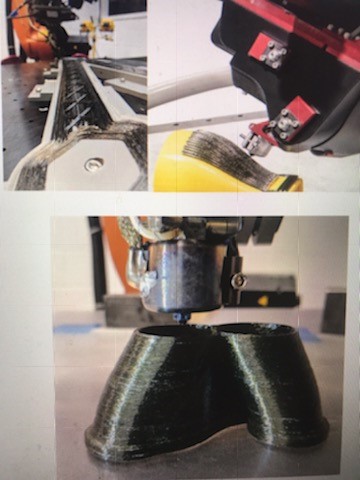

For production of high resistance parts: the primary material is a prepreg single-tow carbon fiber with PEI-Ultem resin. During printing this long fiber is combined with additional resin from a separate filament spool to form the bead deposited.

Very good conditions. Price can include local process support

Non-disclosure agreement necessary to get detailed quotation

Type/Model : MASTERPRINT CONTINUOUS FILAMENT

YOM : DEMO

Building volume : 600x600x1400 mm

Process : Other Additive manufacturing

Condition : Very good condition
