FDM (Fused deposition modeling)

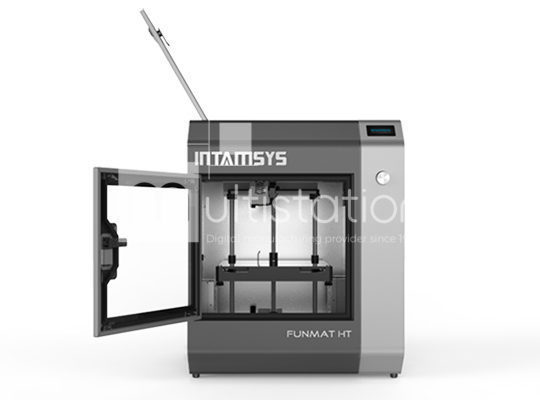

INTAMSYS-FUNMAT HT

Manufacturer : INTAMSYS

Sectors : Aerospace, Automotive, Education, Fablabs, Industry, Medical

The FUNMAT HT is fully capable of 3D printing high-performance functional materials like PEEK, ULTEM and PPSU, in addition to a broad range of engineering thermoplastics. Users can achieve 50-micron high resolution industrial quality 3D printing of the FUNMAT HT.

Reference : M191214

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical specifications

  • Technology – Fused Filament Fabrication (FFF)
  • Build volume – 260mm x 260mm x 260mm
  • Position accuracy – 12.5μm x 12.5μm x 1.25μm (X x Y x Z)
  • Build platform – Aluminium plate & high borosilicate glass
  • Supported files – STL, OBJ

Printing specifications

  • Layer thickness – 0.05 – 0.3mm
  • Heated bed maximum temperature – 160°C
  • High temperature extruder maximum temperature – 450°C
  • Build chamber atmospheric temperature – 90°C
  • Compatible materials – PEEK, ULTEM, PPSU, PLA, ABS, Nylon (PA)< Carbon Fiber, TPU, PC
  • Filament diameter – 1.75mm

Features we like

  • The chamber temperature can go up to 194 °F /90 °C
  • High-temp hot-end
  • Quiet for an industrial grade machine (55-59db operating sound)
  • A wide range of printable materials: PEEK, ULTEM, PPSU, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA



Process : FDM (Fused deposition modeling)

Condition : Very good condition
