Milling

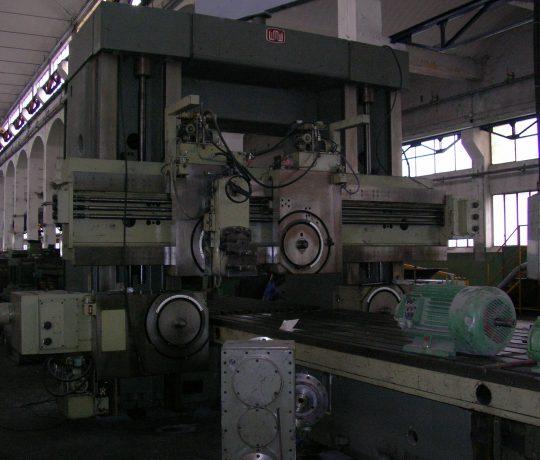

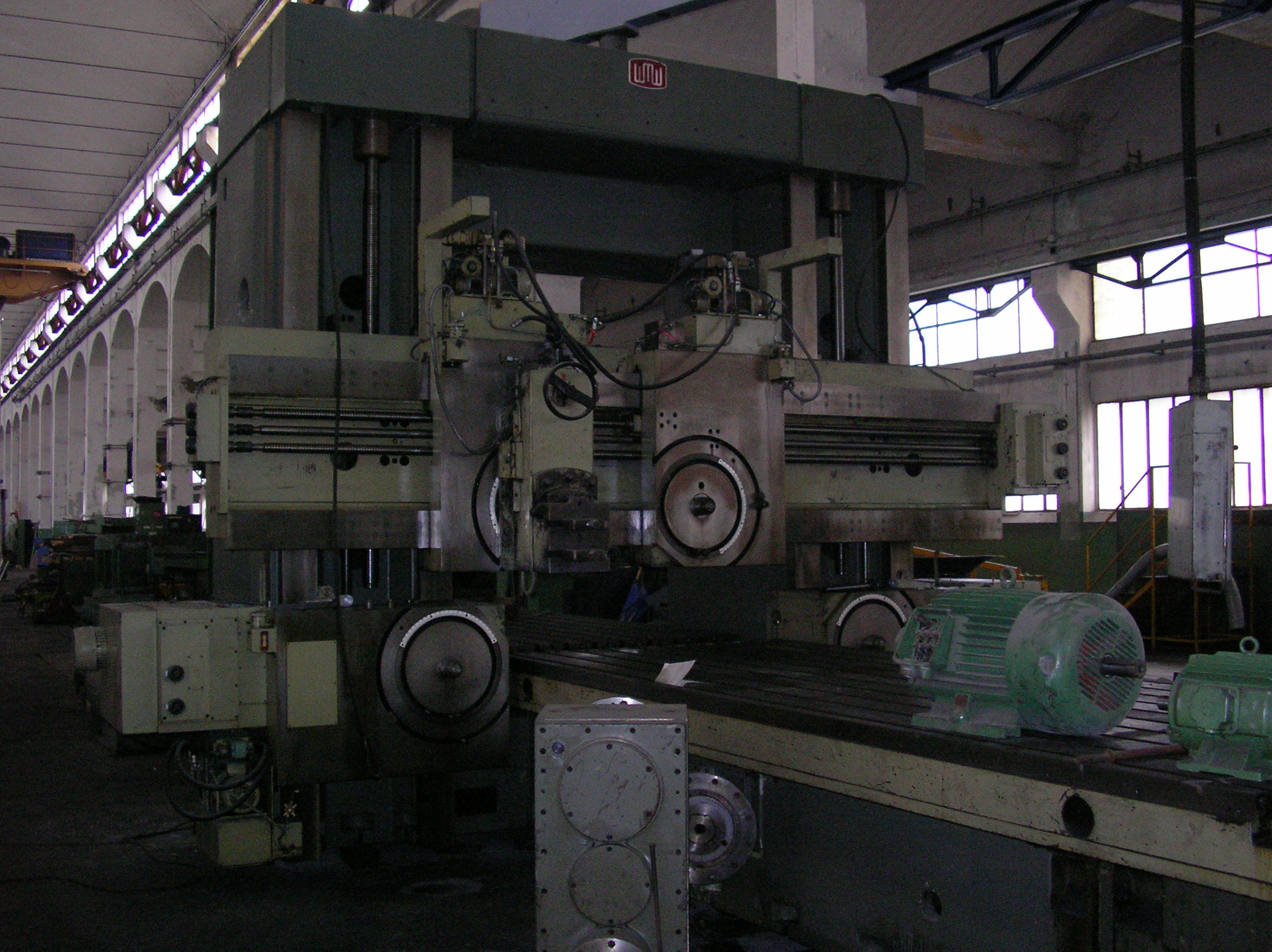

MARIO CARNAGHI CNC PLANOMILLING MACHINE WMW 8000

No. 1 Double columns planing machine type “WMW”

Reference : M120907D

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical data

– Distance between columns mm 1850

– Planing length             mm  8000

– Planing width              mm  1750

– Planing height             mm  1250

– Table motor               Kw 80

– Table speed               m/min 8/80

Equipped with:

– no. 1 planing head on the cross rail

– no. 1 milling head Kw 15

– no. 1 planing head on right column

– no. 1 planing head on left column

– Speed reducer for longitudinal milling operations

In very good condition

Type/Model : MARIO CARNAGHI

Process : Milling

Condition : Very good condition
