MARIO CARNAGHI TGF.1.650

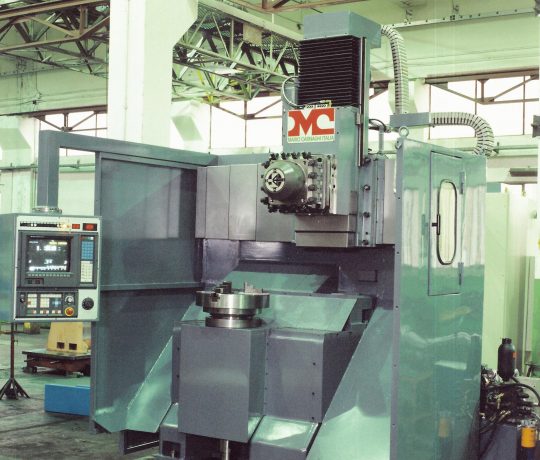

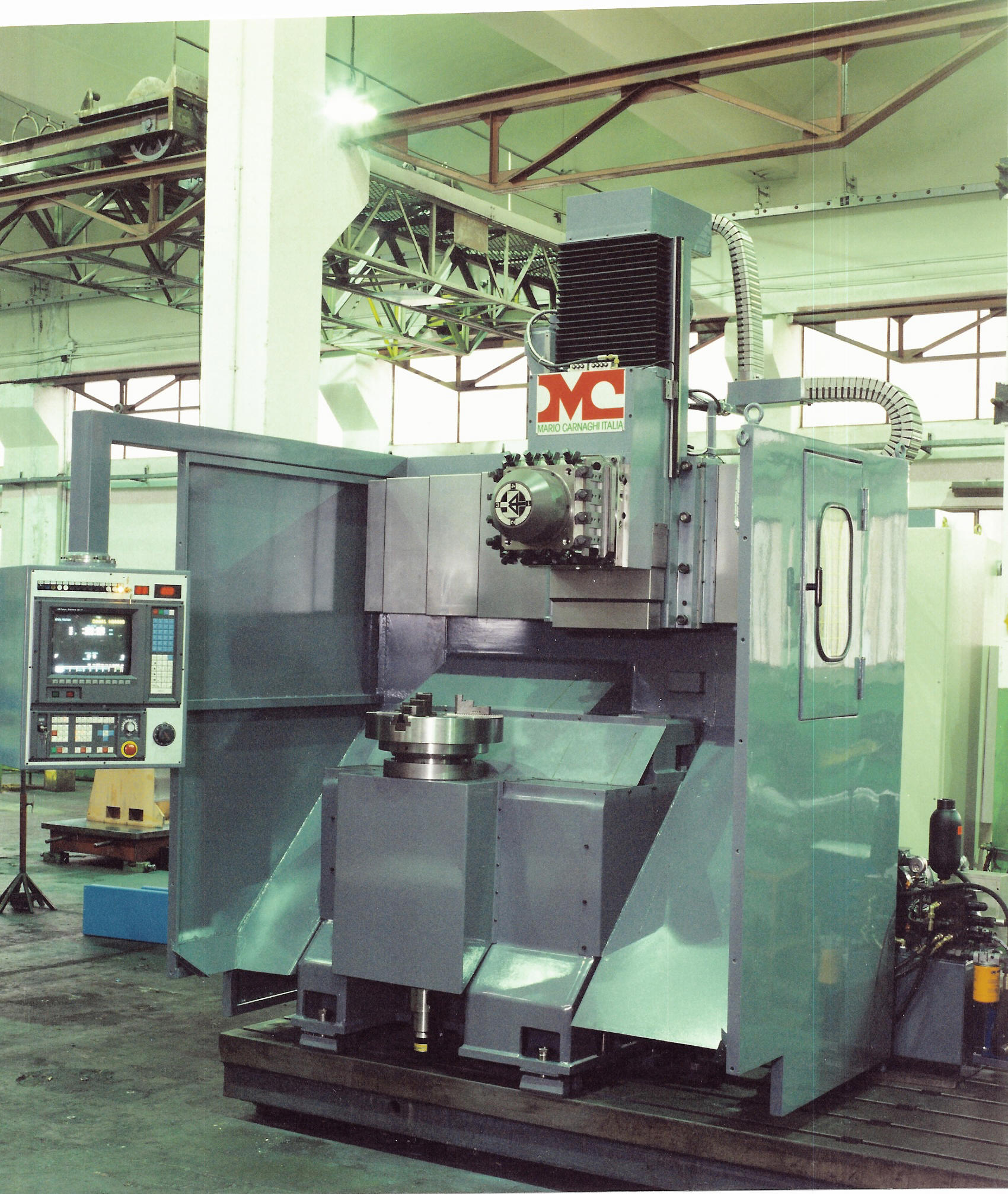

CNC Vertical Turning Lathe

CNC-controlled single column vertical turning and boring mill with fixed cross-rail, equiped with twin vertical turret heads for turning operations.

Reference : M121105

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical specifications

• Table diameter   mm. 400
• Max. turning diameter with vertical head mm. 650
• Max. turning height over the platform mm. 750
• AC-motor for table drive  kW. 37
• Table rotation speed  r.p.m. 0÷1.500
• Max. torque at table  Nm 1.165
• Gearbox ranges   no. 1
• Tool section   mm. 32×32
• Net weight of the machine ab.   Kg. 10.000

The machine has no movable cross-rail but is equipped with a fixed cross-rail with slide-ways for the transversal movement of the vertical head.

The machine is equipped as follows:

No. 1 CNC-controlled vertical 4-position turret head for turning operations, applied on the right hand-side of the fixed cross-rail and having the following features:
– number of turret position: 4
– slide vertical stroke (“Z” axis): mm. 600
– AC-motors for axes drive
– torque: Nm 18
– working feeds: mm./rev. 0,05÷5
– rapid feeds: mm./min.’ 0÷12.000
The turret head is complete with no. 1 toolholder our model “AM”.

Tool cooling equipment with tank capacity 20 lt./min.’ and pressure 5 bars.
Table with 3 manual jaws
Protection guards with standard height mm. 2.200.
No. 1 belted type chip conveyor.
Steel telescopic covers on fixed cross-rail for the protection of the slide-ways.
• “SIEMENS” package: all the motors and drives of the machine are “SIEMENS” make.
CNC-Numerical Control “SIEMENS SINUMERIK 840C” on 4 axes:
vertical movement of right vertical head (“Z” axis);
horizontal movement of right vertical head (“X” axis);

Type/Model : MARIO CARNAGHI

YOM : 2012

Process : Turning

Condition : Very good condition
