- swing over bed :1350 mm
- swing over gap: 1600 mm
- max turning diameter over carriage: 1000 mm
- turning length: 5000 mm
- spindle bore: 105 mm
- main motor power: 49/34 kW
- tooling system – 4-way toolpost
- max. weight of workpiece in centers: 9000 kg
- max. weight in chuck :2000 kg
- the number of spindle speeds: 21
- spindle speed range: 5-500 rpm
- tailstock quill diameter :190 mm
- tailstock quill travel :300 mm

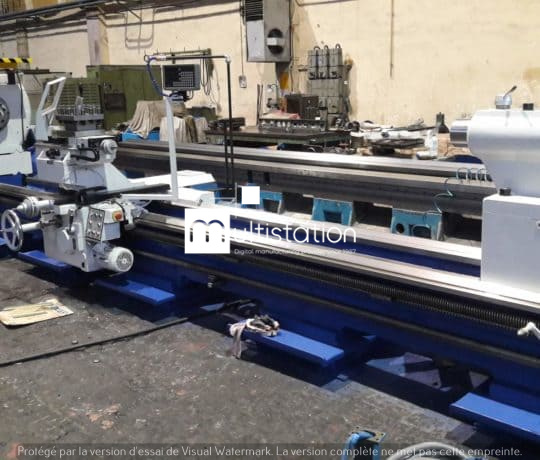

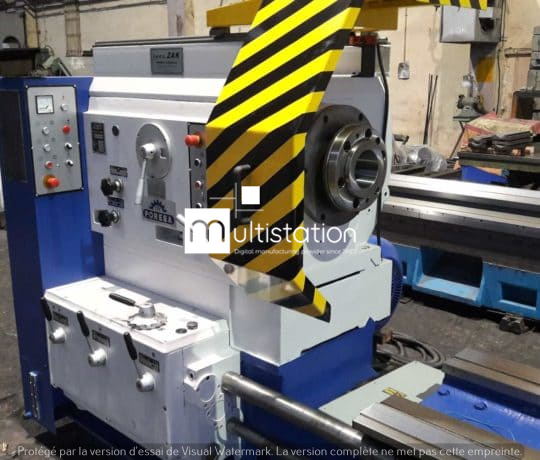

POREBA TR 135x5m
Universal Centre Lathe equipped with Digital Readout in 3 axes
No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.
The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

Validated & certified by Multistation
Type/Model : TR 135x5m
YOM : 2021
Process : Turning
Condition : Very good condition
