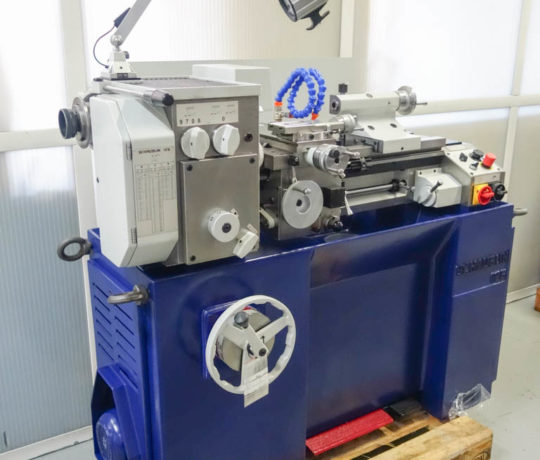

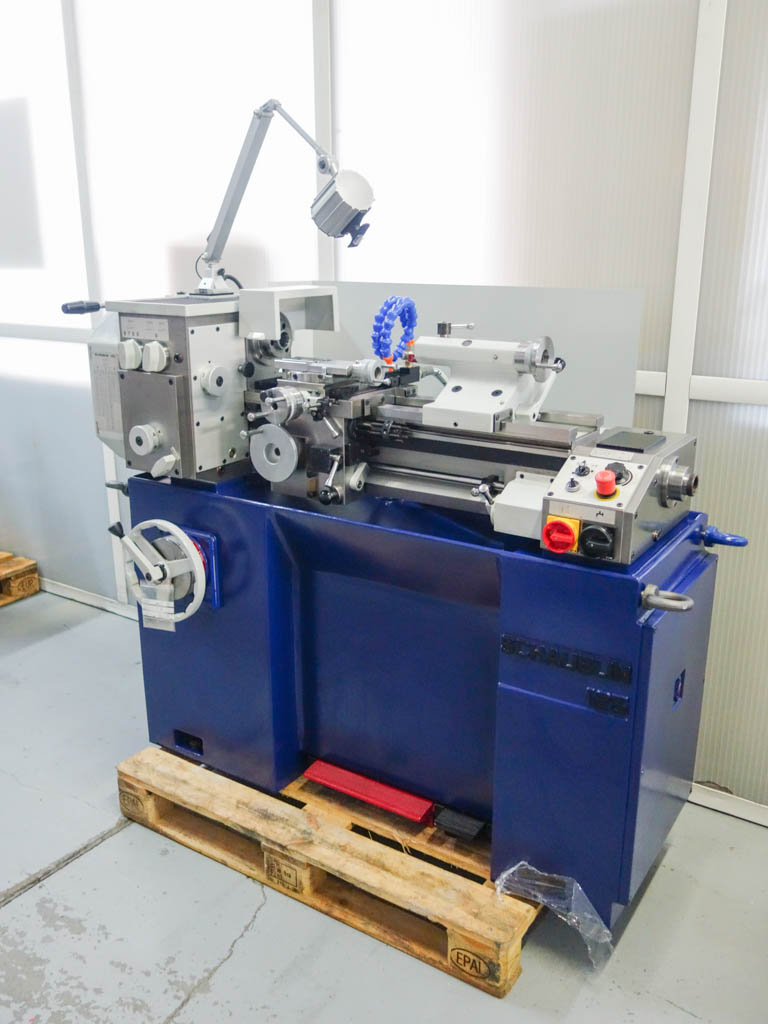

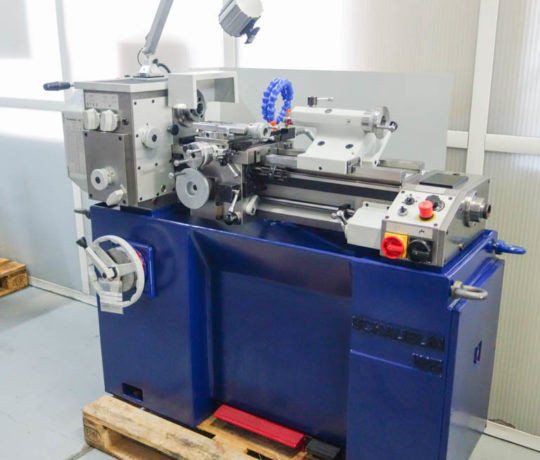

SCHAUBLIN type125-C

Manufacturer : SCHAUBLIN

Second-hand machine totally rebuilt with new painting

Reference : M180302

No responsibility whatsoever is assumed with respect to technical description, quality, dimensions, year of manufacturing and completeness of machines.

The descriptions are made under full reserve of potential errors which will be without any influence on a concluded sale

rea-securite
Validated & certified by Multistation
Do you need more information ?
Call me back
Request a quote

Technical data

Max. permissible swing over bed : 270 mm
Center height over bed : 125 mm
Maximum distance between centres : 500 mm

Headstock : CAMLOCK d 1-3″
Spindle for collets : B32
Spindle speed : 45-3000 rpm

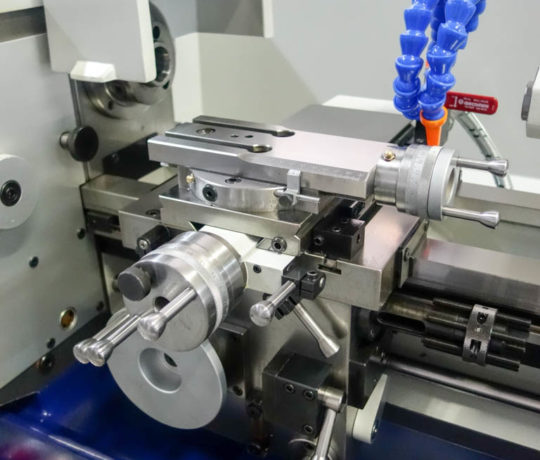

Carriage

  • range on the bed : 440 mm
  • Longitudinal range : 90 mm
  • Transversal range : 130 mm

Feed : 4-260 mm/min
Tailstock : CM 2pa

Screwcutting

  • Metric pitches : 0.25-3.5 mm
  • English pitches : 112-6 filets/1″
  • Special pitches : 0.25-8 mm

Composition

  • Universal screwcutting box
  • Lever operated quick-closing attachment

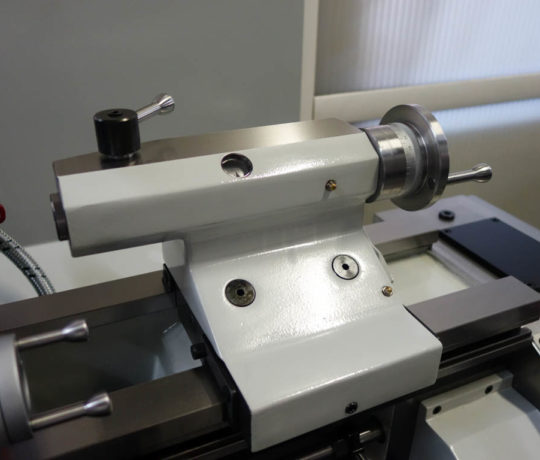

  • Starwheel operated tailstock
  • Integrated coolant system
  • Machine lamp

Process : Milling

Condition : Very good condition

Manufacturer

SCHAUBLIN
