Processing your model
- Software : Fusion 360 recommended
- File types : G code
Movement
- X axis travel : 1265 mm (49.8″)
- X max speed : 15 meters per minute (590″per minute)
- Y axis travel : 2515 mm (99.0″)
- Y max speed : 15 meters per minute (590″ per minute)
- Z axis travel : 152 mm (6.0″)
- Z max speed : 2 meters per minute (78” per minute)
- Max sheet cut size : 2470 x 1237 mm (97.24″ x 48.7″)
- Max depth of material : 152 mm (6.0″)

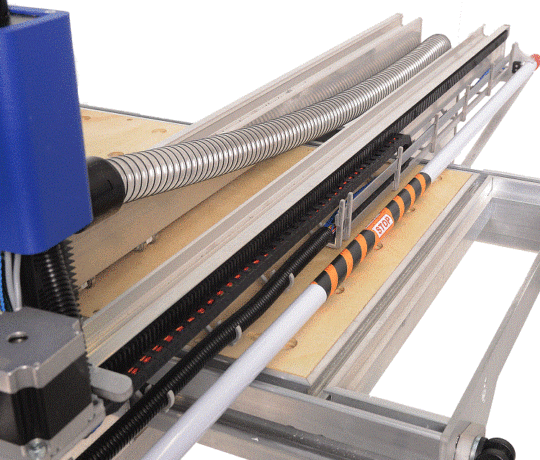

- X & Y Axis : Rack and pinion
- Z Axis : Lead screw

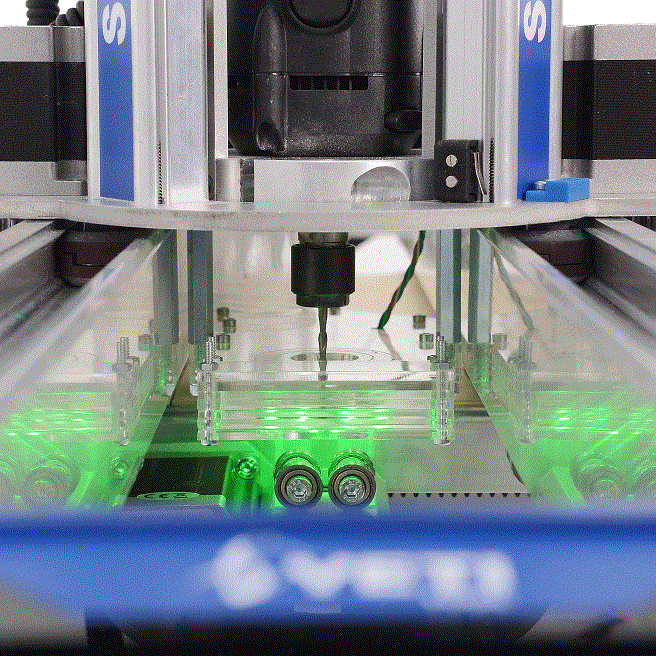

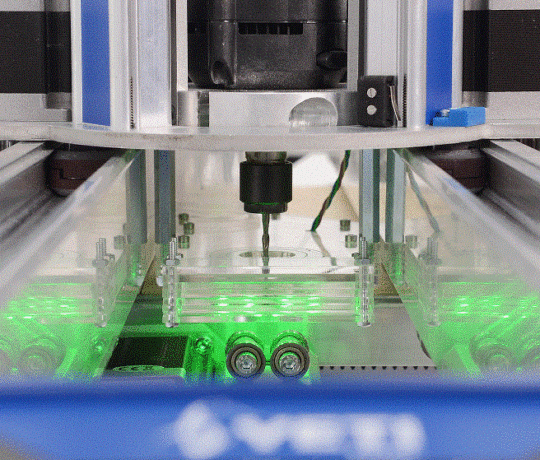

Spindle
- Speed : 5,000 – 24,000 rpm (model dependant)
- Collet : max shank 10 mm (0.394”)
Finished Part
- Accuracy : +/-0.125 mm (0.0049”)
Power requirements
- Voltage : 230v or 110v
- Power : 1400 watts
Physical dimensions
- Horizontal working
- Lenght : 2740 mm (107.9″)
- Width : 1650 mm (65.0″)
- Height : 1350 mm (53.2″)
Shipping dimensions
- Lenght : 2850 mm (112.2″)
- Width : 600 mm (23.6″)
- Height : 400 mm (15.8″)
- Weight : 65 kg (132lbs)
