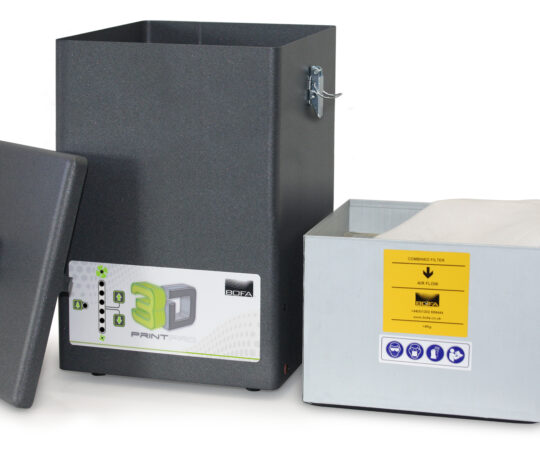

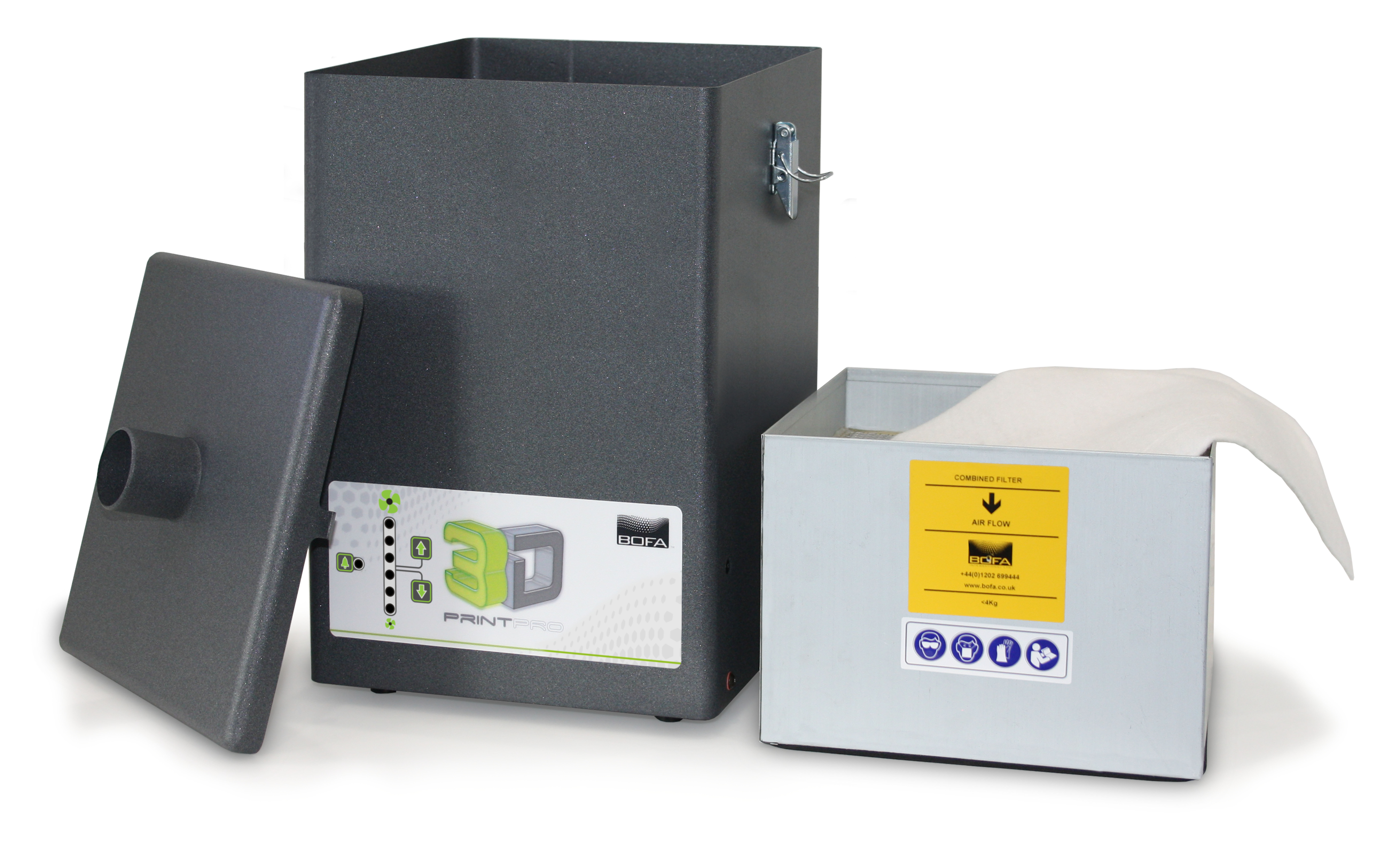

BOFA – 3D PrintPRO 3

Manufacturer : BOFA
Sectors : Fablabs, Education

The 3D PrintPRO 3 is a cost effective fume and dust extraction system designed to remove fumes and particles emitted from an open frame 3D printer, so as not to cause cooling of the filament drop zone.

Reference : BOFA3DprintPRO3
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

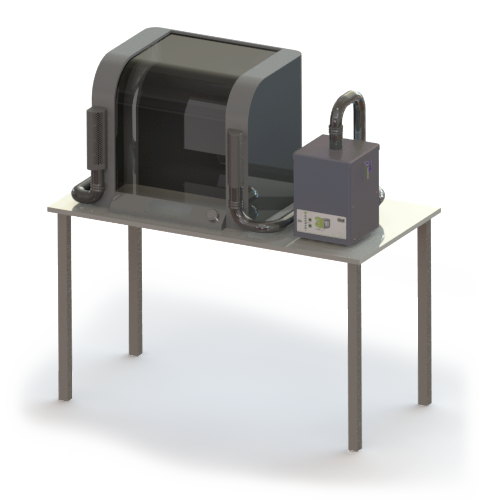

For tabletop enclosed/partially enclosed 3D printer.

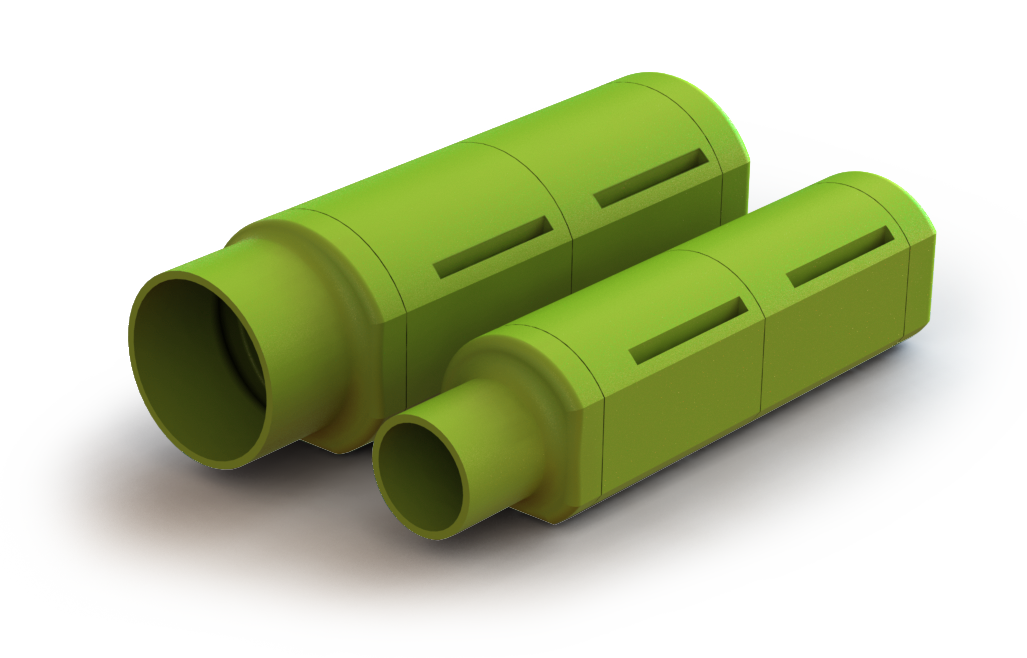

The BOFA 3D PrintPRO 3 incorporates externally mounted plenum system manifolds, which effectively captures fumes generated during the printing process and returns ultra-clean, filtered air to the operator’s breathing zone.

The BOFA 3D PrintPRO 3 has the benefits of low cost, low power consumption and integral speed control. Each filtration unit is supplied with connection hoses and ‘print your own’ manifold instructions.

Technical data

  • Dimensions (HxWxD) : 400 x 290 x 300 mm
  • Cabinet construction : Powder coated mild steel
  • Airflow / pressure : 120m³/hr / 20 mBar
  • Electrical data : 230v Single-phase 1~ 50/60Hz Full load current: 0.7 amps
  • Noise level : <57dBA (at typical operating speed)
  • Weight : 11kgs
  • Approvals : UKCA and CE

Pre-filter specifications

  • Filter media : Polypropylene, Acrylic
  • Filter media construction : Pad
  • Filter efficiency : 96% @ 2 microns

Combined HEPA / gas filter specifications

  • HEPA filter media : Borosilicate
  • HEPA media construction : Maxi pleat construction with glue bead spacers
  • Gas filter : Treated activated carbon
  • Filter housing : Zintec mild steel
  • Filter efficiency : 99.997% @ 0.3 microns

Part numbers

  • Model : 3D PrintPRO 3, Powder coated
  • Part number : L5544-0000
  • Optional 24v stop / start : A2001
