EASTMAN – Hawk : automated precision cutting system

Manufacturer : EASTMAN
Sectors : Aerospace, Automotive, Industry, Railway

Eastman’s Hawk offers high-speed, precision cutting, impressing with its functional design and concentration on the basic essentials :

  • Freely accessible work surface from all sides
  • Extremely robust traverse bridge with minimal protruding at the sides and rack and pinion drive system in all axis for slip-free drive.
  • Powerful AC-servo motors and modern CAN-Bus-steering technique enable high throughput
Reference : EASTMAN-hawk
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Simple Operation

With the easy-to-use operable Cutter Control Panel software, available in many languages, the Eastman Hawk cutters are controlled from the PC. The windows user interface offers the user all graphical information of the cutting data. The mobile control pad essential functions such as navigation or setting the origin allow an effective operation

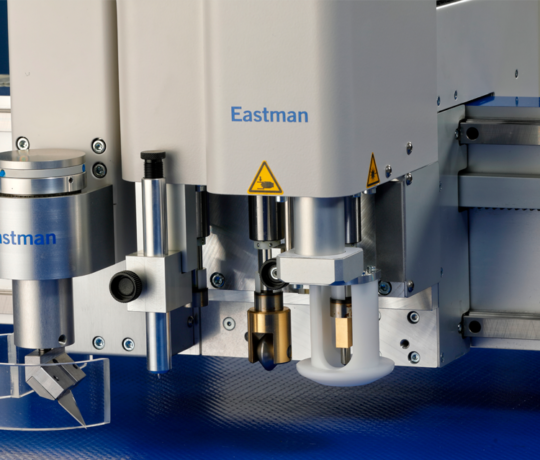

Multi-functional tool head

Combinable single and multi-functional tool heads with tangentially controlled tool holders and a large number of precision tools are available.

Vacuum technique

Up to 54 controllable vacuum zones hold even the smallest of remnants safely on the work surface.

Material clearance thickness max. 1.8 inches depending on the tool head and protective underlay
Static repeatability ± 0.02 mm/m @ 20deg C (0.008 inch @ 68deg F)
Electric – control power / PC 200-210V, 3ph, 50/60Hz, 2.6kVA
Max. cutting speed 45 in/sec (Depending on the cutter size, cutter configuration and tool head)
Max. acceleration 1.15G (Depending on the cutter size, cutter configuration and tool head)
Electric – Vacuum Blower 208/230/380/460/575V, 50/60 Hz, 8.5 HP, VFD control
Operating temperature +10 deg C up to +30degC (50F up to 86F)
Relative humidity 40 – 80% non-condensing
Maximum Acceleration 1.0 g
Disclaimer Achievable speeds and accelerations are tool-, material- and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
