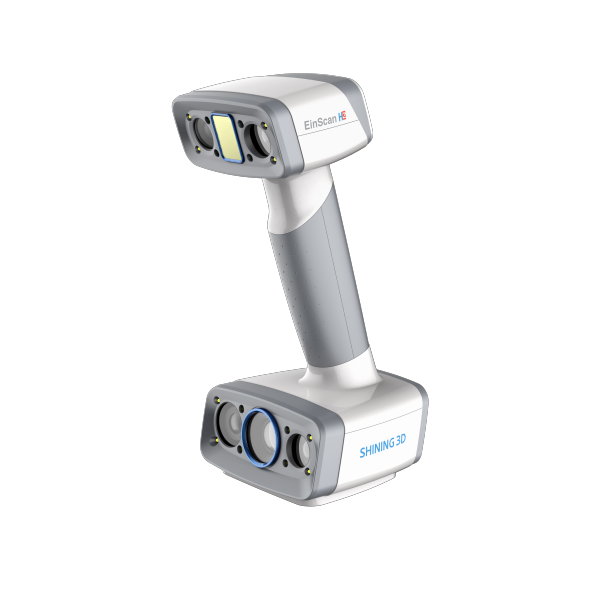

SHINING 3D – EinScan H2

Manufacturer : SHINING 3D
Sectors : Fablabs, Education, Industry, Automotive, Medical, Aerospace, Jewelry

The EinScan H2 is a versatile portable 3D scanner. It is equipped with a 5 MP camera and three VCSEL (infrared) projectors, delivering high-quality, accurate colours and textures. Its wide field of view and adjustable working distance also enable it to digitise all sizes of objects efficiently. More powerful than ever, the EinScan H2 is ideal for any professional looking for portable, efficient, colour-rich 3D scanning.

Reference : SHINING3DeinscanH2
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Scanner 3D EinScan H2

The EinScan H2 is a versatile portable 3D scanner. It is equipped with a 5 MP camera and three VCSEL (infrared) projectors, delivering high-quality, accurate colours and textures. Its wide field of view and adjustable working distance also enable it to digitise all sizes of objects efficiently. More powerful than ever, the EinScan H2 is ideal for any professional looking for portable, efficient, colour-rich 3D scanning.

  • 5 MP colour camera
  • 3 VCSEL infrared projectors
  • Accuracy of up to 0.05 mm
  • Ultra-wide field of view, high flexibility

REALISTIC TEXTURES

Capture and render vivid, rich, intense colours for ultra-realistic 3D models.

EFFICIENT IN ALL CIRCUMSTANCES

The three infrared projectors give the EinScan H2 excellent adaptability. It can scan dark surfaces and adapt to different environments effortlessly.

ONE SCANNER, TWO TECHNOLOGIES

The EinScan H2 is a hybrid equipped with two different light sources: LED and VCSEL (infrared).

  • With its LED mode, it offers fast, high-precision 3D scanning, compatible with most standard objects.
  • The infrared mode is ideal for dark surfaces, 3D body scanning and other special situations.

ULTRA-WIDE FIELD OF VISION, HIGH FLEXIBILITY

Adjustable working distance

The working distance can be set from 200 to 1500 mm, to suit all object sizes.

780 × 900 mm field of view

Its large field of view captures wider areas, enabling faster scanning.

Markerless scanning

On geometrically rich objects, the EinScan H2 can be used without adhesive markers.

OPTIMISED FOR 3D BODY AND FACIAL SCANNING

Infrared technology without flash

Invisible to the naked eye, scanning with VCSEL mode ensures a comfortable experience for the subject.

Special hair algorithm

Designed to better detect and capture hair.

Auto-motion compensation

Automatically compensates for slight movements to minimise the risk of misalignment.

Scan mode    Standard scan     Body scan Face scan
Scan
Light source White Light, visible Infra, invisible
Security LED Light (eye-safe) CLASS I (eye-safe)
Scan accuracy up to 0.05 mm up to 0.1 mm
Volumetric accuracy 0.05 + 0.1 mm/m 0.1 mm+0.3 mm/m
Scan & Align speed 1,200,000 points/s, 20 fps 1,060,000 points/s, 20 fps
Camera frame rate 55 FPS
Working distance 470 mm
Depth of Field 200 – 700 mm 200 – 1500 mm
Maximum Scan range 420 x 440 mm 780 x 900 mm
Point distance 0.2 – 3 mm 0.2 – 3mm
Built-in color camera Oui
Software
Version EXScan Pro
Output format  OBJ , STL , ASC , PLY , P3, 3MF
Compatibility Windows
Operating system
Recommend

Configuration

OS: Win10/11, 64 bit
Graphic card: NVIDIA GTX/RTX, RTX 2060 or higher
Video memory: ≥6GB
Processor: I7-11700
Memory: ≥64G
Dimension / Weight
Dimension 108 x 110 x 237 mm
Weight 731.1 g

Manufacturer

Logo Shining 3D

SHINING 3D

SHINING 3D develops, manufactures and commercializes a wide range of 3D technologies, including 3D scanners for multiple industries and applications, different types of 3D printers as well as 3D printing materials. SHINING 3D also offers through partnerships with Siemens and 3D Systems professional software from CAD design to 3D inspection and even a 3D cloud network…
