SHINING 3D – EinScan HX

Manufacturer : SHINING 3D
Sectors : Fablabs, Education, Industry, Automotive, Medical, Aerospace, Luxury

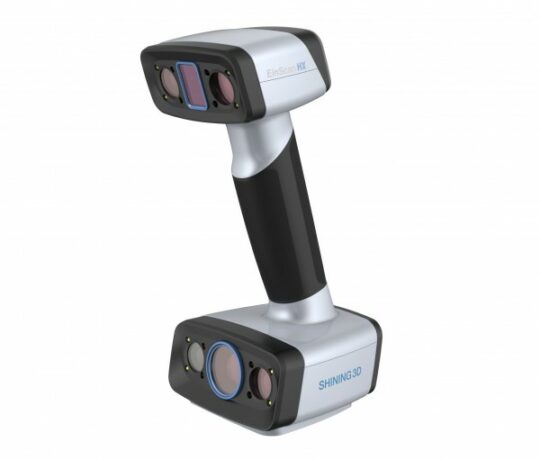

EinScan HX is a portable 3D scanner, with laser & structured light hybrid light source. This technology makes EinScan HX compatible with a wide range of object sizes and its high efficiency and reliable results make EinScan HX the 3D scanner for all uses.

Reference : SHINING3DeinscanHX
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

EinScan HX 3D scanner

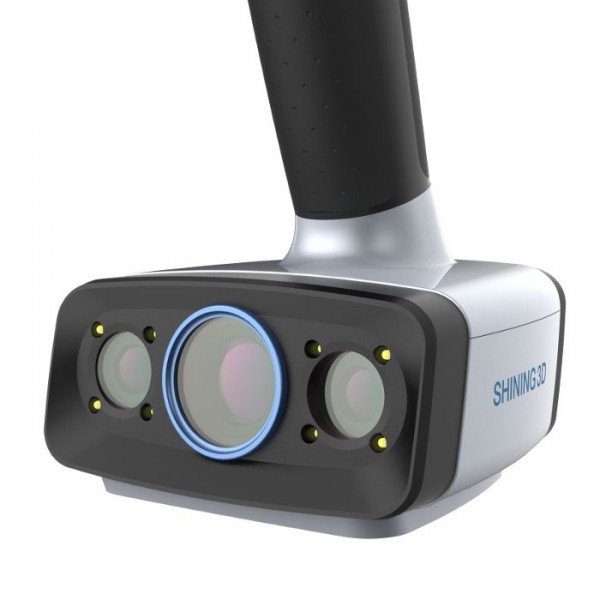

The EinScan HX incorporates blue LED light and blue laser which makes it compatible for a wide range of object sizes. The LED light enables fast 3D scanning even with complicated models in a short time, and the blue laser, less sensitive to ambient light, becomes the best choice for scanning dark or reflective surfaces. This 3D scanner has high resolution and precision, to meet the standards required by most industrial applications. It also incorporates a color camera to capture the texture details and vivid colors of the object.

HYBRID LIGHT SOURCE LASER & STRUCTURED LIGHT

The integration of blue structured light and the blue laser in a 3D scanning device considerably improves scanning with all kinds of materials or surfaces. Structured light scanning enables fast 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better results when scanning reflective surfaces and dark colors.

RESOLUTION AND PRECISION

The high resolution and accuracy of the EinScan Hx meets the needs of the majority of industrial uses in reverse engineering and measurement. Minimum distance between points of 0.05 mm Accuracy up to 0.04 mm in laser mode.

HIGH EFFICIENCY

The scanner’s processing speed in fast scan mode can be up to 1,200,000 dots/s, while the blue laser strips allow all scans to be completed in minutes for reverse engineering, CAD/CAM and printing in 3D.

PORTABLE & EASY TO USE

EinScan HX is ready to use with easy-to-use software for both novice and expert. The portability and flexibility of EinScan HX comes from its ergonomic design providing a more efficient and comfortable scanning experience.

  • Weight:710 g

COLOR

The built-in texture camera supports color data acquisition, allowing the EinScan HX to acquire high-quality color data and information about objects.

RETRO ENGINEERING PACK

EinScan HX scanner can be bundled with Solid Edge SHINING 3D Edition and Geomagic Essentials at special price with reverse engineering & design package.

Modes de scan    Rapid scan Laser scan
Scan
Light source Blue LED 7 Blue Laser Crosses
Safety Eye-safe CLASS I (eye-safe)
Scan accuracy up to 0.05 mm up to 0.04 mm
Volumetric Accuracy 0.05 + 0.1 mm/m 0.04 + 0.06 mm/m
Scan speed 1,200,000 points/s, 20 fps 480,000 points/s, 55 fps
Camera Frame Rate 55 FPS
Working distance 470 mm
Depth of Field 200 – 700 mm 200 – 1500 mm
Max FOV 420 * 440 mm 780 * 900 mm
Point distance 0.25 – 3 mm 0.5 – 3mm
Built-in Color Camera Oui
Software
Version EXScan Pro
Output formats  OBJ , STL , ASC , PLY , P3, 3MF
Compatibility Windows
Operating system
Recommended

Configuration

OS: Win10, 64 bit
Graphic card: NVIDIA GTX1080 or higher
Video memory: ≥4GB
Processor: I7-8700
Memory: ≥32G
Dimension / Weight
Dimension 108 x 110 x 237 mm
Weight 10 kg



Manufacturer

Logo Shining 3D

SHINING 3D

SHINING 3D develops, manufactures and commercializes a wide range of 3D technologies, including 3D scanners for multiple industries and applications, different types of 3D printers as well as 3D printing materials. SHINING 3D also offers through partnerships with Siemens and 3D Systems professional software from CAD design to 3D inspection and even a 3D cloud network…
