[GEFERTEC] Case study : propeller

22/10/21

PROPELLER

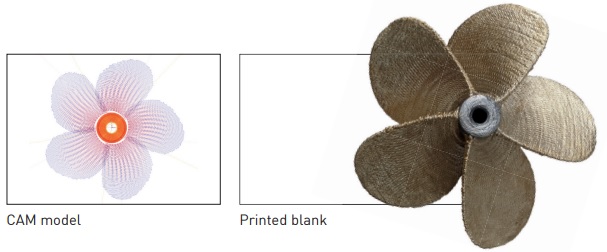

Propeller Gefertec

INFORMATION ON THE COMPONENT PART

  • Application : harbour craft propeller
  • Conventional manufacturing technology : casting process
  • Challenges :
    ▪ Long delivery time
    ▪ Poor quality of castings
    ▪ Subsequent changes can only be realized by manufacturing new moulds

ALTERNATIVES TO CASTING

MANUFACTURING WITH 3DMP® WAAM

  • Fast and fl exible procurement of the near-net shape blank as required
  • Subsequent adjustments can be easily implemented
  • Wider range of corrosion resistant materials available

MILLING FROM SOLID

  • High storage costs of wrought material
  • Long delivery times of wrought material
  • High utilization of milling centers

TECHNICAL DATA

  • Machine : arc605
  • Dimension [mm | inch] :
    Ø = 640 | 25.2
    H = 250 | 9,8
  • Material :
    Base body : 316L
    Propeller : CuAl7
  • Printing mass [kg | lb] : ca. 58.6 | ca. 26.6
  • Printing time : ca. 31 h incl. cooling time

BENEFITS OF 3DMP®

  • Lead time saving
  • Small units
  • Material savings
