3D Printers

Zortrax M200 plus

Manufacturer : Zortrax
Sectors : Education, Fablabs, Industry

The Zortrax M200 Plus is a professional 3D printer that will allow you to make your prototypes and print small series.

Reference : Z-M200-plus
1790,00 HT
2148,00 TTC

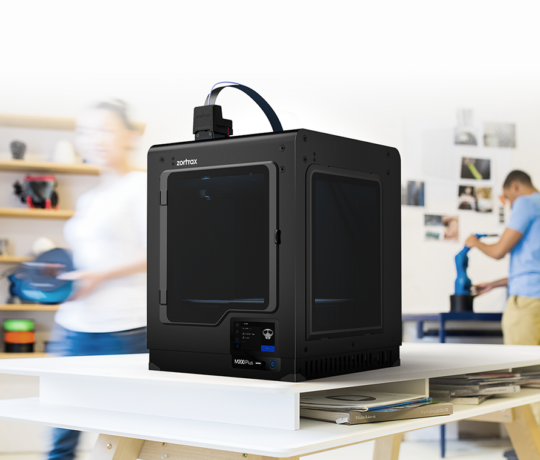

ZORTRAX M200 PLUS

This 3D printer has a powerful print volume (200 x 200 x 180 mm) and is equipped with features such as a control screen, an integrated camera, a touch screen in color, WiFi connection and end of filament detection as well as a maximum accuracy of 90 microns.

The Zortrax M200 Plus is characterized by high reliability, excellent dimensional accuracy and ease of use in a complete ecosystem, perfect for printing parts for industrial manufacturing or prototyping.

A 3D PRINTER INTUITIVE FOR PROFESSIONALS !

A few minutes are enough to launch these impressions, whether by WIFI or USB key. We will then go through its touch screen to control the machine, preview and launch 3D printing.

No need to move to your machine to print, the Zortrax M200 Plus is equipped with WIFI so you can use it remotely. Prepare your file in Z-Suite, click on print and visualize the smooth running of your print thanks to the integrated camera. You will also be able to automatically update your firmware.

PRINTING IN FLEXIBLE ON ZORTRAX, IT IS NOW POSSIBLE.

The Zortrax M200 Plus is compatible with all consumables on the market (1.75mm). With its extrusion head and steel nozzle, you can print flexible Z-FLEX filament or corrosive filaments such as wood or carbon composites.

DETECTION OF END OF FILAMENTS

The Zortrax M200 Plus has an end-of-filament detection system. Do not be afraid to use your reel bottoms, when it will no longer be fed with filaments, the Zortrax M200 Plus will automatically pause. You will then only have to insert a new reel to resume printing where it left off.

SOFTWARE Z-SUITE 2

Z-SUITE is the control software for your 3D printer. Developed by Zortrax, it is simple, intuitive and updated regularly.

It will allow you to configure your stl files simply and launch your printing in a few clicks thanks to the use of the options proposed by default. You can even go even further through a range of advanced options.

It is available on Mac and PC.

KEY POINTS

  • Maximum accuracy of 90 microns
  • Integrated control camera
  • Color touch screen
  • End of filament detection
  • WiFi connection

TECHNICAL SPECIFICATIONS

PHYSICAL DIMENSIONS

  • Dimensions without bobbin : 348 x 362 x 503 mm
  • Dimensions with bobbin : 348 x 430 x 503 mm
  • Weight : 22 kg

IMPRESSION

  • Technology : FDM (filament deposition)
  • Print volume : 200 x 200 x 180 mm
  • Advanced resolution : 90 – 390 microns
  • Diameter of the filament : 1.75 mm
  • Diameter of the nozzle : 0.4 mm in diameter
  • Speed : up to 150mm / second
  • Compatible Materials : Z-FLEX, Z-PLA PRO, Z-ASA PRO, Z-ESD, Z-ABS, Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-PCABS, foreign filaments.

TEMPERATURES

  • Extruder temp. max. : 290 ° C
  • Printing surface temp. max. : 105 ° C
  • Ambient temperature: 20 – 30 ° C
  • Storage temperature: 0 – 35 ° C

SOFTWARE

  • Version: Z-suite 2
  • Supported files: .stl, .obj, .dxf, .3mf
  • Compatible: Mac OS X, Windows 7 and above
  • Connectivity: WI-FI, ethernet, USB

CONSUMPTION

  • AC input: 240 [V] AC, 50/60 [Hz] / 110 [V] AC, 50/60 [Hz]
  • Consumption: 320 W

CONTENT OF THE ORDER

  • Zortrax M200 Plus 3D Printer
  • Reel of Z-ULTRAT
  • Heating tray
  • Side panels
  • USB key
  • Starter kit (scissors, gloves, spatula)
  • Z-Suite Software



Pack standard (included)

  • Access to the hotline during the warranty period, from 9 : 00 am to 5 : 30 pm
  • Machine builder warranty for spares (except wear and tear parts + consumables)
  • After Sale Service : reparation and labour costs included during warranty period (machine has to be sent back by the customer (customer charge))
  • If the machine needs to be repaired at customer site, travel expenses are charged to the customer.

Pack Serenity 350,00

  • All conditions of STANDARD are applicable
  • Priority hotline during warranty period
  • Multistation Warranty 1 year (standard exchange after technical analyse)
  • After Sale Service : Transportation fees included if machine is sent back to our workshop
  • Service visit included (1/year), travel expenses included (only applicable for France)

Pack Premium 900,00

  • All conditions of SERENITY applicable
  • Priority hotline for 2 years after machine delivery
  • Machine loan in case the machine is being repaired and not usable
  • Multistation Warranty 2 years (standard exchange after technical analyse)
  • Service visit included (1/year during 2 years), travel expenses included (only applicable for France)

Manufacturer

Logo Zortrax

Zortrax

Zortrax is a Polish company which delivers comprehensive solutions for the 3D printing industry. It is also one of few producers offering the printer together with dedicated software and specially developed printing materials. Zortrax has developed technology designed for rapid prototyping. Zortrax was founded by Rafal Tomasiak and Marcin Olchanowski.…
