ZORTRAX | Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

31/01/23

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

Summary

  • RM Motors, a manufacturer and a global provider of car exhaust systems has two Zortrax Endureal industrial 3D printers in their machine park.
  • They have used Zortrax Endureal to customize the roll press in their workshop, which helped facilitate the production process and reduce time.
  • Zortrax Endureal is also used for production of large-sized prototypes, essential in manufacturing processes in the automotive industry.

RM Motors is a Polish company manufacturing performance cars’ exhaust systems, which distributes its products globally. Having started from downpipe and sport muffles production, the company quickly evolved to extend its offer with catalysts, catalyst inserts, exhaust systems tips and various other accessories for modifying exhaust systems. RM Motors’ headquarters, located in Olsztyn, Poland, includes a well-equipped machine park, where one can find, amongst others, CNC machines, welding robots, pipe benders, scanners, and two Zortrax Endureal industrial 3D printers.

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

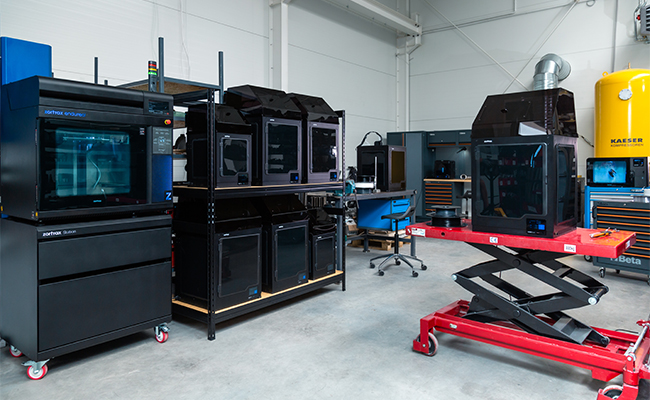

An example of 3D printer machine park in an automotive company

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

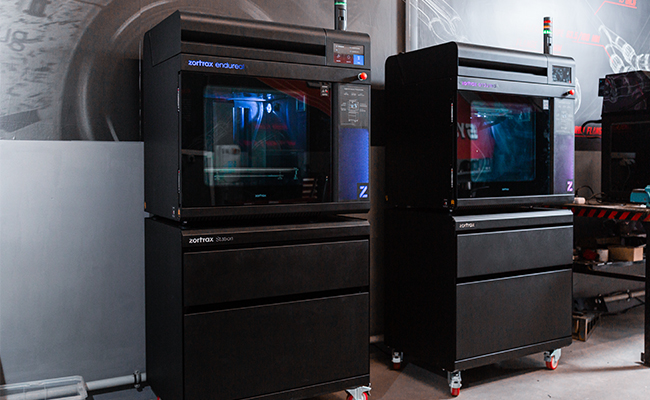

Two Zortrax Endureal 3D printers are used by RM Motors to upgrade other machines in their production hall

What Zortrax Endureal is Used for in Automotive

3D printers play a significant role in manufacturing end-use parts for cars with the use of specialized materials, but their applications in the automotive industry do not end there. They can be successfully applied to upgrade specialized machines as well, and this is exactly what RM Motors have used Zortrax Endureal for. They have 3D printed two parts, which serve the roles of key machine components: a die and a stamp, used in the process of stamping thermal insulation. The material for this purpose was Zortrax Ultrat, a highly durable ABS-based 3D printing filament. It is suitable for automotive industry as well as various engineering applications, as it stays unaffected by high temperatures and impacts. Hence, extensive, demanding tests, conducted in adverse environments can be conducted with Zortrax Ultrat.

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

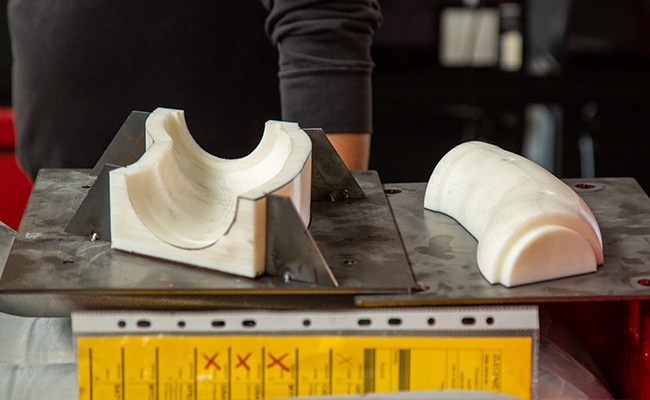

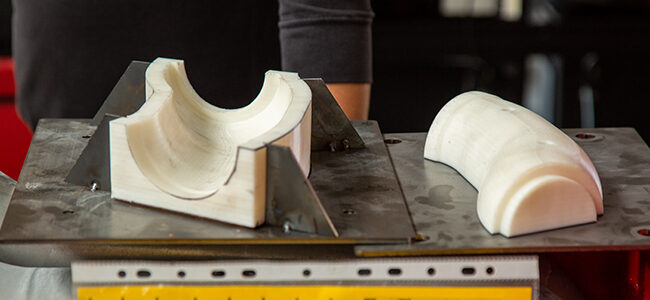

The two parts 3D printed on Zortrax Endureal industrial 3D printer to upgrade a roll press in the automotive workshop: a die and a stamp.

Before implementing 3D printing technology into their business, the company had to rely on milling, which has more design constraints and is more expensive than additive manufacturing. Introducing 3D printers helped solve these issues. Having Zortrax Endureal in their workshop allows the team to obtain nearly all stamp shapes imaginable at any time and guarantees lower material consumption compared to standard manufacturing methods. Thanks to this, the process and production time has been streamlined and now depends only on the workshop employees.

Stamping Thermal Insulation for Automotive Purposes with 3D Printed Parts

Once RM Motors engineers upgraded the roll press with 3D printed elements, they could move on to stamp thermal insulation on-the-spot, and they can now do it whenever need be. Now, what does such a process look like, step-by-step?

  1. First, the engineer places a 3D printed die and a stamp in a proper place of a roll press.
  2. Then, the insulation is put in beetwen the 3D printed items.
  3. The upper part of the machine goes down, putting much pressure on the insulation, thus stamping the desired shape on it.
  4. The worker obtains thermal insulation of the desired shape.

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

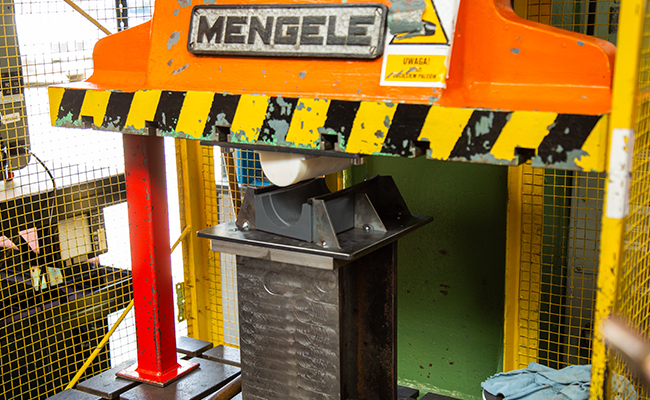

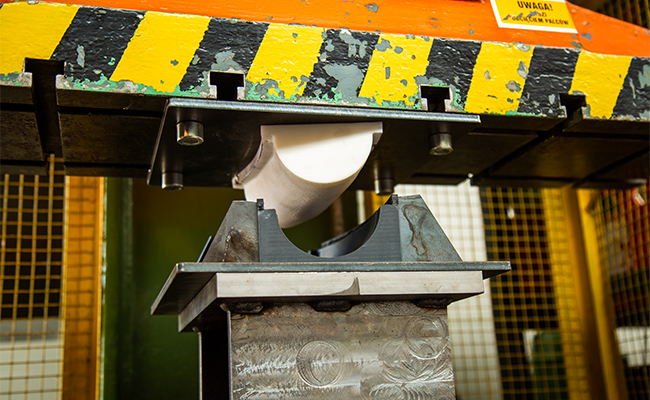

The rool press in RM Motors’ production hall with the mounted 3D printed elements.

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

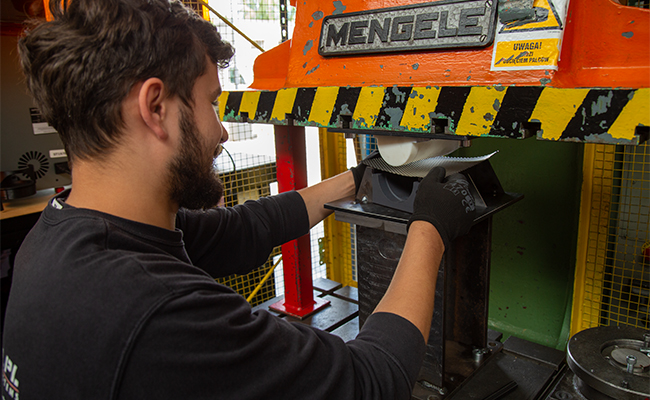

The engineer carefully placing insulation in between the die and a stamp in the machine

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

The upper part of the machine lowers and stamps a desired shape on the insulation in between the 3D printed parts.ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

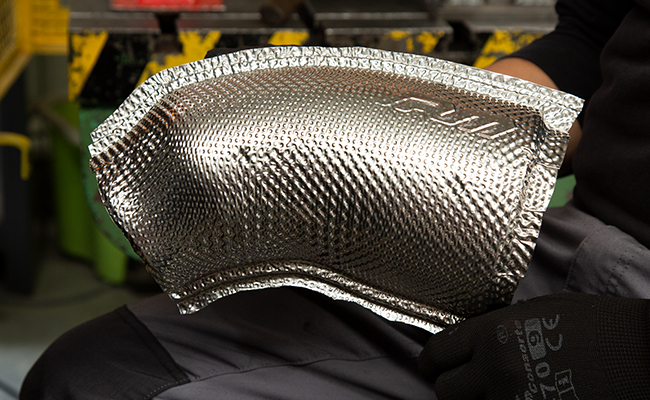

The engineer obtains a target insulation with a desired shape.

Thermal insulation is a practical solution, which solves two main problems: climate control inside a vehicle and heat-related issues under the hood. With this solution, the owner has control over the temperature in the automobile – the insulation helps reduce the impact of the hot sun in summer and provide more warmth in the car in winter. Thermal barriers are also used to prevent engine and exhaust heat from coming through the firewall and floorboards.

ZORTRAX - Automotive Plant Uses Zortrax Endureal to Upgrade Its Machines

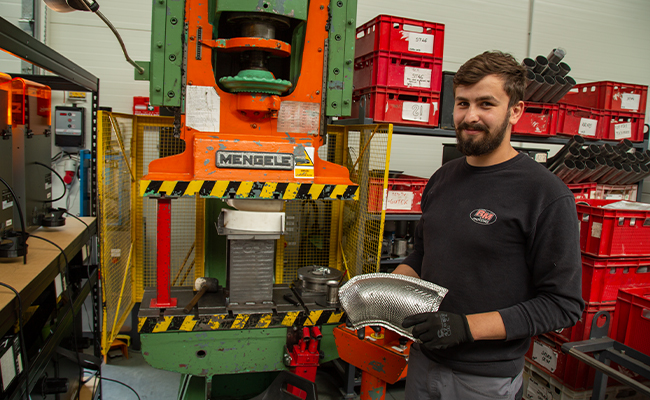

The target thermal insulation stamped with roll press customized with 3D printed die and stamp, featuring RM Motors’ logo.
