Goal : make a die for sheet metal forming that bears 400 bar pressure
Helicopter factory needs a mold for sheet metal forming. The die must bear 400 bar pressure.
Plywood’s — traditional material — lifespan is too short. The metal die would work longer but costs significantly more.

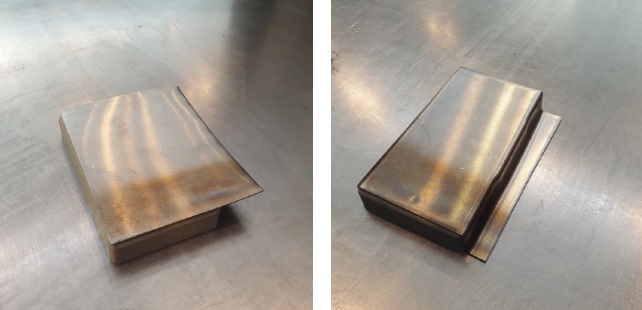

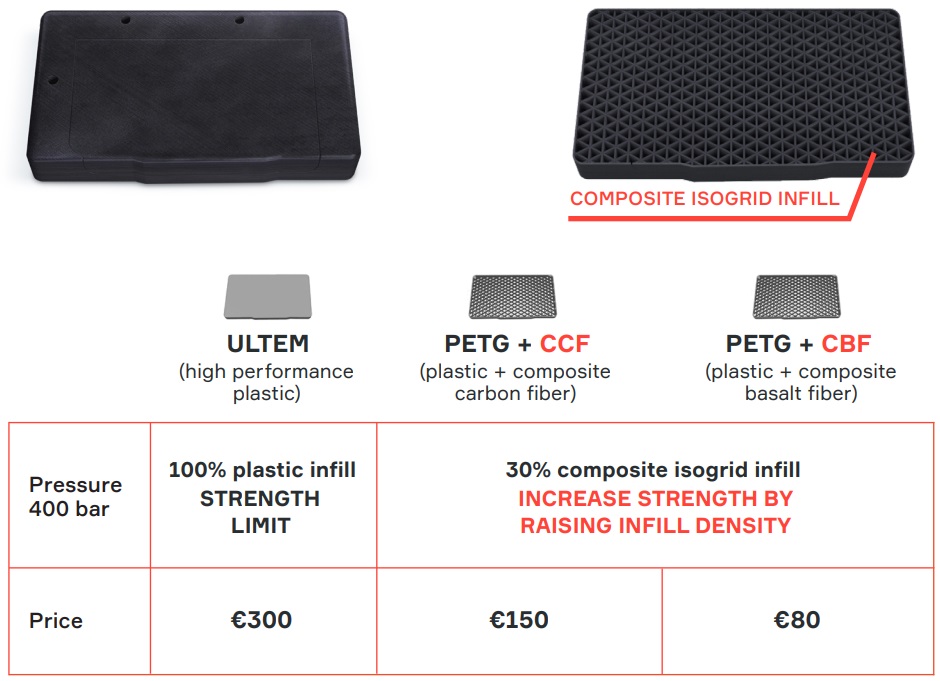

The best option to extend a lifespan and reduce costs is to print a die with continuous composite fiber on Anisoprint Composer 3D printer.
Anisoprinting technology reduces costs 2-4 times while raising durability.
