FINEPART – Finecut 500 II : Waterjet Machining Center

Manufacturer : Finepart
Sectors : Aerospace, Automotive, Industry, Medical

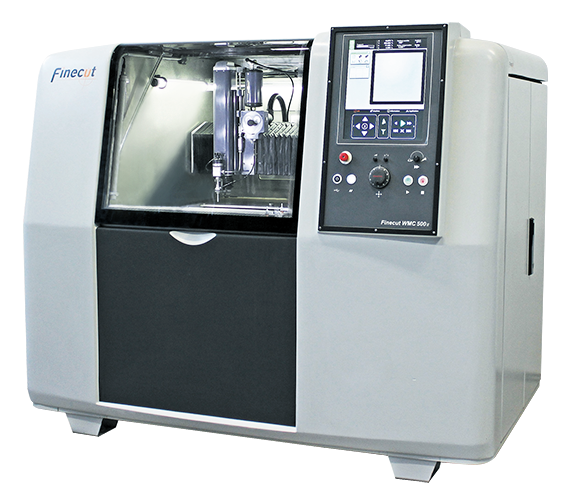

The Finecut WMC 500 II is a new generation of precision machine tool using waterjet technology. the envelope size is 500 x 500 mm.  The machine has a conceptual design that differs from traditional waterjet cutting tables in order to optimize accuracy. In the Finecut machine the work is clamped to the machine work table being mechanically coupled to the motion system. The catcher tank used to dissipate the jet energy after cutting is separated from the work table structure in rubber suspension to minimize the influence of vibration.

Reference : FINEPARTfinecut500II
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Best micro abrasive waterjet machining center in the world

Finepart’s new generation of non-thermal micro abrasive waterjet machining center, the world leading Finecut WMC500II, is built by state-of-the-art components to provide capability for your ultimate precision cutting. The small footprint and encapsulated design make it suitable for any type of workshop environment alongside other CNC machines and sensitive equipment.

Standard Finecut machine configurations

Premium 3-axis system

  • Cutting width down to 0.2 mm
  • Designed for ultimate precision
  • Highly dynamic and fully encapsulated motion system
  • Flexible fixtures for different applications
  • Intuitive HMI
  • Easy set-up. Easy to operate. Easy to service.

FINECUT WMC500II TYPE 4X

Precision with rotating work piece

  • 4 axes working synchronously
  • Cutting width down to 0.2 mm
  • Live fixturing for cutting part from different sides
  • Rotates workpiece synchronously with cutting
  • High inclination angles
  • Utilizes 5-axis control with tool center point function
  • All functionality of the Finecut WMC500II type 4X

FINECUT WMC500II 5 AXIS TYPE ABX

For fast cutting without taper

  • Cutting width down to 0.2 mm
  • 5-axis cutting with tool center point control
  • Boosts productivity with taper angle control
  • Corner optimization by jet motion strategy
  • All functionality of the Finecut WMC500II type 3X included

FINECUT WMC500II 5 AXIS TYPE B4X

For ultimate flexibility

  • Cutting width down to 0.2 mm
  • 3 dimensional cutting
  • 5-axis cutting with tool center point control
  • High inclination angles and complex shapes
  • Perfect for prototyping

Retrofitable options to all our machines

Finepart Sweden continuously develop new optional features in cooperation with our customers. You can always take part of the latest technology as we have the policy that all new options will be retrofittable to all machines in the Finecut WMC500II series. Options that are ordered with a new machine will be assembled with the machine and does not have any extra installation cost.



FINECUT WMC500II TECHNICAL INFORMATION

  • Controller : FANUC 31i-B5
  • Absolute encoders : Thermically stable Invar® linear encoders, 50 nm resolution

AXES MOTION

  • Linear servo motor drive on X-Y
  • Precision ballscrew servo drive on Z
  • Max cutting speed: 20 m/min
  • Max traverse speed: 40 m/min
  • Acceleration: 0.5g (X, Y axes)
  • Positioning accuracy*: +/- 2,5 µm
  • Repeatability*: +/- 2 µm

*For measuring of accuracy we are following ISO230-2

WORK AREA

  • Cutting envelope (XYZ) : 500 mm x 500 mm x 80 mm
  • Fixturing area : 700 mm x 700 mm (max depth 700 mm)
  • Machine table size : 900 mm x 1200 mm (W x D).
  • Back door allows inserting longer work pieces.

CUTTING SYSTEM OPTION

  • Fine Abrasive Waterjet: 0.2 mm, 0.3 mm
  • Abrasive Waterjet: 0.4 mm, 0.5 mm
