POLYSHAPER – Graent

Manufacturer : Polyshaper
Sectors : Fablabs, Education

The PolyShaper Graent is a top-of-the-range hot-wire cutting machine designed for professionals and semi-professionals who want to work on foam panels with a high degree of precision.

Reference : Polyshaper-Graent
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

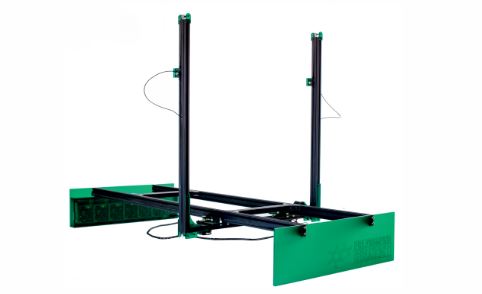

The Graent PolyShaper

The PolyShaper Graent is a professional-quality hot-wire cutting machine specially designed to meet the requirements of the most demanding users in the creative, craft and manufacturing sectors. Designed for professionals and semi-professionals alike, it can cut lightweight materials such as expanded polystyrene (EPS) and extruded polystyrene (XPS), widely used in the design, decoration and prototyping sectors, with great precision.

Thanks to its large working surface and its ability to cut foam blocks up to 60 cm thick, the Graent is ideally suited to the creation of complex set designs, artistic volume sculptures, relief lettering, event decorations, or even models and prototypes for industrial or architectural projects.

Its robust construction, intuitive control software and multi-platform compatibility (Windows, macOS, Linux) make it a versatile, reliable and accessible tool, even for users without advanced technical skills. This makes it an ideal solution for anyone looking to combine cutting quality, ease of use and production efficiency.

Polyshaper

  • Working area: 120 × 60 cm
  • Maximum cutting thickness: up to 60 cm
  • Maximum cutting speed: 1,000 mm/min
  • Maximum speed without load: 2,000 mm/min
  • Dimensions: 144 × 73 × 71 cm
  • Weight: 10 kg
  • Control software: included, compatible with Windows, macOS and Linux
  • Assembly: pre-assembled in two parts
  • Power supply: 230/100 V, 50/60 Hz
  • Cutting wire: 0.2 mm Kanthal alloy

Manufacturer

Polyshaper

Polyshaper

PolyShaper is an Italian company founded by GIPAT Srl and based in L’Aquila. It specializes in the design of CNC hot wire machines for cutting polystyrene. PolyShaper machines are manufactured in Italy and delivered pre-assembled, ready to use with their own software ShaCo, simple and intuitive. They are designed to…
