POLYSHAPER – Oranje

Manufacturer : Polyshaper
Sectors : Fablabs, Education

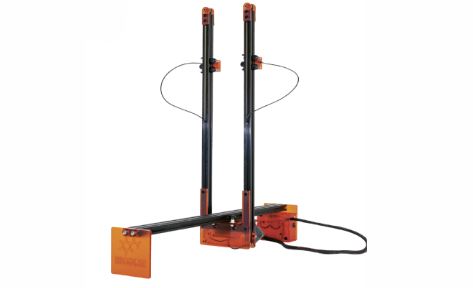

The Polyshaper Oranje is a compact, easy-to-use polystyrene cutting machine that is both reliable and precise.

Reference : Polyshaper-oranje
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

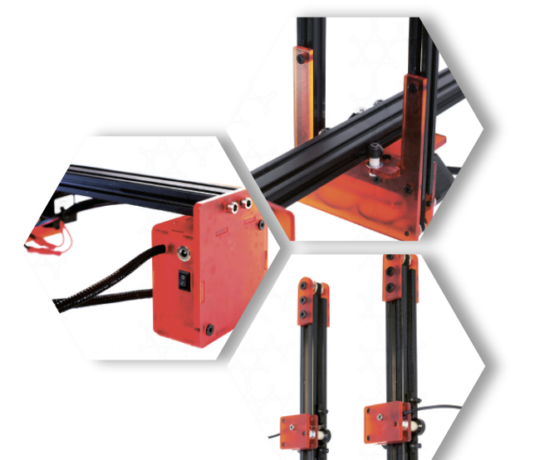

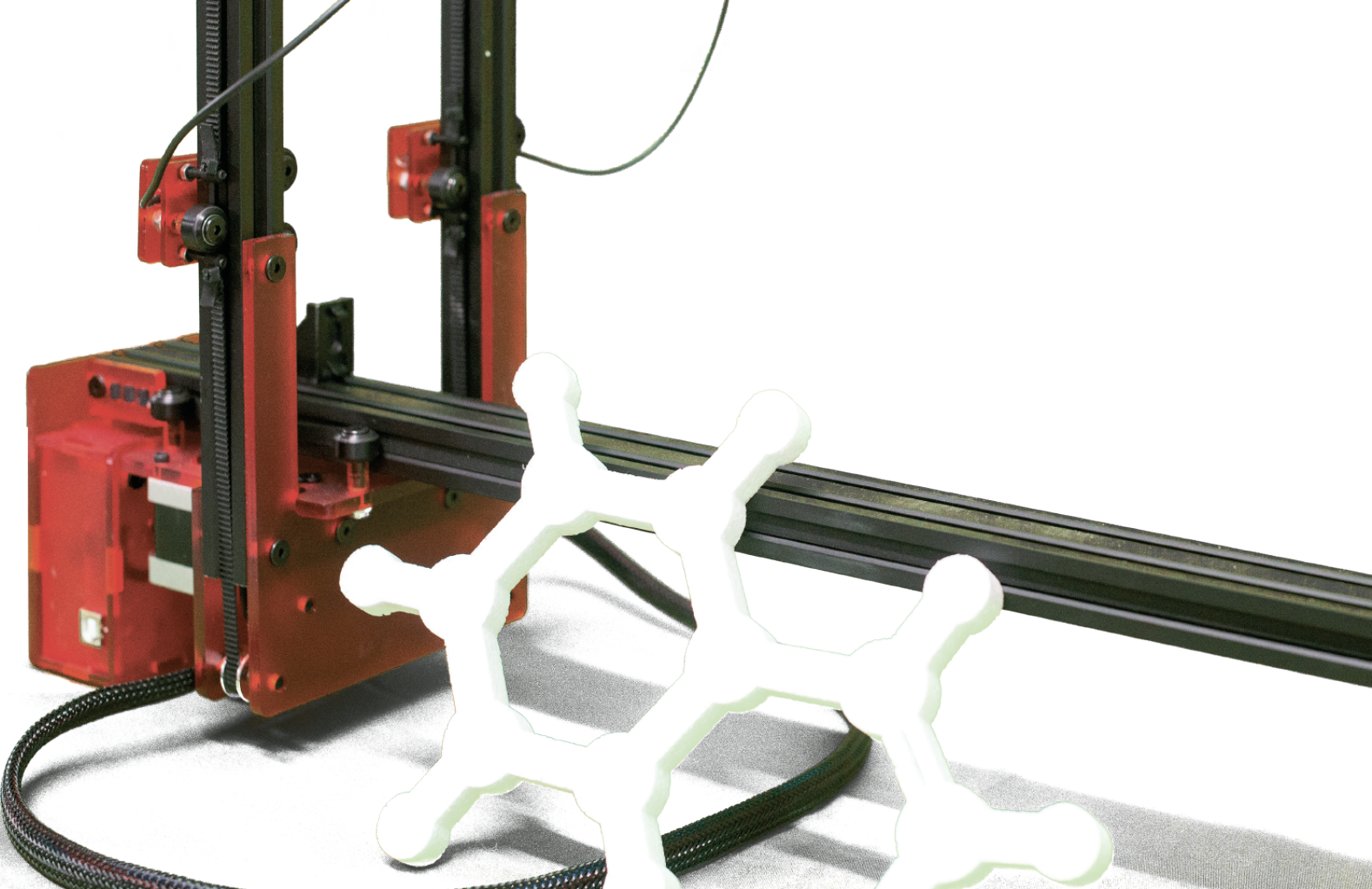

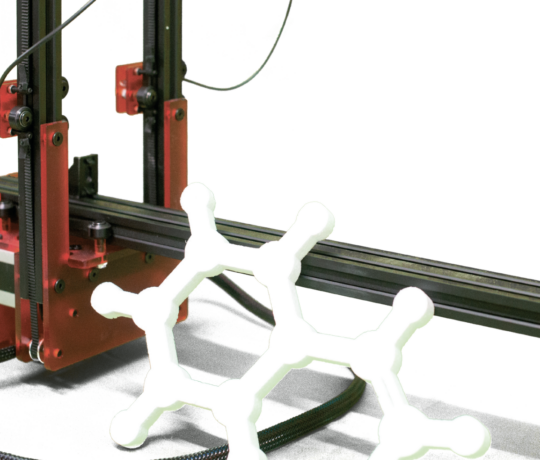

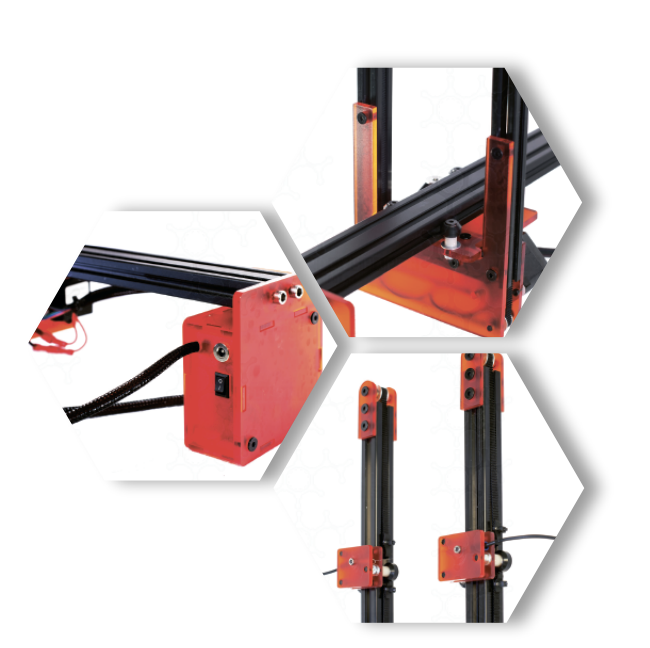

The Oranje PolyShaper

The Oranje PolyShaper is a compact, accurate hot-wire cutting machine, ideal for hobbyists, makers and small businesses working with expanded polystyrene (EPS), extruded polystyrene (XPS), Depron, EVA rubber, expanded polyethylene and similar foams.



Included in the kit:
  • Oranje PolyShaper machine
  • Design and control software
  • 2 metres of spare wire
  • Power cable with EU plug
  • Polystyrene samples





Polyshaper

  • Working area: 50 x 50 cm
  • Maximum cutting thickness: 5 cm
  • Maximum cutting speed: 1000 mm/min
  • Maximum speed without load: 2000 mm/min
  • Resolution: 0.5 mm
  • Dimensions: 66 x 66 x 16 cm
  • Weight: 3 kg
  • Power supply: 230/100 V, 50/60 Hz
  • Compatible operating systems: Windows, macOS, Linux
  • Cutting wire: nickel-chromium alloy 8020, diameter 0.12 mm
  • Software included: yes, for machine design and control
  • Assembly: pre-assembled in two parts

Manufacturer

Polyshaper

Polyshaper

PolyShaper is an Italian company founded by GIPAT Srl and based in L’Aquila. It specializes in the design of CNC hot wire machines for cutting polystyrene. PolyShaper machines are manufactured in Italy and delivered pre-assembled, ready to use with their own software ShaCo, simple and intuitive. They are designed to…
