YETI TOOL – Smartbench PrecisionPro +

Manufacturer : Yeti Tool
Sectors : Education, Fablabs, Industry

Intelligent CNC milling is now accessible to everyone thanks to the Smartbench PrecisionPro+, a mobile, intuitive and smart large-format CNC to perform any type of application with ease.

Reference : YetiToolSmartBenchPrecisionPro+
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

CNC machine with smart features

The Precicionpro+ innovates by integrating the Yeti Pilot feature allowing it to perform machining at adaptive speed. This means that the machine is able to speed up or slow down depending on the load on the spindle motor. To do this, YetiPilot listens to the spindle motor 50 times per second in order to identify the load on it. If too much load is identified, the feed rate is reduced and when a low load is detected, the feed rate increases.

This new feature will delight both novice and pro users.

Beginners will no longer have to worry about setting the wrong machining datas. Launching their projects safely without damaging their material, cutter and machine is now possible without any difficulty.

More experienced users will benefit, in addition to this gain in spindle and cutter lifetime, from a saving in production time.

A versatile and nomadic CNC

The Smartbench Precision Pro+ can mill a multitude of materials such as hard or soft wood panels, MDF, plywood, different plastics and composites and even aluminum and other soft non-ferrous metals.

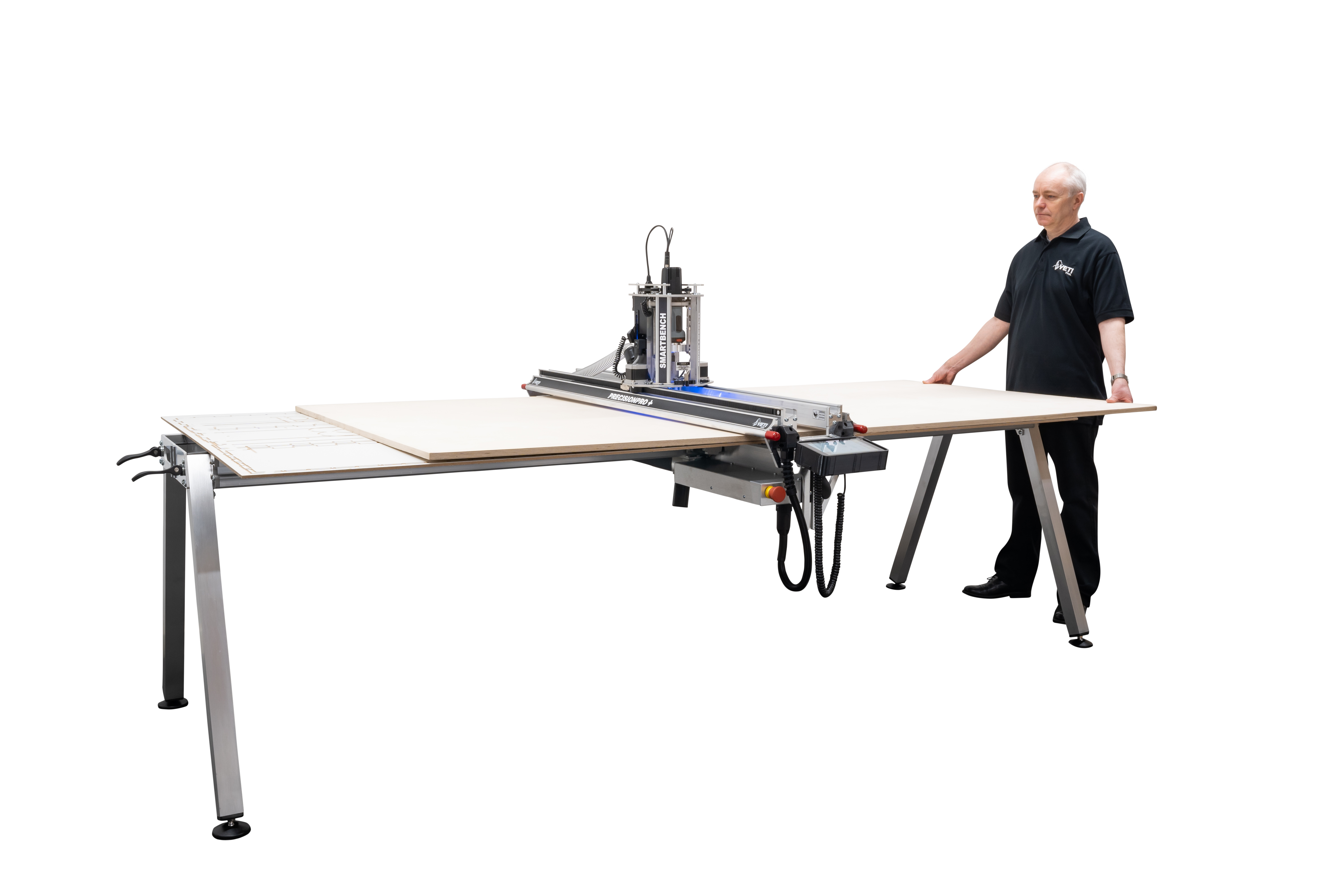

This CNC will be able to cut on large surfaces of 2500×1250 mm while being discreet in your workshop due to its small footprint and the possibility of dismantling it for storage.

Thanks to its ingenious system of rollers which flatten the panels to be machined on the table of the machine, the Smartbench Precision pro+ can easily mill on the panel to be machined and therefore limit or even completely eliminate the use of tabs, which then allows you to have very clean edges on your parts.

Dismantled and reassembled in less than 5 minutes by a single person, the PrecisionPro+ is very nomadic and can easily fit into your utility vehicle or your van.

Its price is very attractive for Fablabs, the education sector, small artisan workshops, home, boat and van fitters, carpenters and much more, making it the ideal ally for any type of project.

The ideal machine for beginners in CNC milling

It has never been easier to start production with the Smartbench Precision Pro+, easy to use and intuitive thanks to its many features.

The Shapecutter interface allows you to cut simple shapes directly via the machine’s touch screen.

For more complex files, design yours on any CAD/CAM software.

Start the production of your designs with ease thanks to the touch screen and the very intuitive features.

Effortlessly place your XY datum with the laser pointer and your Z with the built-in probe in the machine. All these features allow easy handling of the machine for novice users. But it will also delight more experienced users as these features save time.

The new YetiPilot feature allowing any user to get started with CNC in just a few minutes without having to worry about feeds and speeds data, YetiPilot will automatically correct your errors by adjusting the forward speed.

Gain efficiency with the Smartbench Precision Pro+

Focus on other tasks while Smartbench does the cutting for you. Realize a gain in productivity thanks to the possibility of working on site.

Intelligent adaptive speed machining will save you considerable time, for optimal productivity.

Smartbench Precision Pro+, much more than a machine, an ally for your business.

A wide choice of compatible materials

Cut all kinds of materials, so that each project is unique. The Smartbench Precision Pro+ is versatile and will allow you to cut all types of wood (hard or soft), MDF and plywood panels, composite panels (Dibond, Corian, etc.), plastics, (Polycarbonate, PMMA, PVC, etc.) , technical foams (expanded PVC, EVA foam, etc.), and even aluminum (and other soft non-ferrous metals).

And for your safety

The Smartbench PrecisionPro+ is compatible with European safety standards. Its features including emergency stop, stop bars along the X axis, vacuum bell and fully enclosed cutter work area as well as spindle retraction in case of anomaly detected by the machine during machining allows users to be safe.

Movements

  • X axis: 1265mm
  • Max travel speed X: 6m/minute
  • Y axis: 2515mm
  • Max travel speed Y: 6m/minute
  • Z axis: 152mm
  • Maximum travel speed Z: 2m/minute
  • Maximum cutting surface: 2500 x 1250mm
  • Movement in X and Y: Pinion and rack
  • Movement in Z: lead screw

Electrical features

  • Voltage: 230V
  • Power 1400 Watts
  • Software compatibility: All CAD/CAM software with GRBL post processor    File types: nc. Or gcode.

Spindle

  • Rotation speed: 5000 to 25000 rpm
  • Speed ​​Control: Digital
  • Automatic spindle stop: yes
  • Power: 1000 w
  • Collet: ER16 – max 10mm
  • Finished part accuracy: +/-0.5mm or better

Dimensions of the machine

  • Length: 2740 mm
  • Width: 1650 mm
  • Height: 1350 mm
  • Weight: 100 kg

Package Details

Number of packages: 4

Dimensions and weight of packages:

  • 1 : 2705 mm x 103 mm x 540 mm, 47 kg
  • 2 : 1105 mm x 315 mm x 285 mm, 14 kg
  • 3 : 540 mm x 340 mm x 370 mm, 12 kg
  • 4 : 1645 mm x 360 mm x 410 mm, 30 kg
