EXONE - H-13-Cup-Mold-7543

3D printed tools for plastic injection molding, thermoforming, composite layup, sacrificial tooling and metalcasting. Get complex final parts in days versus weeks and months.

With X1 Tooling, manufacturers now have fast, affordable, and local tooling options for the final production of metal, plastic, and composite designs

KEY FEATURES AND BENEFITS

  • Speed: Binder jet 3D printed tools can often be produced in days versus weeks and months
  • Cost: Most of our tooling options are cost competitive or offer a cost advantage over traditional tooling options
  • Performance: Whether it’s reducing cycle time with conformal cooling channels or exploiting generative design concepts, 3D printed tooling can also offer performance benefits in final parts not easily achieved with traditional tooling

NORTH HUNTINGDON, Pa.–(BUSINESS WIRE)–The ExOne Company (Nasdaq: XONE), the global leader in industrial sand and metal 3D printers using binder jetting technology, today launches the broadest portfolio of industrial-grade 3D printed tooling available — offering new solutions for plastic injection molding or forming, laying up composites, casting metals, and more.

Already the global leaders in selling binder jet 3D printers for sand molds and cores for metalcasting applications, ExOne is expanding its tooling portfolio following the previously announced acquisition of assets from Freshmade 3D as well as successful testing of new 3D printed metal tooling options with global manufacturing customers.

New X1 Tooling products will be on display next week at Chicago’s McCormick Place during Rapid + TCT, North America’s largest and most influential additive manufacturing event. ExOne will be located in booth E7613.

“Today’s launch of the X1 Tooling portfolio is the direct result of strong customer demand for tooling options that speed up delivery times and bring tooling closer to the point of final production, wherever that is for them,” said John Hartner, ExOne’s CEO.

“As the COVID pandemic has continued disrupting supply chains, we’ve had more and more manufacturers ask us: ‘Can you 3D print tooling?’ Today, we’d like the market to know that the answer is yes — we can help de-risk your supply chains and make them more sustainable, with less shipping and other forms of waste. Our new tooling portfolio is a grand slam of fast and affordable new tooling options for manufacturers.”

Several customers are now using ExOne’s binder jet 3D printed tooling options, including Sweden-based Celwise AB, which is using X1 MetalTool 316L for an innovative molded fiber application detailed in detailed in today’s simultaneous release.  Additionally, North American Mold in Auburn Hills, Michigan, has preliminarily proven out X1 MetalTool 420i and 316L for both injection molding and blow molding applications and will serve as an ongoing development partner to ExOne on these applications, with broad commercial readiness expected in the first half of 2022.

A Fast and Flexible Tooling Portfolio

In all, manufacturers can now leverage six new and affordable tooling applications from ExOne.

For Plastic Production

X1 MetalTool – This all-new 3D printed metal tooling option has passed preliminary tests to replace standard steel or aluminum tooling for plastic injection molding, blow molding, and other plastic and foam forming applications. X1 MetalTool is available in 420i, a highly durable and affordable steel-bronze matrix, as well as 316L stainless steel, M2 tool steel, and more.
This tooling can be finish machined, acid etched and polished to a diamond finish, and is currently ideal for complex inserts. ExOne is currently seeking additional development partners to expand durability testing of this product line.

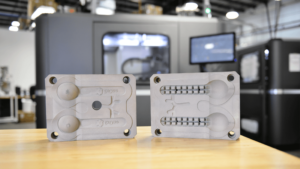

Exone - NEW X1 Tooling Fast. Affordable. Local. X1 MetalTool 420i

X1 ThermoForm – A 3D printed sand form is infiltrated with a durable resin and coated to create small- to large-format molds for a variety of thermoforming applications, such as vacuum forming, compression molds, foam molding, and more.

EXONE - Kenson-Plastics-Forming-Tool X1 ThermoForm

For Composite Production

X1 Layup – A 3D printed sand form is infiltrated with a durable resin and coated for high-precision,  high-temperature composite layup applications. X1 Layup offers dimensional tolerances of +/- 0.025” and tooling can be precision machined to +/- 0.005” if needed.

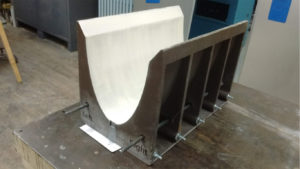

EXONE - CompositeLayup-Tool X1 Layup

X1 Washout – This 3D printed sacrificial tooling washes out with tap water after traditional layup and autoclaving of composite materials, including carbon fiber. X1 Washout is a sand form 3D printed with a water-soluble binder and surface coated. Ideal for ducting, mandrels and other designs with trapped geometries.

For Metal Production

X1 SandCast – ExOne is the longtime market leader in selling 3D printers for sand molds and cores for metalcasting. Sandcastings can be delivered in a variety of sand types and binders, including sustainable inorganic formulas for high-quality aluminum castings.

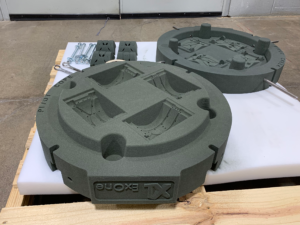

EXONE - XI-SandCast X1 SandCast

X1 MetalTool – In addition to plastic forming applications, X1 MetalTool can also be used to directly 3D print end-of-arm tooling, and rugged perishable or consumable tools in a variety of metals, including tool steels.

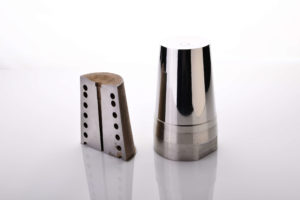

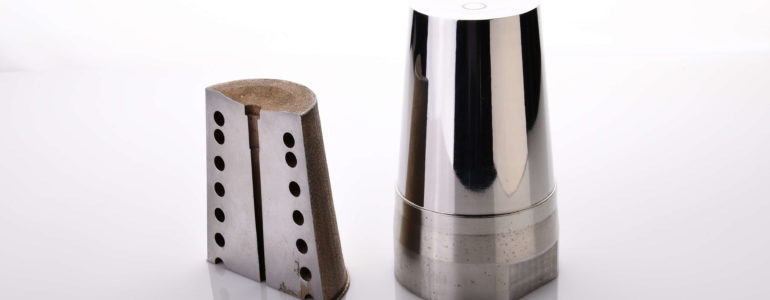

EXONE - H-13-Cup-Mold-7543 X1 MetalTool in H13 Tool Steel

X1 DieMold – Still in development, rugged die molds 3D printed in H13 tool steel are currently fast-tracked with several global manufacturers after passing proof of concept tests.

Flexible Tooling Options and Sizes

Manufacturers can now purchase X1 Tooling products directly from ExOne through the company’s ExOne Adoption Centers — or manufacturers can purchase a 3D printer for tooling applications.

Sizing options vary for the type of tooling as detailed below:

  • All sand- and sand-infiltrated tools, which includes X1 ThermoForm, X1 Layup, X1 Washout, X1 SandCast, are produced in the build volume of ExOne S-Max® series printers: 1800 x 1000 x 700 mm (70.9 x 39.4 x 27.6 in.). The printed sections can also be segmented and assembled together before epoxy infiltration to make even larger tools.
  • Currently, all X1 MetalTool and X1 DieMold tools are 3D printed in an X1 25Pro® build volume of 400 x 250 x 250 mm (15.75 x 9.84 x 9.84 in), with development underway to 3D print tooling options in the X1 160Pro™, which offers a build volume of 800 x 500 x 400 mm (31.5 x 19.7 x 15.8 in).

What is Binder Jet 3D Printing?

ExOne’s binder jet 3D printing transforms powdered materials — metal, sand or ceramic — into highly dense and functional precision parts at high speeds.

An industrial printhead selectively deposits a binder into a bed of powder particles creating a solid part one thin layer at a time, similar to printing on sheets of paper. When printing metals, the final bound metal part must be sintered in a furnace to fuse the particles together into a solid object. ExOne now delivers high densities of greater than 97% for most metals, in line with Metal Injection Molding or gravity castings.

Binder jet 3D printing technology is viewed as a desirable and sustainable production method, largely because of its high speed, low waste and cost, as well as material flexibility.

  • Article from our partner ExOne
