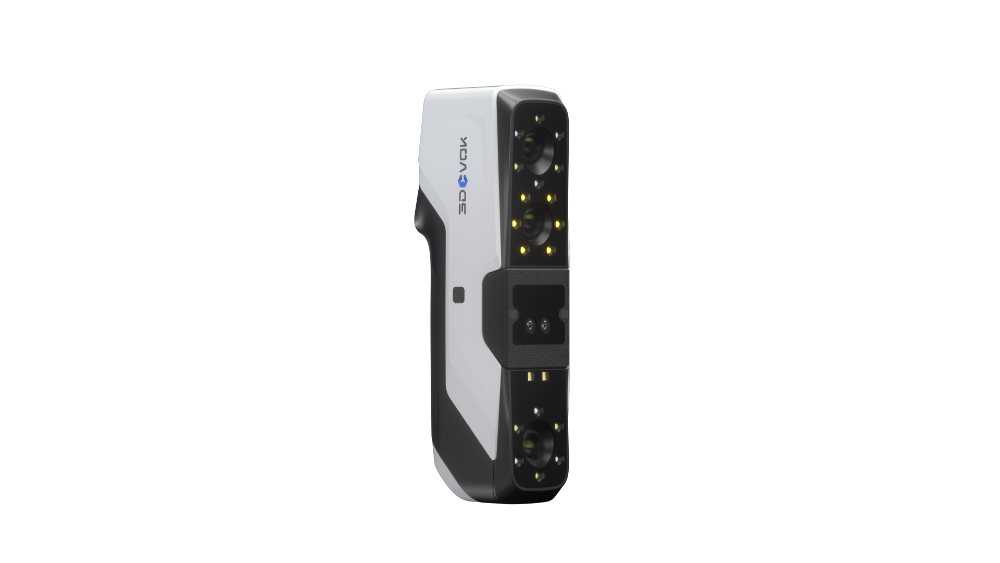

SCANTECH | 3DEVOK MQ

Manufacturer : SCANTECH
Sectors : Aerospace, Automotive, Industry

The 3DeVOK MQ is a high-end wireless 3D scanner developed by SCANTECH, designed to offer high accuracy and flexibility of use, while being accessible to professionals and creators. It is particularly suited to applications such as 3D printing, heritage preservation,

reverse engineering, creative design, art, medical rehabilitation and scientific research.

Reference : 3DeVOK-MQ
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?
One 3D scanner, countless possibilities.

This model, the 3D scanner from SCANTECH, is perfect for industries such as 3D printing, cultural heritage preservation, and reverse engineering. Additionally, it supports creative design, art, medical rehabilitation, and research & education. Ultimately, it is the ideal 3D productivity ally for printing farms, design studios, and small to medium-sized businesses.



22-line infrared laser

Combining 22-line infrared laser technology with wireless functionality, the 3D scanner from SCANTECH delivers precise scanning for applications such as 3D printing, heritage preservation, and more.



Large infrared field of view

Designed specifically for the acquisition of portraits, body parts and medium to large objects (from 30 cm), the ultra-wide acquisition area reaches up to 1,100 mm × 1,000 mm, enabling fast scanning and easy handling.



Wireless

The 3DeVOK MQ offers true wireless freedom, eliminating the constraints of cables. It’s intuitive and efficient: capture data anytime, anywhere, and bring your creativity to life effortlessly.





  • Light source: 22 infrared laser lines and infrared VCSEL structured light
  • Laser category: Class I (Safe for the eyes)
  • Accuracy*: Up to 0.08 mm Distance between points: From 0.1 to 5 mm
  • Alignment mode : Supports hybrid alignment, markers, textures and geometric features
  • Texture capture capability: Yes
  • Maximum scan distance: 150-1,500mm
  • Maximum field of view: 1,100mm × 1,000mm
  • Capture frame rate: Up to 70 FPS
  • Maximum scan speed: Up to 4,500,000 dots/s
  • Output formats: *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk
  • Wireless scanning: Supported (with optional handle)
  • Operating temperature range: 0 – 40 ℃
  • Operating humidity range: 10% – 90% RH (non-condensing)
  • Dimensions: 215mm × 73mm × 53mm
  • Weight: 550g
  • Power supply: DC: 12V, 5. 0 A
  • Certifications: CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC



Recommended PC requirements

  • OS: Windows 10/11 64-bit, CPU: i7-13650HX or higher, RAM: 32 GB and higher
  • Graphics card: NVIDIA dedicated graphics card, NVIDIA RTX3060 and higher
  • Graphics memory: 6 GB and higher



* Theoretical laboratory accuracy test results are subject to uncertainty errors.
