Cutting

LASERCUT 640

Manufacturer : Lasercut
Sectors : Education, Fablabs, Industry

Reliable, fast, safe and precise laser cutting machine with a work surface of 600 x 400 mm.

  • High precision cutting
  • High performance step motor
  • High precision linear guide
  • Imported axletree
  • Flexible operation interface
  • Perfect optical path system
  • Multiplicate data transmission mode
Reference : LASERCUT640
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

NON-METAL LASER ENGRAVING CUTTING MACHINE

The LASERCUT 640 laser cutting and engraving machine is reliable, fast and precise. The laser tube has a long life thanks to its water cooling.

Our machines are equipped in series with a centrifugal extractor of fumes and dust of 550W, according to the configuration of the premises, different powers of extraction and or filtration can be proposed to you.

The LASERCUT 640 has a color control panel that allows you to control the machine, load the files to be machined and make various system settings.

Axis displacement is ensured by high performance stepper motors. The LASERCUT 640 is capable of machining a large amount of materials : paper, leather, wood, bamboo, fabric, resin, acrylic, plastic, wool, PU, PVC,EVA, foam, rubber, plexiglass, ceramic tiles and other non-metallic materials.

LaserCut 640

Linear guide

  • High position accuracy and long service life.
  • Sliding block running friction coefficient is small low noise, fast speed, reinforcement and rust prevention.
  • Easy maintenance,high speed and stable.

Offline system

  • Color screen + offline board.
  • Visualize workflow, graphical preview.
  • Continue to work after power off and output by layer.

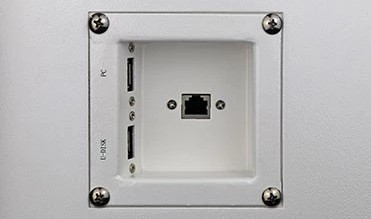

  • Multiple input modes (PC/USB cable/network cable)

Control panel

  • The operation interface is controlled by digital panel & computer software.
  • All of parameter setting and process instructions can be finished on it.

Laser system

  • Laser system smartly monitors every machine by remote diagnosis, remote control.
  • Auto updating of software and online information transfer etc.

Optional different types of conveyor tables

  • Honeycomb table
  • Herringbone
  • E style
  • Grid

LaserCut 640

DELIVERED WITH :

  • 550 watt air extractor
  • 120 watt compressor
  • Color control screen
  • 90 watt laser tube (possibility of using a higher power laser)
  • Piloting software
  • Water cooler
  • LENOVO Central Unit
  • Keyboard + mouse + screen
  • 1 set of replacement lenses
  • 1 spare optical mirror

TECHNICAL CHARACTERISTICS

  • Power of the laser : ≤70W
  • Type of CO2 laser
  • Water Laser Cooling
  • Working area : 600 × 400 mm
  • Machine Dimensions : 1420 mm (L) × 760 mm (L) × 1105 mm (H)
  • Motorization : Step by step
  • Maximum cutting speed : 0 – 36000mm / min
  • Maximum engraving speed : 0 – 64000mm / min
  • Power : 1.1 KW
  • Power supply : 220v / 50-60Hz, 10Amax
  • System/Compatible Format : Windows XP/7/8/10
    AI, PLT, DXF, DST, BMP, JPG, JPEG, PNG.
  • Environmental requirements : Temperature 10-30℃
    Humidity(no condensation)30-80%
  • Gross weight : 100 Kg
  • 1 year guarantee

Manufacturer

Lasercut

The most comprehensive product line of laser systems in the industry Lasercut has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. So far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting,…
