Cutting

LASERCUT 960

Manufacturer : MULTISTATION SAS
Sectors : Education, Fablabs, Industry

CO2 laser cutting machine for non metallic materials and engraving machine with single or double head and 900 x 600 mm working area.

Reference : LASERCUT 960
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Laser cutting / engraving machine for non metallic materials

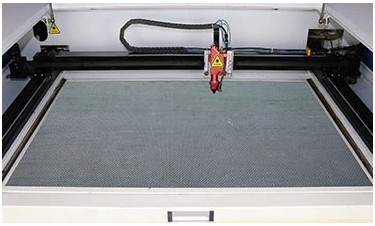

LASERCUT 960 laser cutting and engraving machine for non metallic material is stable, fast, accurate and easy to use.

The laser tube has a long service life thanks to its water cooling. LASERCUT 960 also offers :

  • Flexible operation interface
  • High performance step motor
  • Imported axletree
  • Four balance straight-line slide-way
  • Perfect optical system
  • Multiple data transmission mode

Appicable materials

  • Fabric, wood products, paper, leather, acrylic, plastic, PU, PVC, EVA, foam, rubber, bamboo and other non-metal materials.

Fields of application

  • Footwear, garment, leather, craft and gift, packing & printing, advertising industry and so on.

Découpe Laser - LASERCUT 960

Large work surface

Large-scale use of the area to achieve large-format cutting and engraving needs

High speed and stability

The motion system used four wheel linear guide rails and precision gear driving to ensure processing precision and speed. Easy maintenance, high speed and stable.

Offline system

  • Color screen + offline board.
  • Visualize workflow, graphical preview.
  • Continue to work after power off and output by layer.
  • Multiple input modes (PC/USB cable/network cable)

Control panel

The operation interface is controlled by digital panel & computer software. All of parameter setting and process instructions can be completed on it. Both Chinese and English are available.

IOT system

Gbos Laser IOT system smartly monitors every machine by remote diagnosis, remote control. Auto updating of software and online information transfer etc.

Optional different types of conveyor tables

  • Honeycomb table
  • Herringbone
  • E style
  • Grid

Découpe Laser - LASERCUT 960

TECHNICAL CHARACTERISTICS

  • Power of the laser : ≤70W
  • Type of CO2 laser
  • Water Laser Cooling
  • Working area : 900 × 600 mm
  • Machine Dimensions : 1550 mm (L) × 1130 mm (L) × 1150 mm (H)
  • Motorization : Step by step
  • Maximum cutting speed : 0 – 36000mm / min
  • Maximum engraving speed : 0 – 72000mm / min
  • Power : 2 KW
  • Power supply : 220v / 50-60Hz, 10Amax
  • System/Compatible Format : Windows XP/7/8/10
    AI, PLT, DXF, DST, BMP, JPG, JPEG, PNG.
  • Environmental requirements : Temperature 10-30℃
    Humidity(no condensation)30-80%
  • Gross weight : 320 Kg
  • 1 year guarantee
