PRIMA ADDITIVE – Ianus Cell

Manufacturer : Prima Additive
Sectors : Aerospace, Automotive, Industry, Medical

The special feature of Ianus Cell® is the possibility to be configured for different laser processes such as direct energy deposition based on the use of powder or wire as starting material, but also other laser processes that are not necessarily part of the additive manufacturing spectrum, such as laser welding (proximity or distance) and laser hardening.

This solution can also be configured to perform two different processes in the same machine, using the same laser source or different laser sources on the same robotic arm.

Reference : PRIMAADDITIVEIanusCell
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

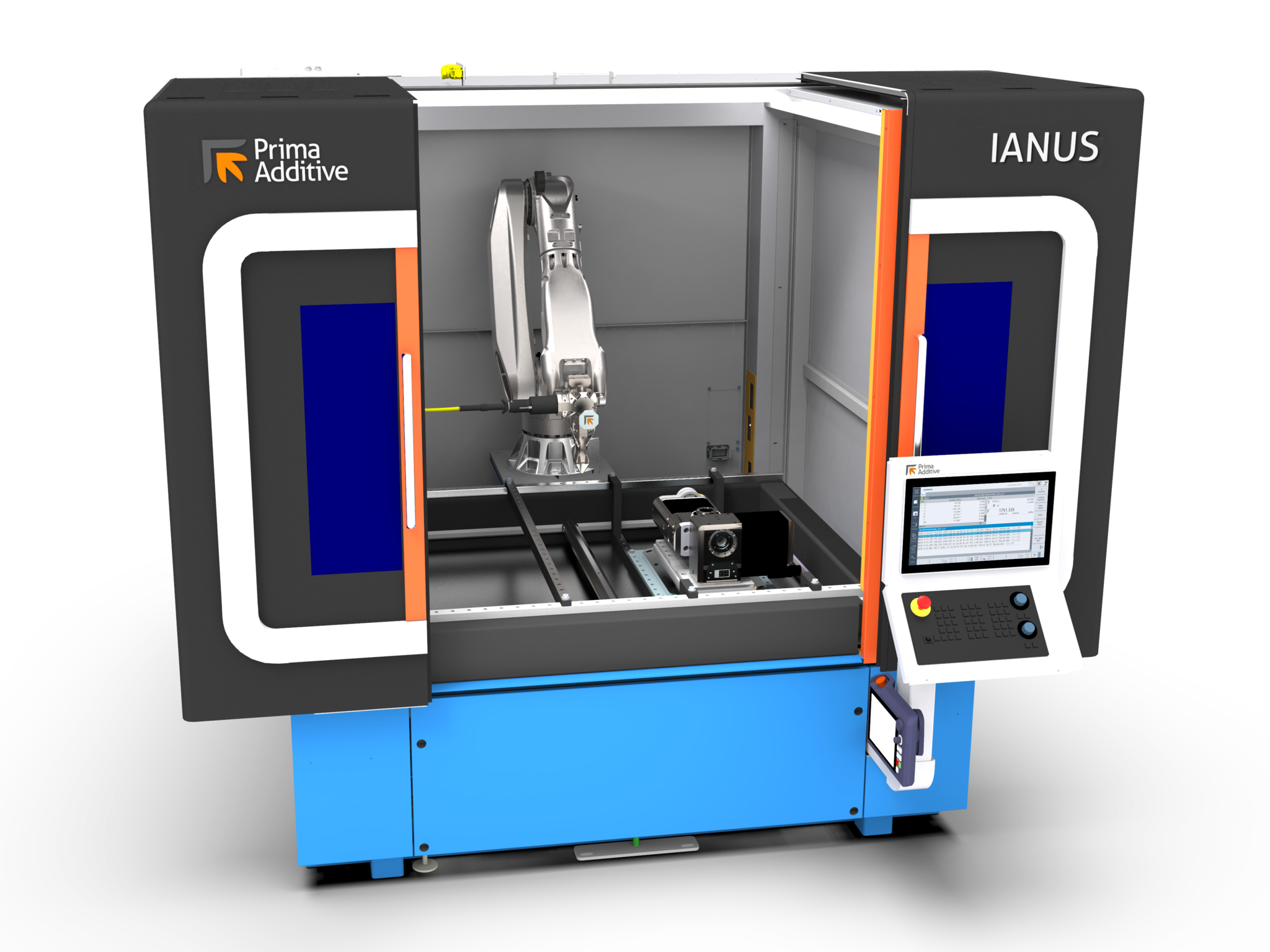

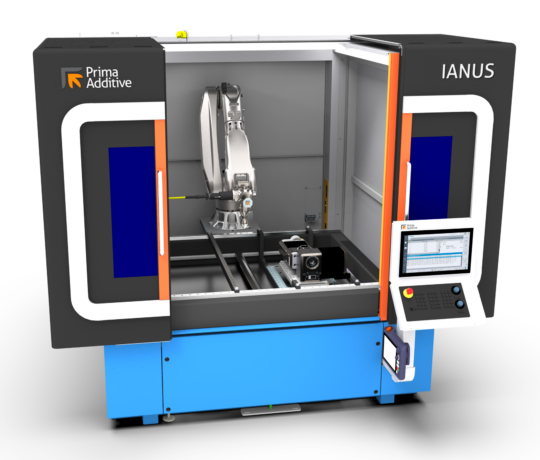

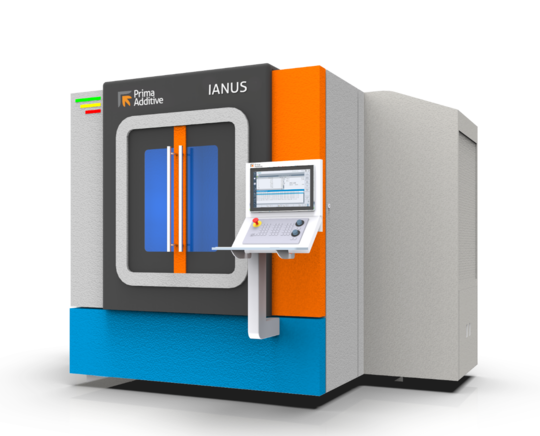

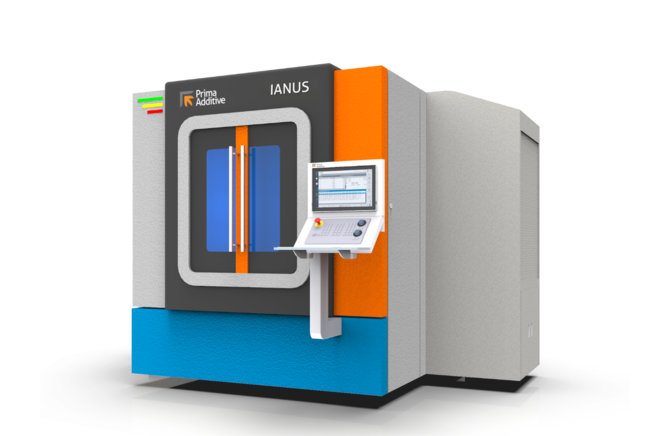

Ianus Cell METAL 3D PRINTER

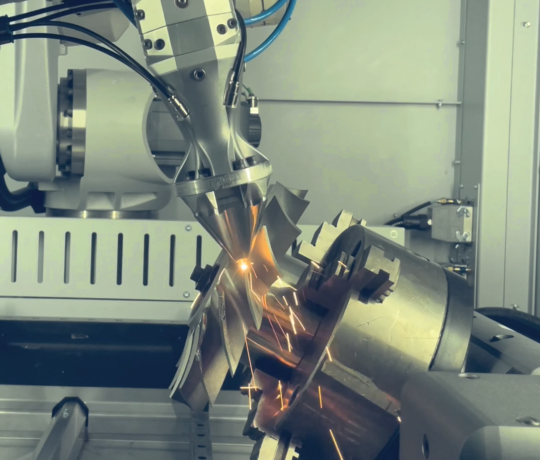

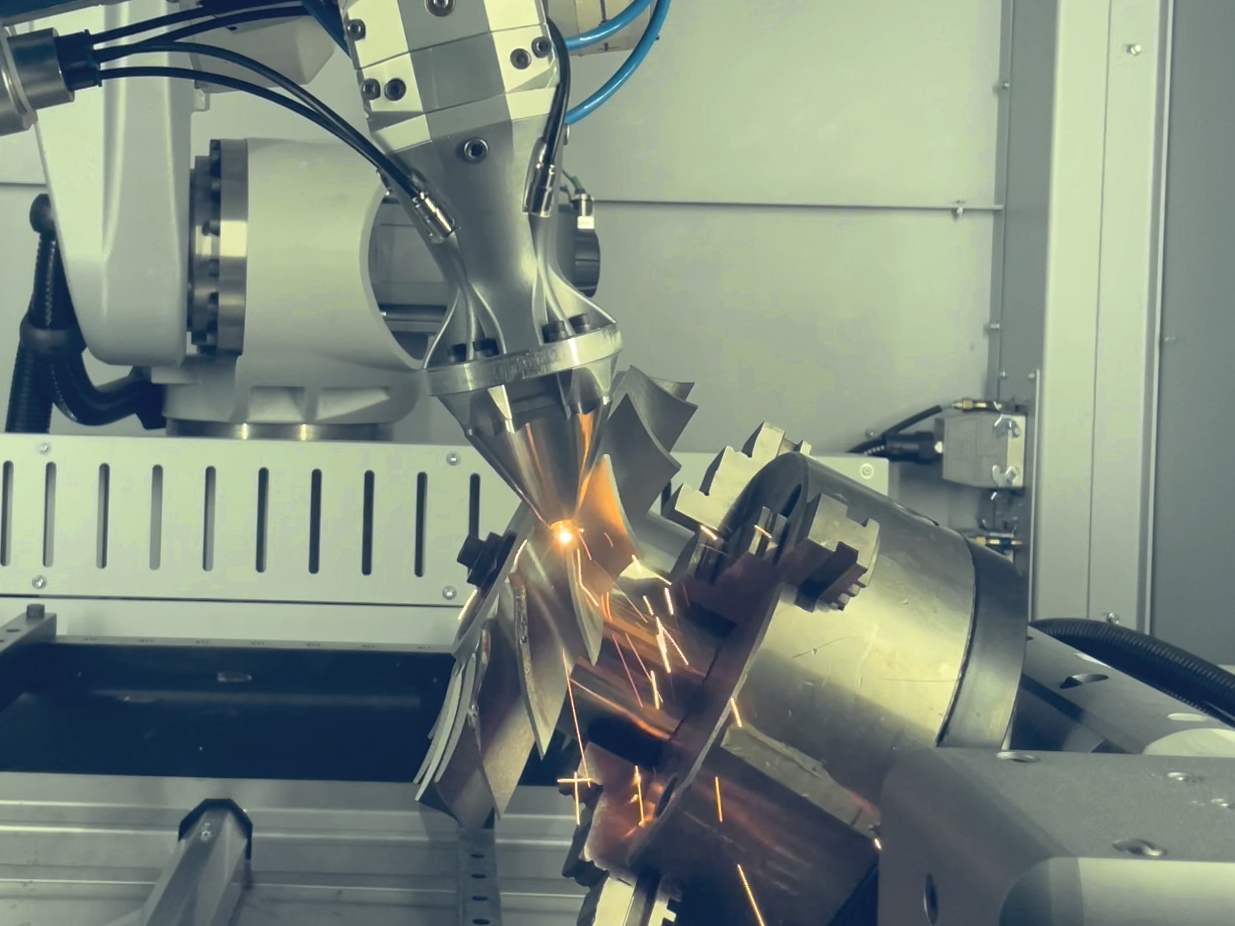

The Ianus Cell® uses Direct Energy Deposition (DED) technology, a compact and precise laser platform for direct metal powder deposition. The fabrication material can also be a wire. It is suitable for 3D manufacturing, component repair, research into new materials and the development of repair, reconstruction or coating applications. Also, this platform is used for laser welding.

EQUIPMENT

Equipped with an advanced additive head and a laser cutting head, it features minimal tooling requirements, efficient material utilisation, multi-material capabilities and high flexibility as it is mounted on a robot arm. Automatic head and chamber changeover.

SIZE AND POWER

  • Dimensions (L x W x H): 3552 x 2751 x 2425 mm
  • Weight : 3000 kg
  • Power supply : 400v / 50 Hz / 20 kW

LASER

  • Laser type : Yb IR, CW multimode laser
  • Laser power: 1-6 kW
  • Beam wavelength: 1070 – 1080 nm

MACHINE AND PROCESS DETAILS

  • Manufacturing volume: 1600 x 1200 x 700 mm
  • Fabrication speed (depending on process parameters and material used): up to 100 cm3/h
  • Surface finish RA: min 20µm, standard 40µm
  • Materials: Stainless steel, nickel-based alloy (inconel), titanium alloy, cobalt-chromium alloy, copper alloy.

PERIPHERALS & AUXILIARIES – SOFTWARE

  • Power supply module: 1 to 4
  • Cam software: NX Siemens (optinal)

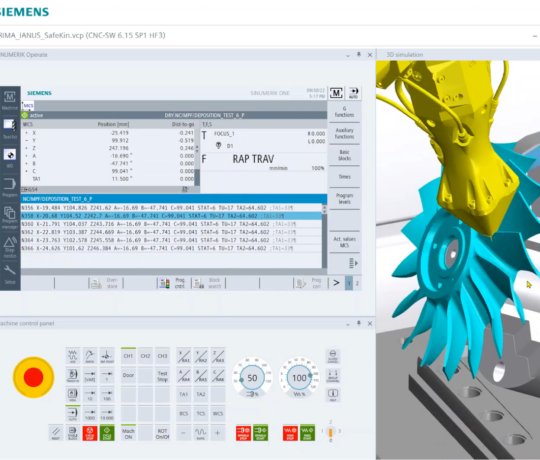

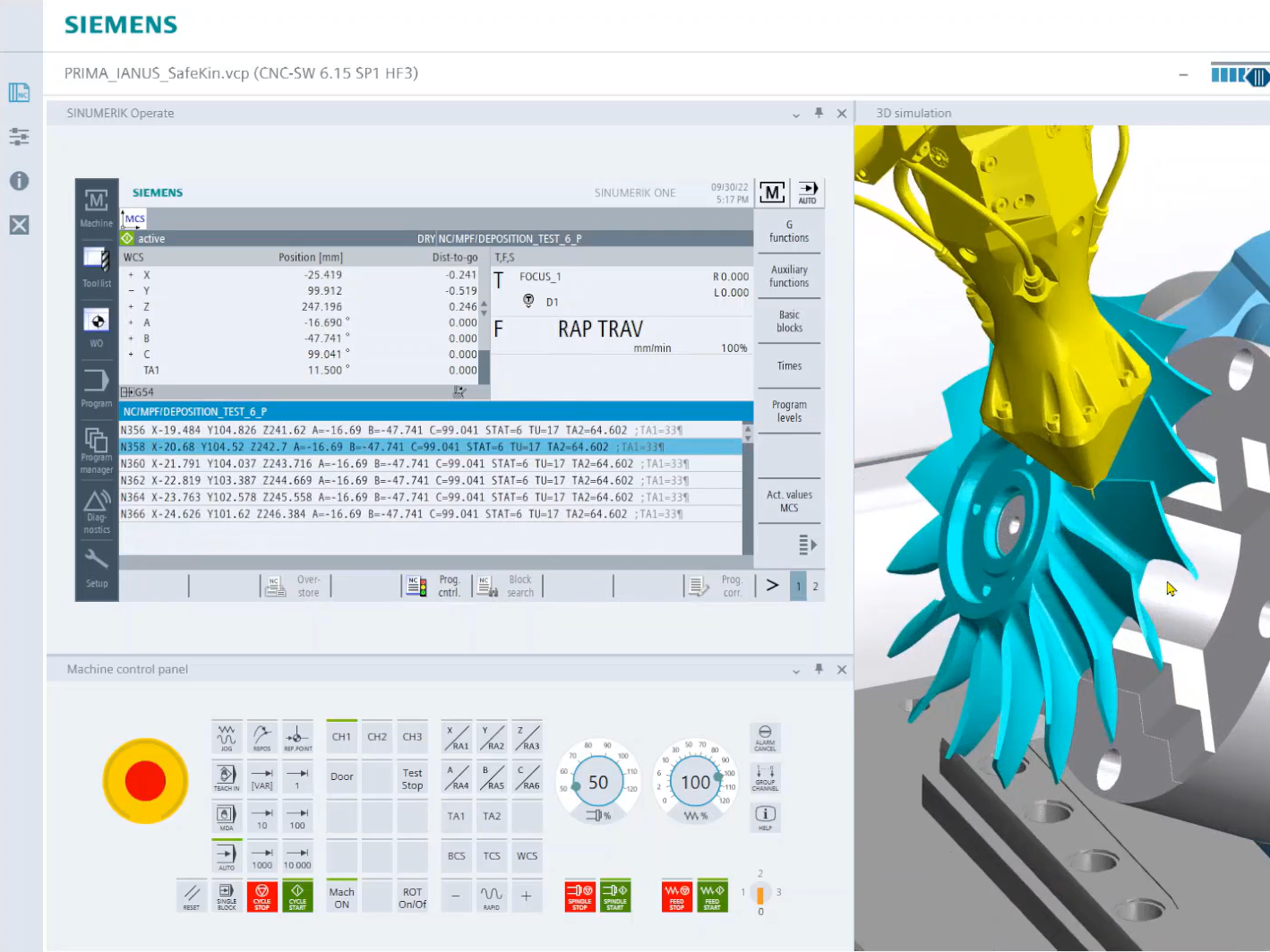

  • CNC software : Sinumerik One Siemens

Manufacturer

logo Prima Additive

Prima Additive

Prima is an Italian company belonging to the Prima Industrie group, which has been specialising in laser systems for industrial applications, sheet metal processing machines, industrial electronics, and laser sources for over 40 years.  Prima's proposal is to bring to the market a metal additive manufacturing solution using a proven…
