PRIMA ADDITIVE – Print Sharp 250

Manufacturer : Prima Additive
Sectors : Aerospace, Automotive, Industry, Luxury, Medical

Print Sharp 250 is a machine for additive manufacturing designed fors the fabrication of medium sized components. Optimised gas flow minimises nitrogen or argon consumption. Complete material change capability in less than two hours due to modular and easily removable components. The machine is equipped with glove box system and an integrated vacuum cleaner.

Reference : PRIMAADDITIVEprintsharp250
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Print sharp 250 METAL 3D PRINTER

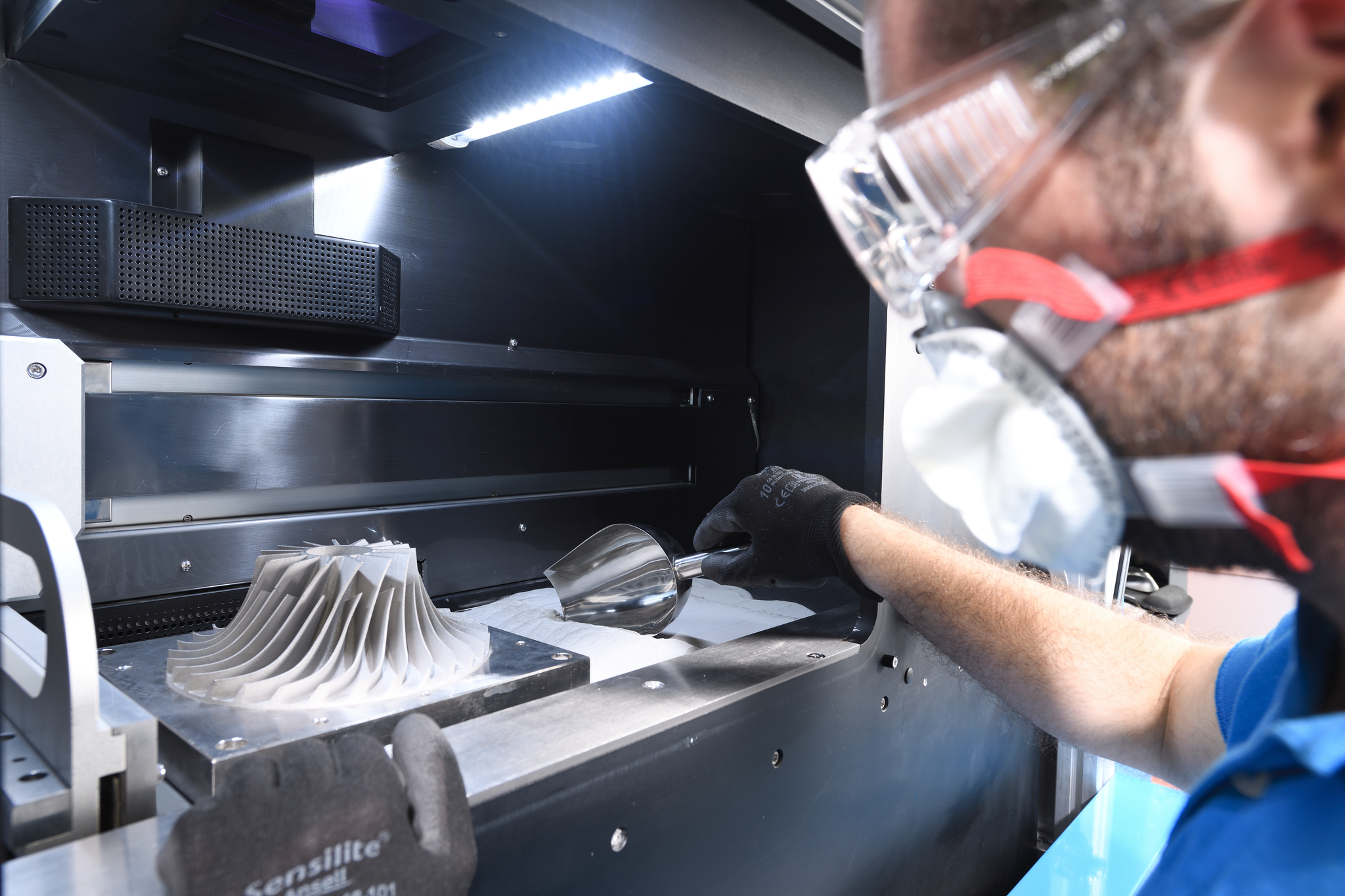

Print Sharp 250 is a medium-volume machine for Powder Bed Fusion applications, developed for industrial manufacturing of complex components. Suitable for both Additive Manufacturing companies and prototyping purposes, it offers high flexibility in terms of parts management and operational performance.

AFFORDABLE AND WELL DESIGNED

The competitive price of the entire system means that you can invest in Additive Manufacturing technology quickly and with little risk, intelligently achieving one of the most innovative manufacturing technologies available on the market.

Thanks to its modular configuration with easily removable components, a full material change can take place in less than 2 hours.

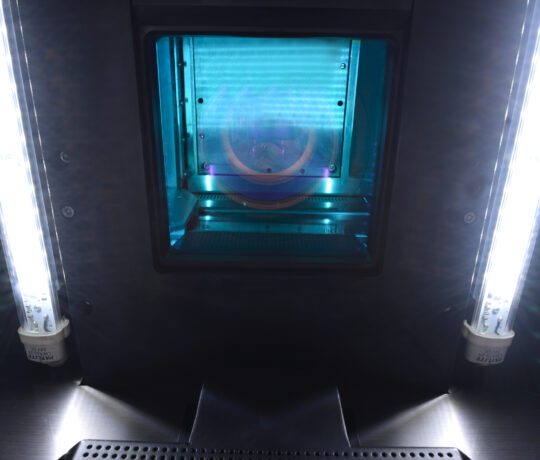

The machine comes with a “glove box” type access door to the working chamber, through which it is possible to move the powder inside the chamber while keeping the door closed during operations. The machine is also equipped with a socket for using an integrated vacuum cleaner directly inside the building chamber. This allows the operator to operate the machine safely, without coming into contact with the powder.

EASY TO USE AND EFFICIENT SOFTWARE

Print Sharp 250 includes intelligent control software designed to make operation easy and efficient, with an intuitive interface that makes setting up and operating the machine simple and hassle-free. The user can adjust parameters, modify printing conditions, change the building platform, material or powder collector.  Intuitive operating procedures and simple maintenance operations increase the machine’s utilisation rate and performance, helping you get the most out of your investment.

SIZE & POWER

  • Dimensions (lxwxh): 3500 (l) – 1100 (w) – 2450 (h)
  • Weight: 2000 kg.
  • Power supply: 380v / 50 hz / 8 kw

LASER

  • Type of laser: Laser Yb (Itterbio) IR single mode
  • Laser power: 500w
  • Laser focus diameter: 70 – 100 μm
  • Beam wavelength: 1060 – 1080 nm

MACHINE AND ADDITIVE PROCESS DETAILS

  • Building volume: 258 x 258 x 330 mm
  • Beam deflection speed: 8 m/s
  • Positioning speed: 10 m/s
  • Build rate (dependent on process parameters and material used.): 12 – 30 cm3 /h
  • Layer thickness: 02 mm – 0.1 mm
  • Layer width: 0.1 mm (single line width)
  • Building platform z-axis: Travel:370 mm / Speed: max 6 mm/s / Res:0.01 mm
  • Heating platform: up to 200°c
  • Monitoring of O2 level: below 100 ppm (0.01%)
  • Permissible room temperatures: 15 – 30°c
  • Materials: Stainless steel, maraging steel, high temperature nickel base alloy (inconel), titanium alloy, cobalt chromium alloy, aluminum alloy, high strength steel, copper alloy

PERIPHERAL & AUXILIARIES – SOFTWARE

  • Gas (consumption – running): 7l/min (running)
  • System fill consumption: 50 l / min.(up to filling)
  • Cam software: Materialise Magics
  • Control & other software: Eplus control software (EPC)
  • Industrial interface: Ethernet

Manufacturer

logo Prima Additive

Prima Additive

Prima Additive is the division of the Prima Industrie Group that develops, manufactures, sells and distributes industrial systems for metal Additive Manufacturing applications. Benefiting from Prima Industrie's long-standing experience in the field of laser machinery and services, Prima Additive supports its customers in developing innovative applications driven by emerging needs…
