Raise3D E2CF

Manufacturer : RAISE3D
Sectors : Education, Fablabs, Aerospace, Automotive, Industry, Railway

E2CF is a desktop 3D printer for printing carbon fiber reinforced filaments or other composite materials.

Build Volume : 330 × 240 × 240 mm

Reference : Raise3De2cf
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Raise3D E2CF

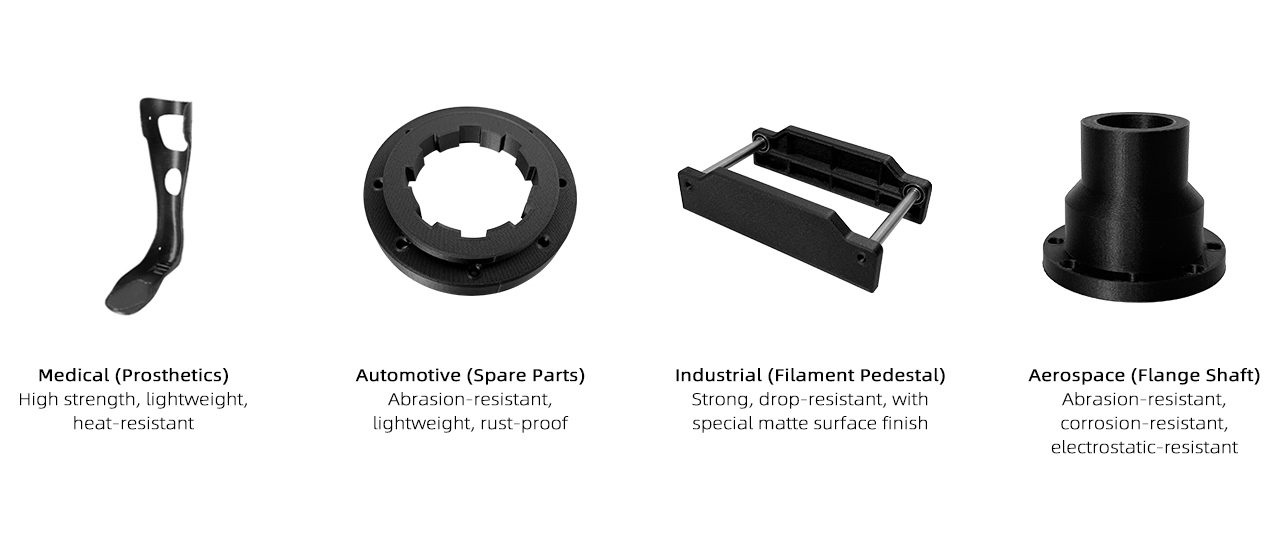

Carbon fiber filament has low density, high strength, and it is resistant to corrosion, static electricity and high temperature.It has potential for a wide range of applications within industries that need considerable strength-to-weight ratio in their solutions, such as the aviation industry and the automotive field. The E2CF is durable, user-friendly and stable while in operation and prints accurately.

Nozzles with High Durability

The new silicon carbide nozzles have excellent wear resistance and thermal conductivity, which will effectively lessen the abrasion the carbon fiber composite filament subjects the nozzle to when printing, making the nozzle more durable.

Dual Direct Drive Extrusion System

The gears are made of high-hardness steel and have been heat-treated for better wear resistance.

With a custom gear tooth profile, filament is firmly held in place to ensure that it does not slip when extruding. The force of the system is enhanced to ensure the stability of printing.

Compatible with a Variety of Carbon Fiber Composite Filaments

The E2CF is compatible with the Raise3D Industrial PA12 CF Filament and the high-performance carbon fiber filaments certified by the Raise3D Open Filament Program (OFP), such as PA CF/PET CF/PPS CF (printing Temp. between 280-300 °C) from BASF and LEHVOSS.

The Raise3D Industrial PA12 CF Filament is reinforced with short carbon fibers, and exhibits excellent rigidity and strength, heat resistance, low warpage, and low water absorption. Meanwhile, this material has an outstanding strength-to-weight ratio, and will obtain enhanced mechanical property and dimensional stability after annealing, which makes it suitable to replace metal in the manufacturing of certain lightweight components.

Raise3D Industrial PA12 CF Support Filament

Raise3D Industrial PA12 CF Support Filament is a break-away support material specially developed for carbon fiber-reinforced composite filaments. During the 3D printing process, it creates a stable support structure, providing proper adhesion to printed surfaces and counteracting any tendency to warp. As such, it significantly improves the surface quality of the overhangs and hollows of the printed items. After a print is finished, the support structure can be easily removed or broken away from the printed parts. This support material exhibits a broad compatibility with many Raise3D OFP (Open Filament Program) certified high-performance carbon fiber-reinforced composite filaments, and is more cost-effective when compared with water-soluble support material

Sealed Dry Box

The built-in suspension trays are used to place the filament and allow material to be pulled more smoothly. When closed, they can effectively prevent dust and moisture from affecting the material, for a period of up to 30 days.

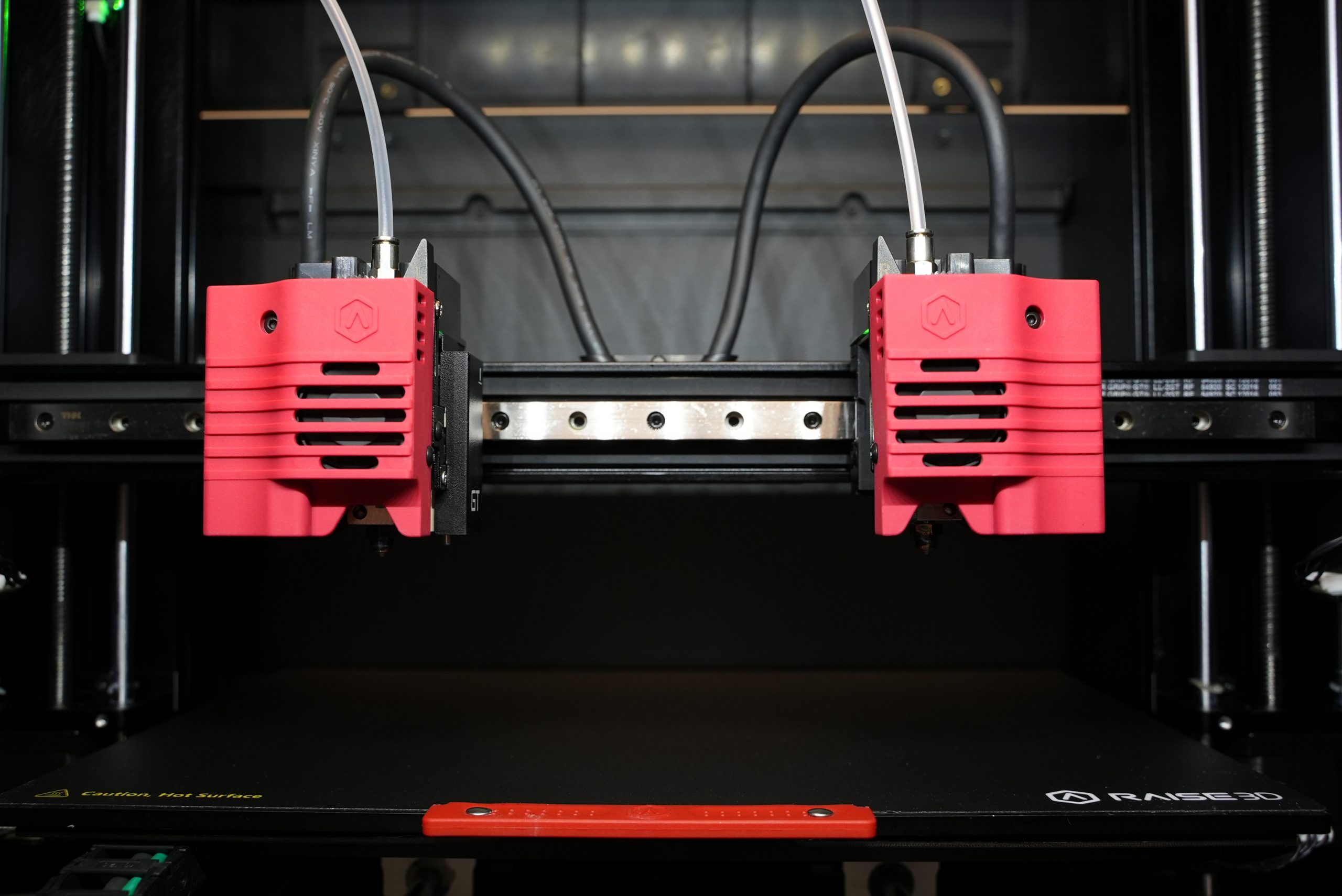

IDEX Mode

The E2CF is an IDEX 3D printer. IDEX stands for independent dual extruders meaning the extruders can operate independently of one another along the same axis during printing to perform more advanced functions.

With IDEX, one extruder can remain motionless and off to the side while the second extruder prints the model, minimizing the risk of the nozzle on the motionless extruder interfering with the print job during dual or single extrusion printing.

Mirror Mode and Duplication Mode

IDEX can perform two specialized functions, Mirror Mode and Duplication Mode.

Mirror Mode prints a model and an inverse of that same model at the same time. It is convenient because it saves the effort of creating an additional design file for the inverse model, and it saves the extra time usually spent printing the inverse model separately.

Duplication Mode is synchronized printing, meaning it uses both extruders to print a model and an exact copy of that model at the same time. It can double production capability within the same timeframe.

  • Build Volume (W×D×H) : 330×240×240 mm (Single Extruder Print) / 295×240×240 mm (Dual Extruder Print)
  • Machine Size (W×D×H) : 607×596×465 mm
  • Print Technology : FFF
  • Print Head System : IDEX Independent Dual Extruders
  • Filament Diameter : 1.75 mm
  • XYZ Step Size : 0.78125, 0.78125, 0.078125 micron
  • Print Head Travel Speed : 30–150 mm/s
  • Build Plate : Flexible Steel Plate with Buildtak
  • Max Build Plate Temperature : 110 ºC
  • Heated Bed Material : Silicone
  • Build Plate Leveling : Mesh-leveling with Flatness Detection
  • Filament Run-out Sensor : Available
  • Supported Materials : PA12 CF, PA12 CF Support, OFP Certified Third-Party Filaments (PA CF/PET CF/PPS CF de BASF/ LEHVOSS)
  • Layer Height : 0.1 – 0.25 mm
  • Nozzle Diameter : 0.4 mm (Default), 0.6/ 0.8 mm (Available)
  • Max Nozzle Temperature : 300 ºC
  • Connectivity : Wi-Fi, LAN, USB port, Live camera
  • Noise Emission (Acoustic) : <55 dB(A) when building
  • Operating Ambient Temperature : 15-30 ºC, 10-90 % RH non-condensing
  • Storage Temperature : -25 ℃ to +55 ℃, 10-90 % RH non-condensing
  • Filter : HEPA filter with activated charcoal
  • Net Weight : 32.4 kg
  • Gross Weight (Carton Only) : 36.7 kg
  • Gross Weight (Carton with Pallet) : 45.4 kg
  • Power Supply Input : 100-240 V AC, 50/60 Hz 230 V @2A
  • Power Supply Output : 24 V DC, 350 W
  • Slicing Software : ideaMaker
  • Supported File Types : STL/ OBJ/ 3MF/ OLTP
  • Supported OS : WINDOWS/ macOS/ Linux
  • Machine Code Type : GCODE
  • User Interface : 7-inch Touch Screen
  • Network : Wi-Fi, Ethernet
  • Power Loss Recovery : Available
  • Screen Resolution : 1024×600
  • Memory : 1 GB
  • Ports : USB 2.0×2, Ethernet×1
