SCANTECH | 3DEVOK MT

Manufacturer : SCANTECH
Sectors : Aerospace, Automotive, Industry

The 3DeVOK MT is a versatile all-in-one solution widely applicable for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, as well as research and education.

Designed for professional productivity, the 3DeVOK MT is built on the technological foundation of industrial-grade scanners and incorporates innovative multi-light source technology to meet a variety of application scenarios.

Reference : 3DeVOK-MT
Brochure requestAsk for a quotation
rea-securite
Guarantee
rea-telephone
After sales service
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Innovative multi-source 3D scanner technology

Equipped with 34 blue laser lines, 22 infrared laser lines and structured infrared illumination, the 3DeVOK MT 3D scanner from SCANTECH offers fast, accurate scanning, suitable for a wide range of materials and lighting conditions. As a result, this combination enables targetless scanning in all modes, thereby simplifying the entire data capture process



High accuracy and resolution

With a basic accuracy of up to 0.04 mm and a resolution of 0.05 mm, this scanner is ideal for applications such as reverse engineering, quality inspection, and product design. Furthermore, its volumetric accuracy of up to 0.04 mm + 0.06 mm/m ensures reliable and consistent results over large areas.

Fast, stable scanning

Thanks to data acquisition speeds of up to 4,500,000 dots per second and a maximum frame rate of 70 frames per second, objects can be captured quickly and smoothly. This high-speed performance significantly enhances scanning efficiency and workflow.

The scanner can cover a scan area of up to 490 mm × 490 mm in a single image, maximising process efficiency.

Advanced hybrid alignment

Moreover, this model integrates alignment technologies based on geometric features, textures, and markers, thereby offering maximum flexibility to adapt to a variety of scanning scenarios. As a result, this approach enables targetless scanning in many cases, significantly reducing the need for advance preparation



Application versatility

Suitable for a variety of applications, including reverse engineering, artistic design, human scanning, research and education.

Compatible with popular 3D data formats such as *.asc and *.stl, facilitating integration with CAD software and other design tools.



Environmental adaptability

Designed to operate effectively in a variety of environments, including indoors, outdoors, in low-light conditions and even in direct sunlight.

Thanks to its adaptive light source technology, it ensures stable and reliable data collection, whatever the environment.



Lightless scanning and support for complex materials

Thanks to its infrared light technology, the scanner can scan objects without emitting visible light, which is particularly useful for scanning dark sculptures and reflective artefacts.

It effectively manages complex surfaces such as black metals, highly reflective parts, dark hair and multi-coloured materials, eliminating shadow zones and improving data integrity.



Recommended applications

  • Reverse engineering and industrial design
  • Digitisation of sculptures and museum pieces
  • 3D modelling for printing and virtual reality
  • Automotive and aeronautical design
  • Anatomical modelling for health and rehabilitation.

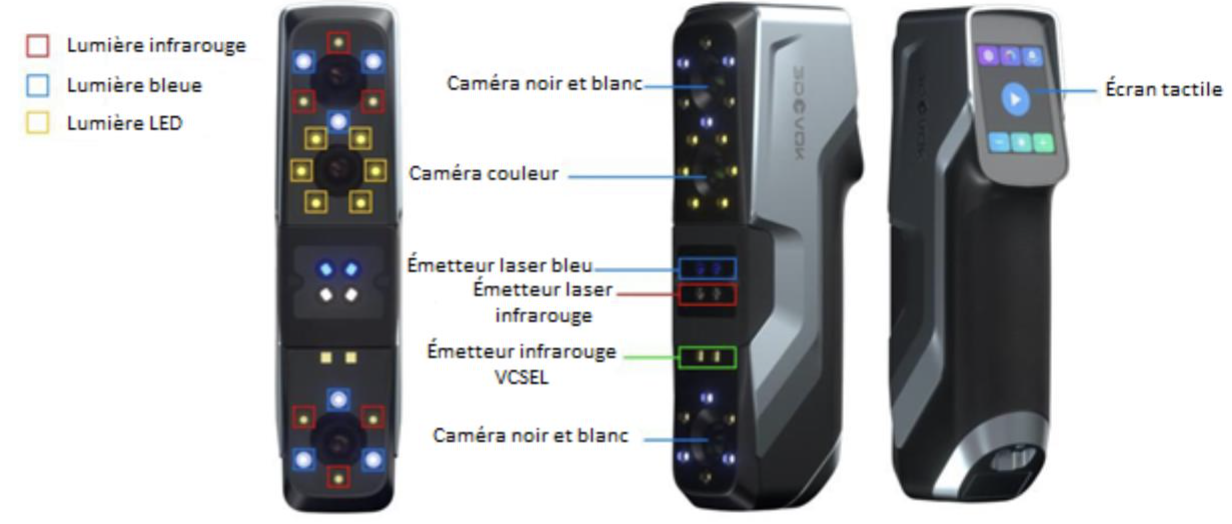

  • Light source: 34 blue laser lines, 22 infrared laser lines, VCSEL structured infrared light
  • Laser type: Class II (non-eye-safe), Class I (non-eye-safe)
  • Base accuracy* : Up to 0.04 mm
  • Volumetric accuracy*: Up to 0.04 mm + 0.06 mm/m
  • Distance between dots: 0.05 – 5 mm 0.1 – 5 mm
  • Texture capture capability: Yes
  • Maximum scan distance: 150 – 1,500 mm
  • Maximum field of view: 1,100 mm × 1,000 mm
  • Maximum scan rate: Up to 4,500,000 dots/s
  • Output formats: *.obj, *.stl, *ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk Operating conditions: 0-40 °C, 10 %-90 % RH (non-condensing)



  • Dimensions: 215 mm × 73 mm × 53 mm
  • Weight: 640 g Power supply: DC 12 V, 5.0 A
  • Certifications: CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC



Recommended PC requirements

  • Operating system: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above;
  • Graphics card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above
  • Software compatibility: Compatible with CAD and reverse engineering software such as Geomagic Design X, Artec Studio, PowerShape and PowerMILL.



* Theoretical laboratory accuracy test results are subject to uncertainty errors.
