ScanTech – TrackScan-P 3D scanner

Manufacturer : SCANTECH
Sectors : Industry, Fablabs, Education, Automotive, Aerospace, Jewelry, Medical, Railway, Defense

Engineered with intelligent optical tracking measurement and high-resolution cameras, TrackScan-P can precisely measure parts without having to stick reference targets. This optical 3D measurement system, consisting of a portable 3D scanner and an optical tracker E-Track, suits well for 3D scanning large-scale objects. It can be widely used for quality control, product development, reverse engineering, and more in industries such as aerospace, automotive, rail transport, and molds.

Reference : ScanTechTrackScanP
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

ScanTech TrackScan-P 3D scanner

Optical Tracking for Instant 3D Scanning

TrackScan-P 3D system’s optical tracking allows users to start scanning instantly without having to stick targets, significantly improving efficiency and decreasing costs.

Precise Edge Detection

TrackScan features a stand-out function of instant edge detection. Users can inspect circles, grooves, and machined holes of stamping parts in various finishes on the site without having to import original CAD models. The efficient edge detection is enabled thanks to its gray value measurement and optional auxiliary light module. Good measurements are ensured by delivering accurate and repeatable hole positions and diameters.

Unrivaled-fast & Detail-maker

By freely switching between multiple working modes, the TrackScan fits different scanning situations with an accuracy of up to 0.025 mm and an ultra-fast measurement rate of up to 2,200,000 measurements/s. Its 7 parallel blue laser lines perform well for capturing details. A single blue laser line aims to collect 3D data of deep holes and hard-to-reach areas efficiently.

Strong Adaptability

Made from aerospace-grade materials, it is sturdy and reliable. It also boasts a strong anti-interference capability to operate smoothly regardless of vibrations or thermal variations. Due to its advanced algorithm, TrackScan is robust in capturing 3D data of reflective and dark surfaces.

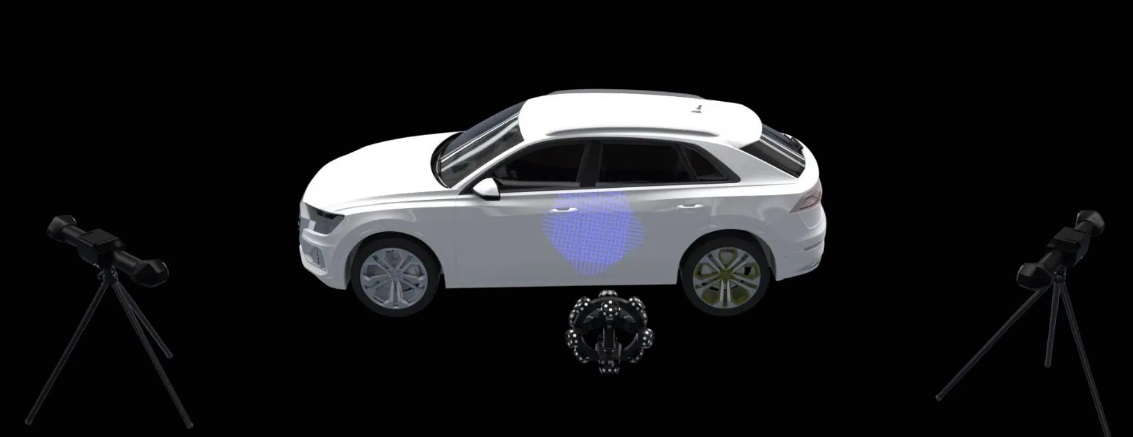

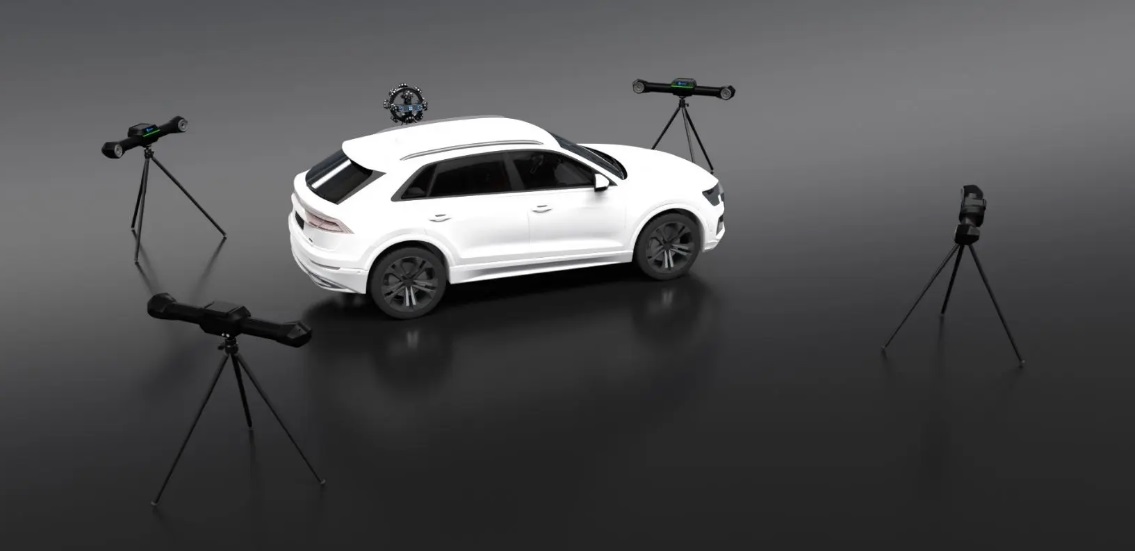

Extendable Applications TrackScan-P optical 3D measurement system can be integrated with Scantech’s products to cater to different measurement needs. Its measurement range can be dynamically extended by adding more E-Tracks so that it can measure large-scale objects without compromising accuracy. It can be mounted on a robotic arm to form an automated 3D measurement system AutoScan-T for efficient, and batch measurement. It can be paired with a portable CMM T-Probe (optional with different sizes) to probe inaccessible areas such as holes and hidden points. This contact measurement probe can ensure precise results with high single-point repeatability of 0.030 mm. When integrated with Scantech’s wireless communication link AirGo Pro, it can enable free and mobile 3D scanning. Its E-Track can also be combined with path planning software for intelligent robotic path planning and guiding.

  • Type: TrackScan-P550/542
  • Ultra-fast scanning: 21/17 blue laser crosses
  • Hyperfine mode B: 7 blue parallel laser lines
  • Deep hole scanning: 1 extra blue laser line
  • Accuracy: Up to 0.025 mm
  • Measurement rate: Up to 2,600,000/2,200,000 measurements/s
  • Scanning area: Up to 500 mm × 600 mm
  • Laser class: ClassⅡ (eye-safe)
  • Resolution: 0.020 mm
  • Object Size (Recommended): 100~8000mm.
  • Stand-off distance: 300 mm
  • Depth of field: 400 mm
  • Output formats: .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized
  • Operating temperature range: -10℃ – 40℃
  • Operating humidity: 10%-90% RH
  • Interface mode USB 3.0
  • Certification : CE, UL
