SHINING 3D – EinScan PRO 2X V2

Manufacturer : SHINING 3D
Sectors : Fablabs, Education, Industry, Automotive, Medical, Aerospace, Luxury

The EinScan Pro 2X V2 is a very high precision lightweight and versatile handheld scanner for scanning medium and small sized objects.

Reference : SHINING3DeinscanPRO2xV2
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

EinScan Pro 2X V2 3D scanner

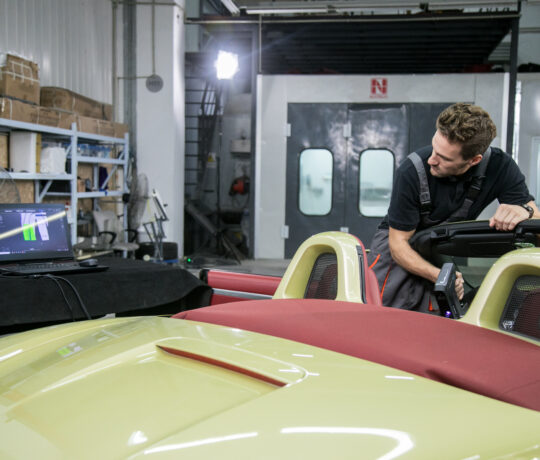

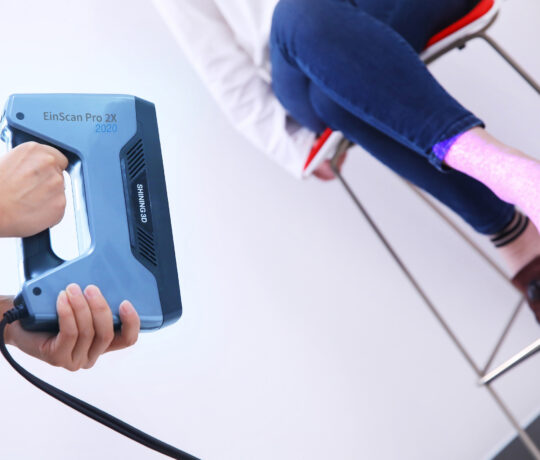

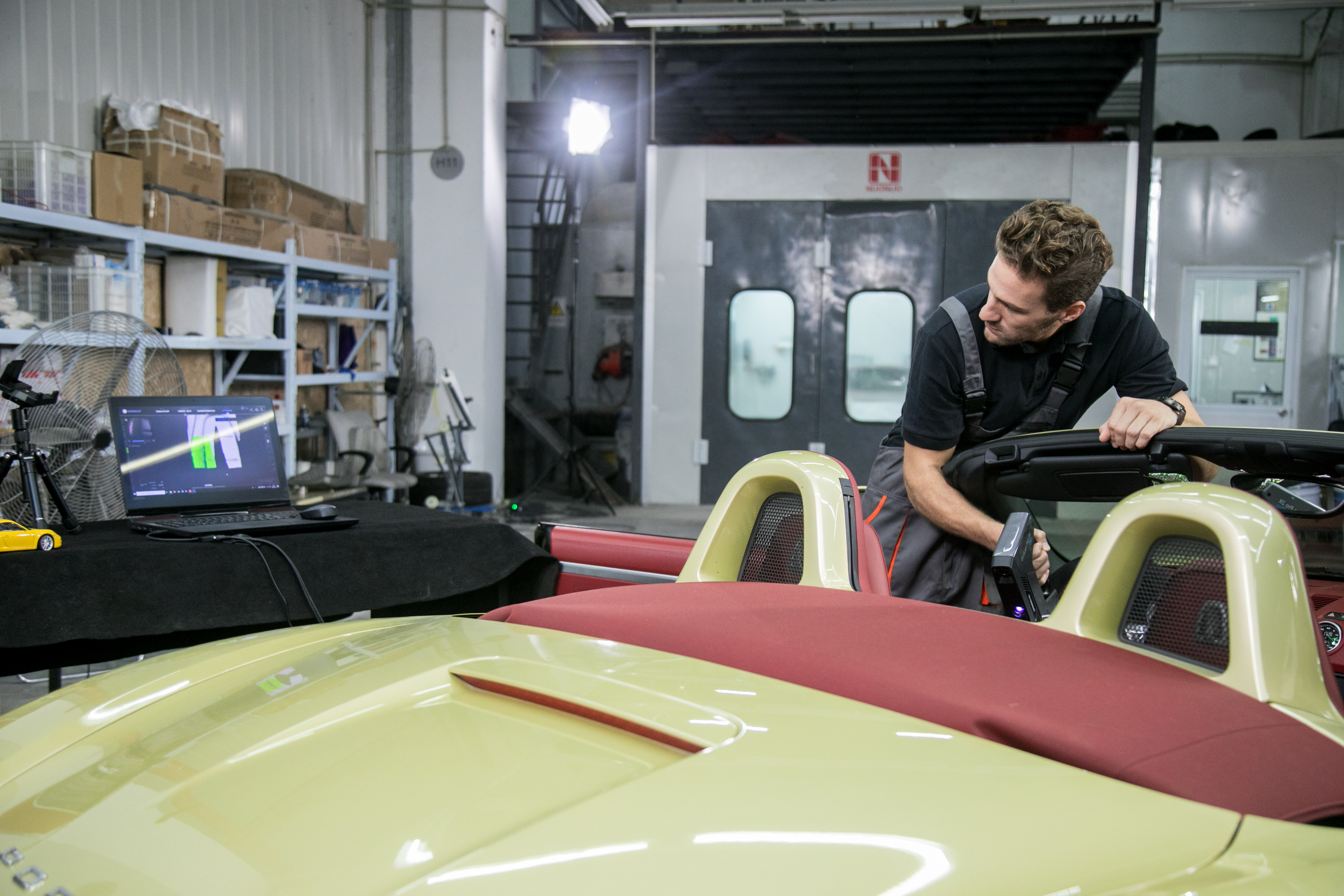

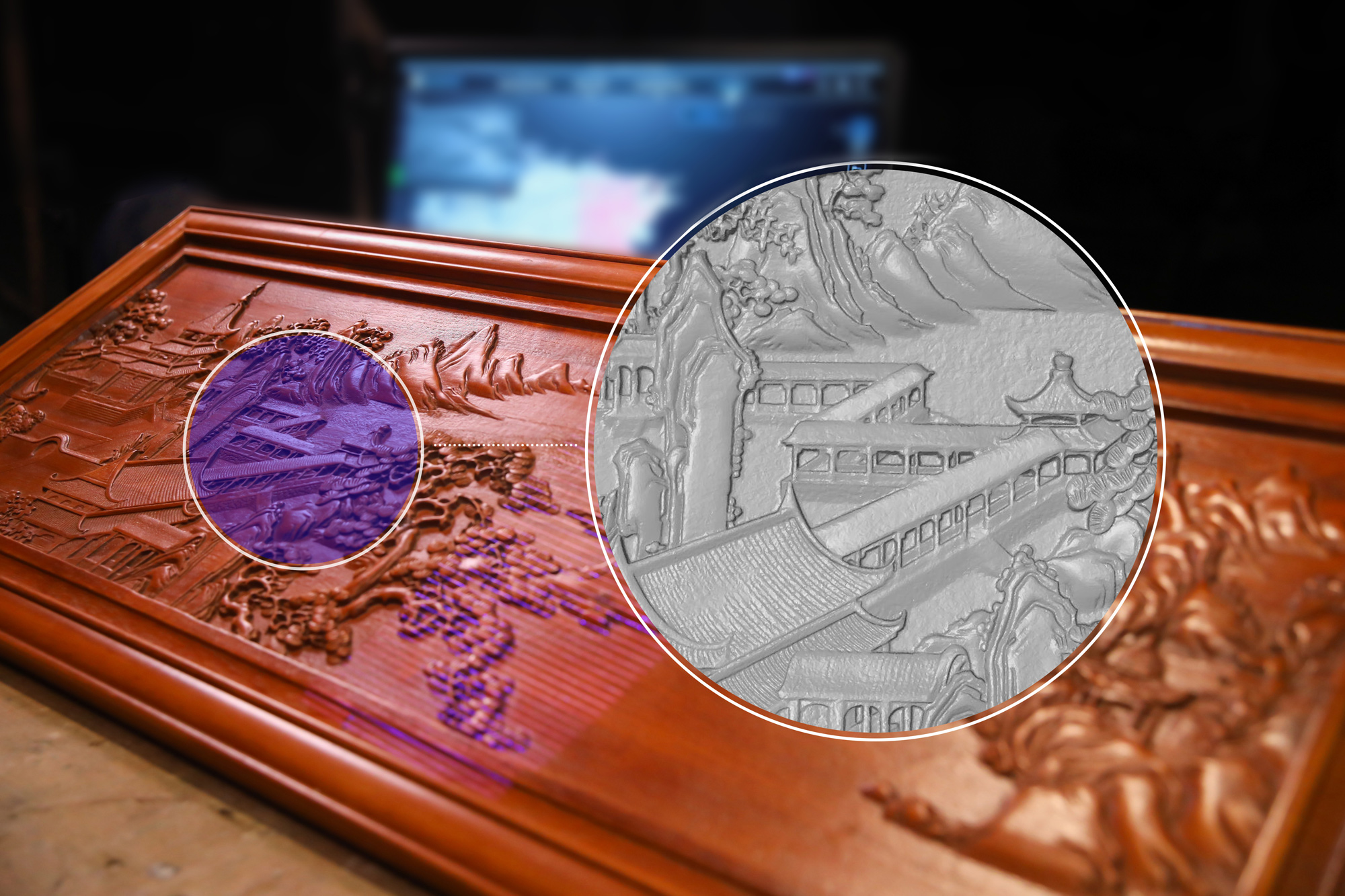

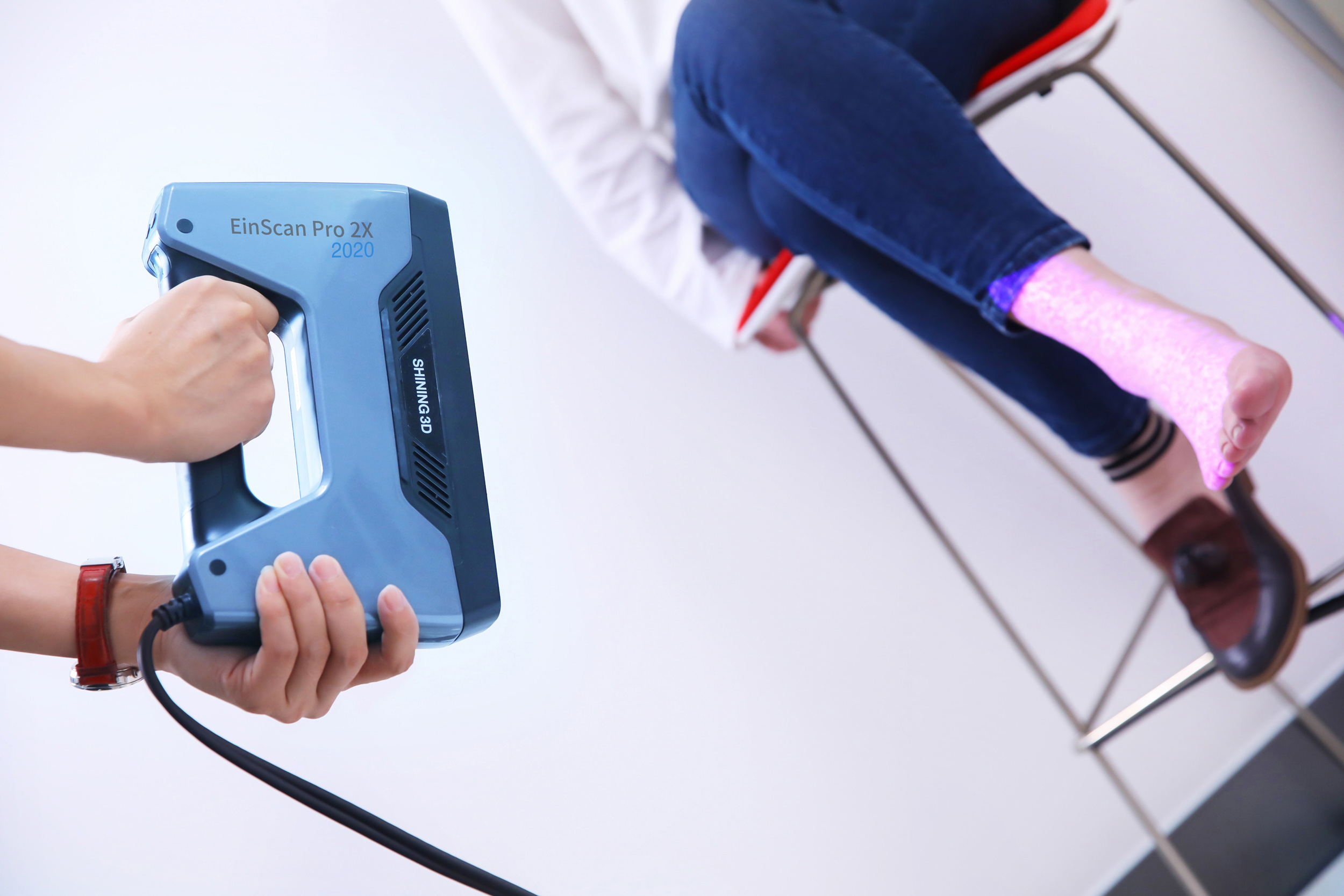

The EinScan Pro 2X V2 allows you to scan medium and small sized objects in high resolution and high speed. This scanner also allows you to choose between 4 different scan modes to scan all kinds of parts: mechanical, artistic or body parts. Thanks to its camera, the scanner can also do color scanning, moreover its scanning software is supplied with it, which allows you to perform your scans with ease, to view the result obtained in real time and to export it. in stl, obj, ply, asc, 3mf and p3 formats.

QUICK SCAN

Scanning speed (fast handheld scan) 30 fps 1.5 million dots/second.
Minimum dot difference (Handheld HD / Quick Scan) 0.2mm.
Volumetric accuracy (HandheldScan mode) 0.1mm + 0.3mm

HIGH ACCURACY

Scanning accuracy (fixed scan) of 0.04 mm.
Volumetric accuracy of 0.1 mm + 0.3 mm/m.
Minimum distance between dots (HD/fast scan) 0.2mm.

VERSATILE SCANNING MODES AND APPLICATIONS

Scan Modes: Fast Scan (Manual), HD Scan (Manual) and Fixed Scan.
Alignment Modes: Feature Alignment, Marker Alignment, Turntable Coded Target Alignment, and Manual Alignment.

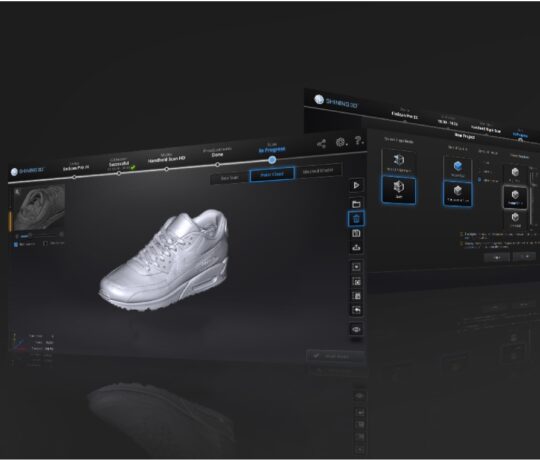

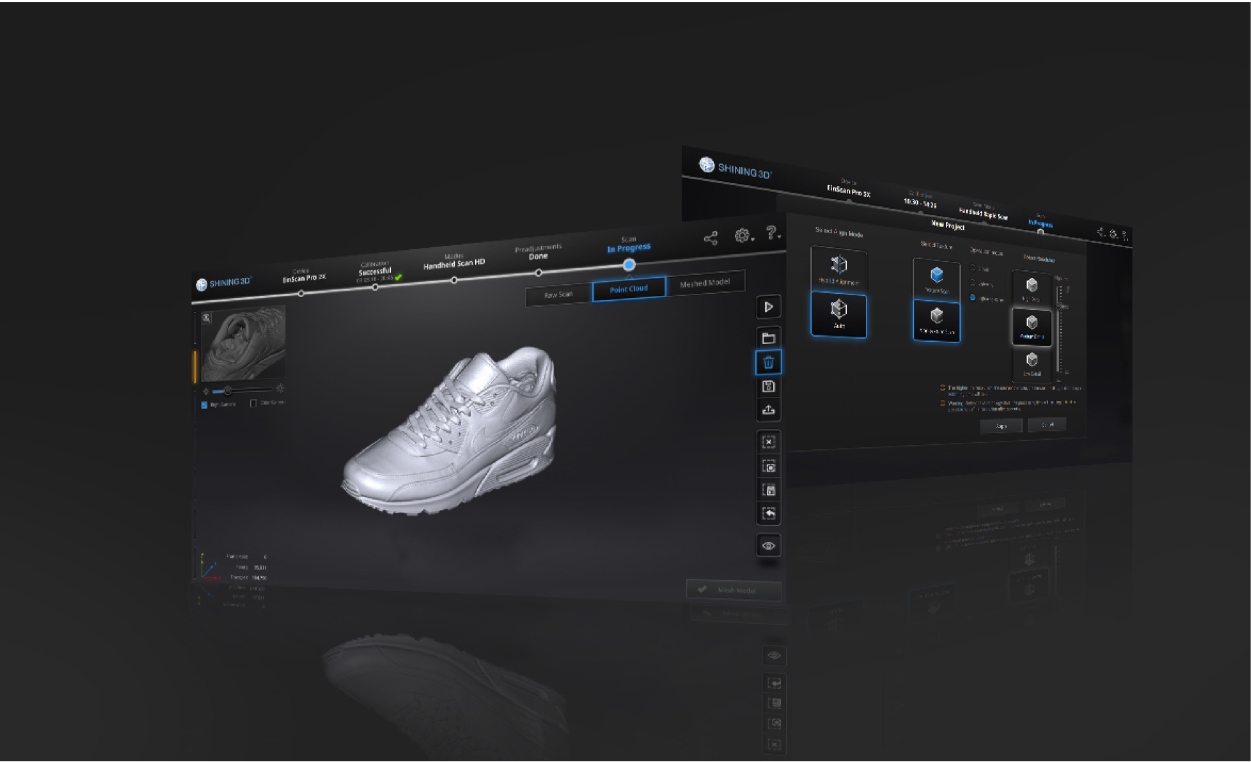

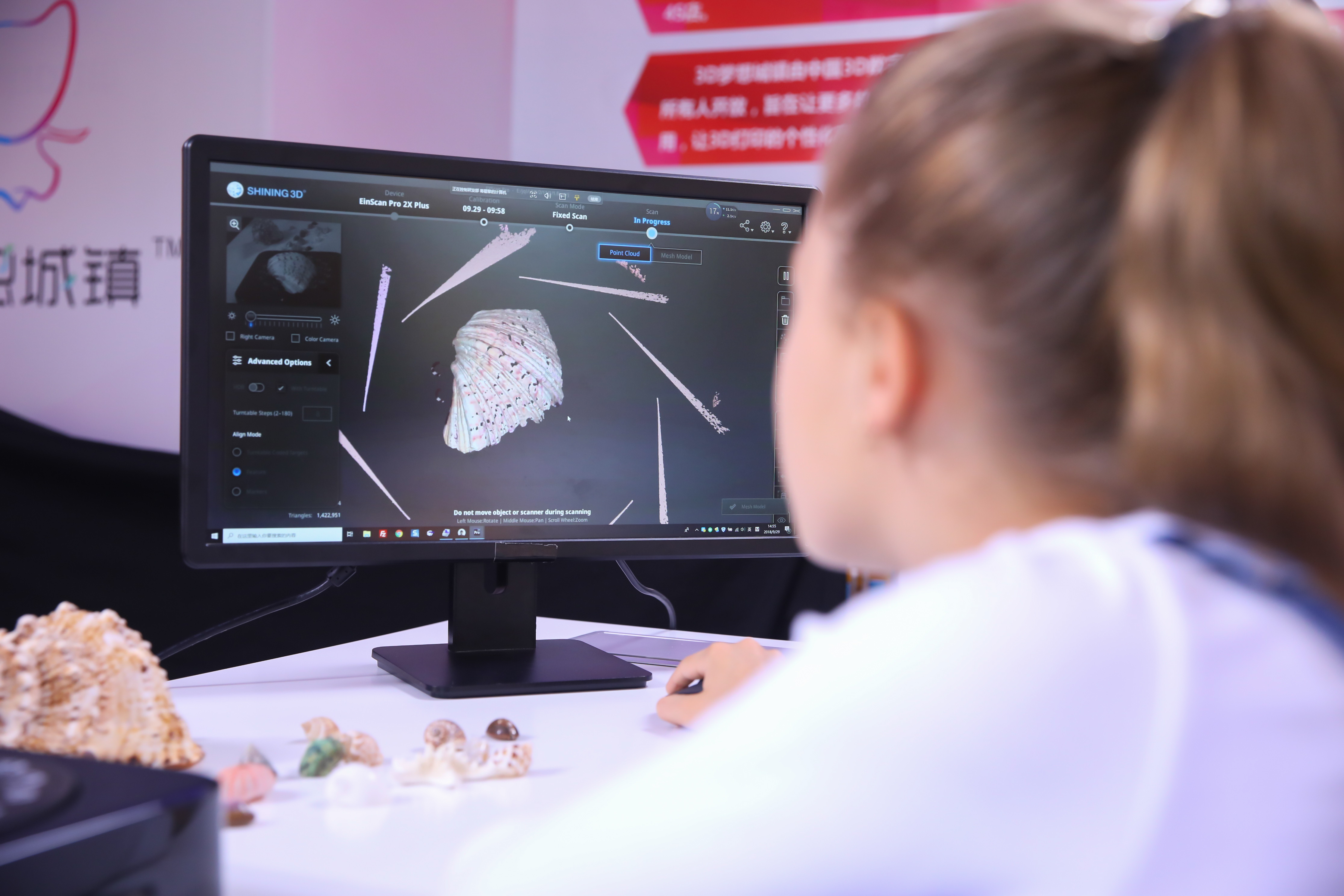

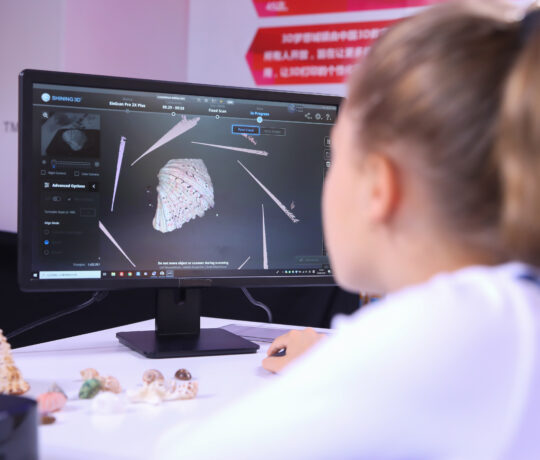

EXSCAN PRO SOFTWARE

New user interface, new workflow and new way of working. Ability to set the resolution option after the fact, which improves scanning efficiency. Standard output files: STL, OBJ, PLY, 3MF, ASC and P3

Scan modes Handheld HD Scan Handheld Rapid Scan Fixed scan

with turntable

Fixed scan

without turntable

Scan
Scan Accuracy Up to 0.045 mm Up to 0.1 mm 0.04 mm

(Single Shot Accuracy)

0.04 mm

(Single Shot Accuracy)

Volumetric Accuracy 0.3 mm/m (Markers Alignment) N/A N/A
Scan speed 10 fps

3,000,000 points/s

30 fps

1,500,000 points/s

Scan simple: < 1 s
Point Distance 0.2 mm – 2 mm 0.16 mm
Single Scan Range 150 x 120 mm – 250 x 200 mm
Depth of Field +/- 100 mm
Working Distance 400 mm
Light Source LED
Texture Scan No Yes (with Add-on: Color Pack)
Outdoor Operation Set up the shelter or cover to avoid direct sunlight
Special Objects for
Scanning
For the transparent, highly reflective or some dark objects, please spray powder before scanning
Software
Version EXScan
Output Formats  OBJ , STL , ASC , PLY , P3, 3MF
Compatibility Win 7, Win 8, Win 10, 64 bit
Configuration
Recommended configuration Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;



Required configuration Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Dimension / Weight
Dimension 37 x 36.5 x 13.5 cm
Package weight 1.13 kg

Manufacturer

Logo Shining 3D

SHINING 3D

SHINING 3D develops, manufactures and commercializes a wide range of 3D technologies, including 3D scanners for multiple industries and applications, different types of 3D printers as well as 3D printing materials. SHINING 3D also offers through partnerships with Siemens and 3D Systems professional software from CAD design to 3D inspection and even a 3D cloud network…
