Thermoforming 508FS

Manufacturer : Thermoforming machine
Sectors : Education, Fablabs, Industry

The 508FS thermoformer is equipped with the latest technology in thermoforming.

Reference : Thermoformeuse508FS
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

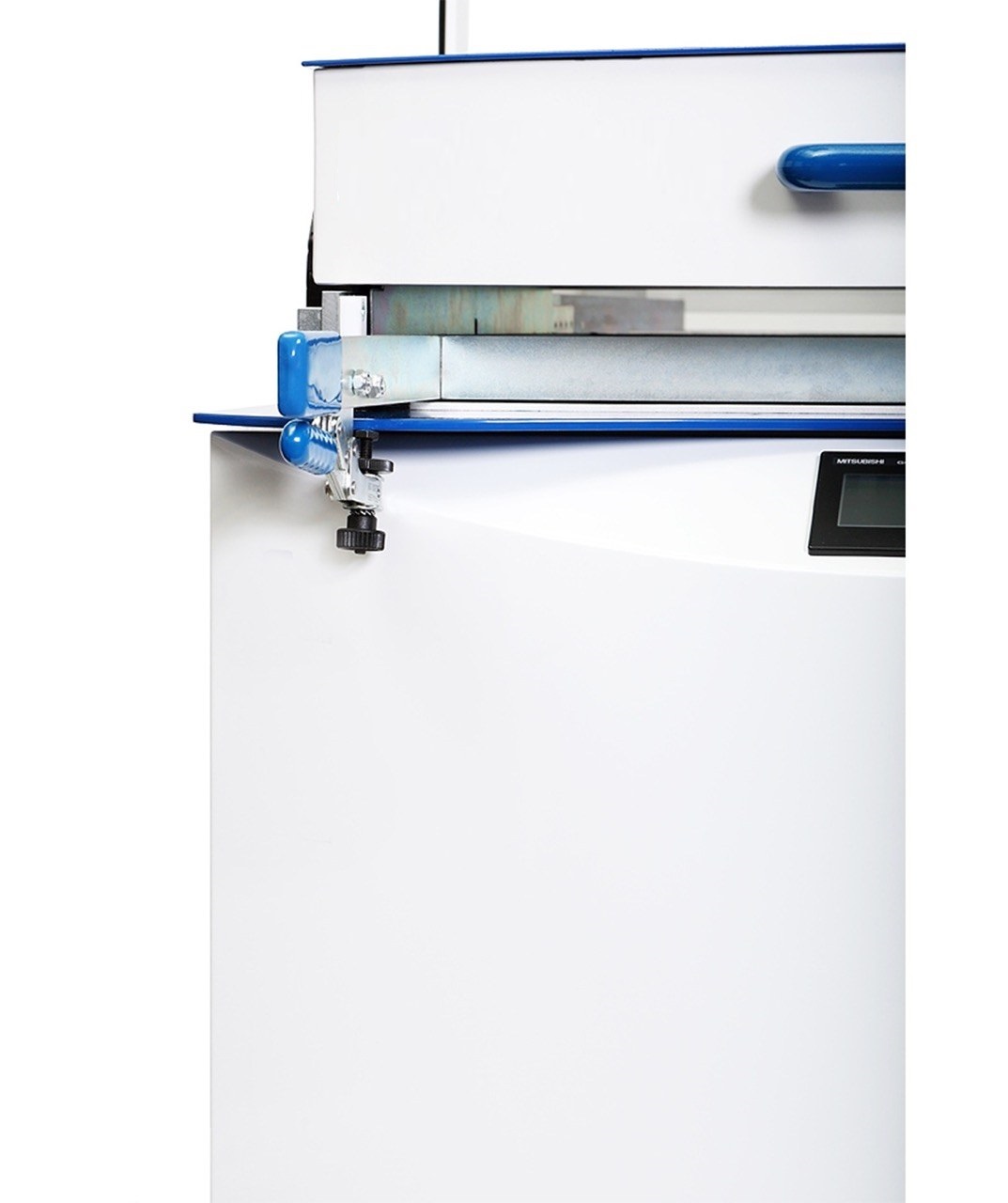

Thermoforming 508FS

The 508FS thermoformer has additional functions compared to the table machines. Self-leveling and bubbling systems allow for more complex applications. The bubbling system stretches the plastic by blowing air to obtain a better distribution of the thickness of the plastic at the time of forming.

The self-leveling feature allows you to inject air under the hot plastic to keep it level. Its intuitive and intuitive touch screen with its backup function allows easy operation of the machine. The forming capabilities of the 508FS are enhanced by the strength of the Quartz resistors, superior to that of the 508DT.

THERMOFORMER 508FS

TECHNICAL SPECIFICATIONS

  • PLC control with 4 “touch screen
  • Memory with 12 programs
  • Prestretching
  • Self-leveling
  • Quartz heater with variable standby
  • 4 independently controllable heating zones
  • Vacuum and demolding
  • manometer
  • 208 V – 240 V / 20 A
  • Power consumption : 3.5 kW

TECHNICAL CHARACTERISTICS

  • Sheet area : 508 x 457 mm
  • Forming surface : 482 x 432 mm
  • Depth of thermoforming : 290 mm
  • Thickness of the material : 6 mm
  • Heating type : Quartz
  • Heating zones : 4

OTHER CHARACTERISTICS

  • CE machine
  • Locking system preventing the rise of the mold if the heating plate is in the forward position
  • Heating tray mounted on slides
  • Quick start
  • Designed for easy maintenance
  • Quick change of the molds. possible use of molds plaster, wood, resin, aluminum.
  • 12 months warranty.

OPTIONS

  • Reduction frame 208 x 203 mm
  • Reduction frame 43 x 230 mm
  • Cooling system
  • Spare parts kit
  • A mold
  • A 500 or 800 micron PVC plastic spool of 30 kg

Manufacturer

Thermoforming machine

The thermoforming process is used to produce thermoplastic parts for a wide variety of applications, including high-tech, aeronautics, automotive, packaging and interior design. It's a fast, simple solution that involves heating a thermoplastic in coil or sheet form to make it malleable and take on the shape of a mold.
