Cutting

Waterjet Cantilever

Manufacturer : Waterjet
Sectors : Aerospace, Automotive, Industry, Medical, Jewelry, Railway

The Waterjet’s Cantilever range of products corresponds to precise and efficient waterjet cutting machines. The cutting head is put in a cantilever position, allowing the easy loading, and unloading of material.

The range of products includes the Prima model with its fully integrated tank and the Pratica model entirely customizable.

Reference : WATERJETcantilever
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Waterjet Cantilever

The Cantilever range of products combines precision and flexibility. With its cutting head put in a cantilever position, Waterjet’s Cantilever range of products can adapt to all your needs with an outstanding level of customization.

Prima

Entry-level waterjet cutting system, in 3 axes with integrated tank. Ideal for simple treatment.

  • Integrated steel tank
  • The Flying Bridge technology allows easy loading/unloading of materials on the three free sides
  • Rack and pinion motion system with automatic lubrication
  • 3 axis NC
  • Integrated electrical cabinet

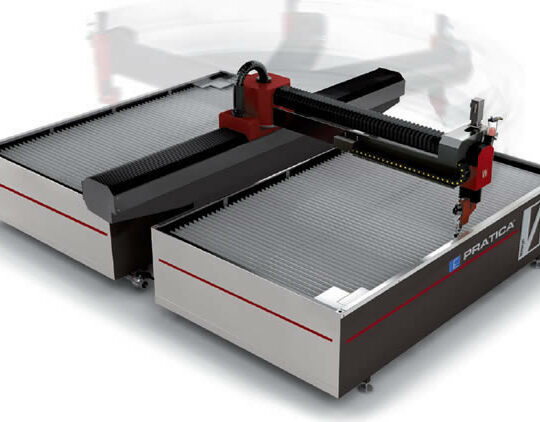

Pratica

Flexible machine for the number of accessories that can be combined. 3-axis system with customizable separate tank.

  • Separate steel tank
  • Reinforced Flying Bridge system that allows easy loading / unloading of materials on the three free sides
  • Ball screws motion system with automatic lubrication
  • 3 axes NC
  • Integrated electrical cabinet,
  • Combinable with a wide choice of optional accessories (e.g. rotating bridge, loading / unloading system, etc.)

RAM

Suspension bridge cantilever system that can be combined with 3/4/5 axes. For special machining.

  • Separate tank suitable to cut all standard and special materials
  • Flying bridge Modular Technology
  • 3D 5 axis system with extendable Z axis up to 1 m (40”) high which allows to position on the working tank large parts
  • Maximum sealing protection of the bearings and LM guides
  • Maximum accessibility 4 sides open area
  • For large and bulky materials

Dimensions and net cutting area of the machines are customizable.

Prima

  • Rapid Speed : 0 – 02 m/min
  • Positionning Accuracy : ± 0,1 mm
  • Repeatability : ± 0,05 mm
  • Ball Bar ø 300 mm : ± 0,1 mm

Pratica

  • Rapid Speed : 0 – 12 m/min
  • Positionning Accuracy : ± 0,075 mm
  • Repeatability : ± 0,05 mm
  • Ball Bar ø 300 mm : ± 0,075 mm

Manufacturer

logo Waterjet

Waterjet

Waterjet is an Italian company founded in 1991 which became an expert in waterjet cutting and finishing. Their high-pressure waterjet technology allows the fast and precise cutting of all materials with a thickness up to 300 mm. The water cutting technology allows to cut almost any materials without concerning about…
