Cutting

Waterjet Gantry

Manufacturer : Waterjet
Sectors : Automotive, Industry, Medical, Jewelry, Railway

The Waterjet’s Gantry range of products are a high precision waterjet cutting devices. The cutting head is put on a gantry that moves over the tank. The range of products includes the Waterline model, the classic model called “Classica” and the high-end model Suprema.

Reference : WATERJETgantry
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

Waterjet Gantry

With its cutting head put on a gantry, this waterjet’s range of products can adapt to all your needs. Customization is once again at the center of the offer of Waterjet. Indeed, it’s possible to add more gantries or axes to the cutting head.

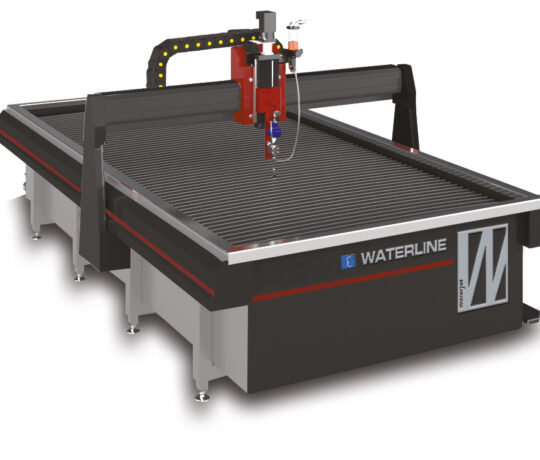

Waterline

3/5 axis Entry level waterjet machine with 3/5 axes with integrated tank, bridge only on the short side.

  • Integrated Steel Tank with Gantry Bridge Technology
  • 3-4-5 axis NC
  • Helical Rack & Pinion motion system with automatic lubricating system
  • For simple processing and pure waterjet cutting

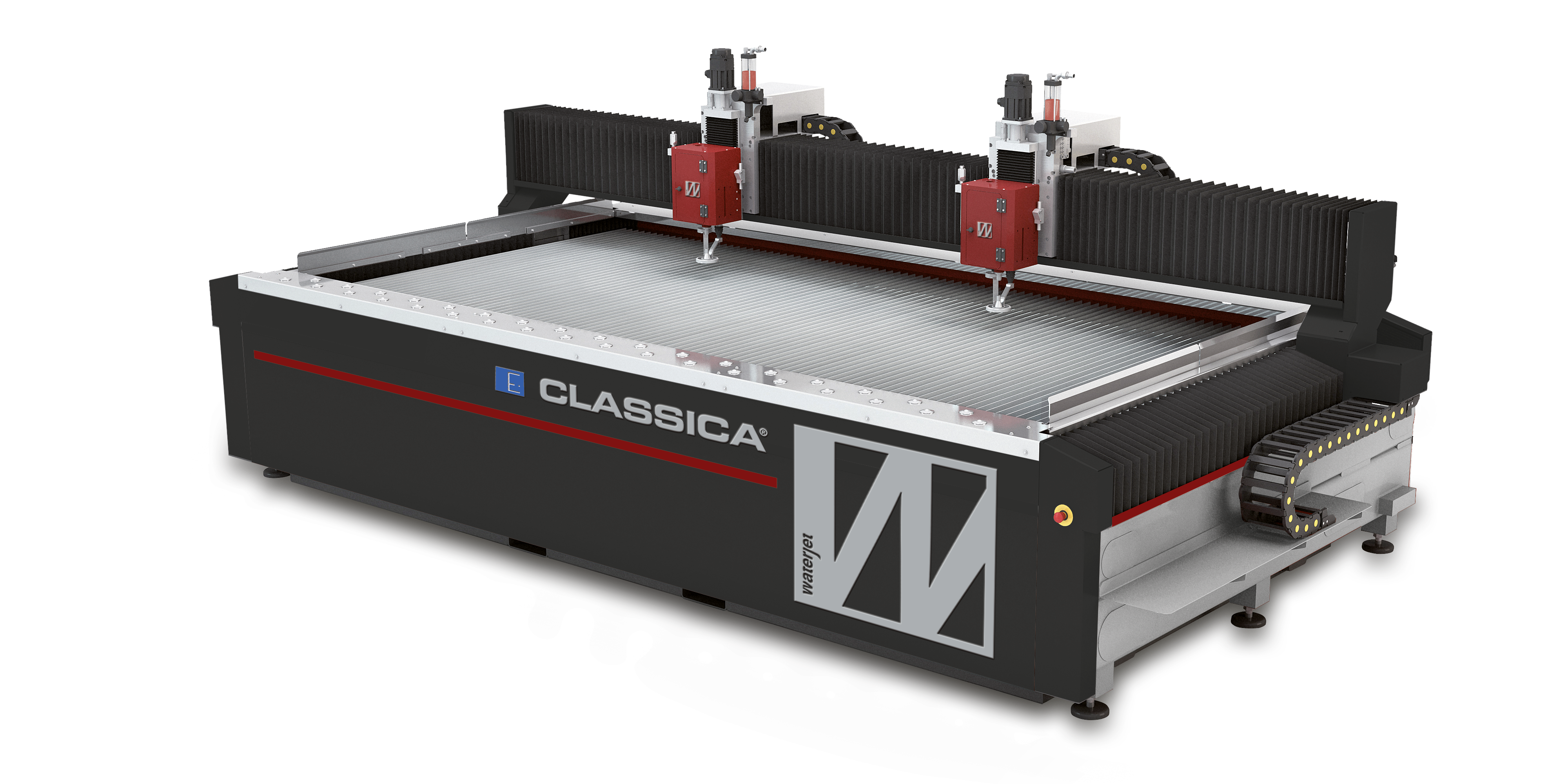

Classica

3/5 axis waterjet Classic system with integrated tank and reinforced bridge. Max performance and precision.

  • Stainless steel tank
  • 3-4-5 axis CNC
  • Reinforced gantry technology
  • Helical rack and pinion motion system and automatic lubrication
  • Possibility of increasing productivity by adding cutting heads

Suprema

Top of the range. Compact waterjet machine with 3/5 axis, high accuracy, separate tank. Ideal for large material dimensions.

  • Separate stainless steel tank
  • 3-4-5 axis CNC
  • Reinforced machined tubular steel bridge
  • For those who need high dimensions, precision and speed

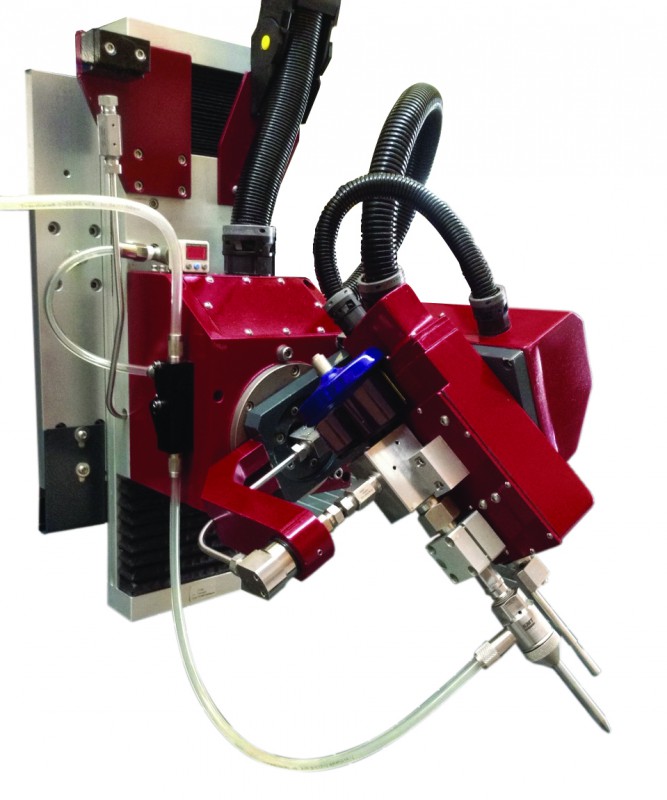

This 5 axis Evolution 3D cutting system automatically maintains by the Touch Wave™ sensor a constant distance between the nozzle and the material. This is also done while the cutting head is rotating. The interpolation of the axis can reach up to ± 69° in any 3D direction (optional ± 90° and infinite rotation).

Dimensions, cutting area and weight of the machine are customizable.

Waterline

  • Cutting Speed : 0 – 20 m/min
  • Positioning Accuracy : ± 0,1 mm
  • Repeatability : ± 0,05 mm
  • Ball Bar ø 300 mm : ± 0,1 mm

Classica

  • Cutting Speed : 0 – 30 m/min
  • Positioning Accuracy : ± 0,075 mm
  • Repeatability : ± 0,05 mm
  • Ball Bar ø 300 mm : ± 0,075 mm

Suprema

  • Cutting Speed : 0 – 20 m/min
  • Positioning Accuracy : ± 0,05 mm
  • Repeatability : ± 0,025 mm
  • Ball Bar ø 300 mm : ± 0,05 mm

Manufacturer

logo Waterjet

Waterjet

Waterjet is an Italian company founded in 1991 which became an expert in waterjet cutting and finishing. Their high-pressure waterjet technology allows the fast and precise cutting of all materials with a thickness up to 300 mm. The water cutting technology allows to cut almost any materials without concerning about…
