Cutting

Waterjet – W-Power

Manufacturer : Waterjet
Sectors : Automotive, Industry, Medical, Jewelry, Railway

The W-Power are electric and hybrid pumps for waterjet cutting.

These pumps provide the option of upgrading the existing system to a more modern technological level of innovation.

Reference : WATERJETwpower
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

WATERJET – W-POWER

These pumps provide the option of upgrading the existing system to a more modern technological level of innovation aimed at maximum efficiency, energy saving and respect for the environment for a new business model that is more and more sustainable with improved productivity and reduced operating and maintenance costs.

The W-Power family has 5 pumps

  • 3 hybrids : Servo X, Hyper X and HPP Drive,
  • et 2 electrics : E-Drive X and E-Drive Pro X.

Benefits

  • 37 to 50% improvement in energy efficiency
  • 5% reduction in noise and acoustic pollution
  • 60% reduction of the dimensional footprint
  • 90% reduction in environmental impact
  • 20% increase in cutting performance thanks to control of motor torque and cutting pressure
  • 10% reduction in maintenance and processing costs

Waterjet - W-Power

THE HYBRID MODELS

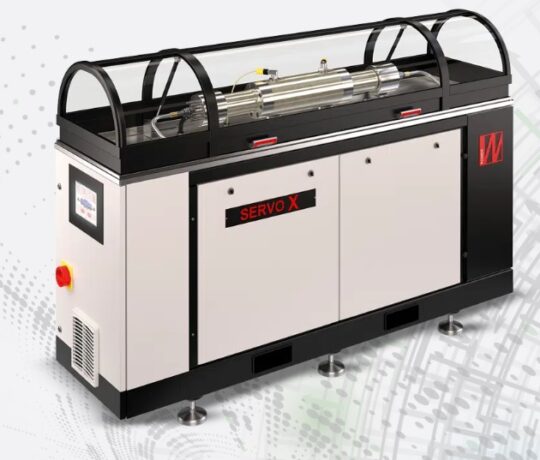

waterjet Servo X

  • Waterjet - W-Power - Servo XBrushless SERVO motor: 27 kW (TUV certified)
  • Water consumption: 0.9 GAL/min or 3.7 lt /min
  • Orifice size: 0.014” or 0.35 mm
  • Max. working pressure: Up to 4.150 Bar (60 KPSI)
  • Efficiency: > 90%
  • HYBRID Intensifier system: PATENTED hydraulic system with progressive opening valves
  • Power consumption (head closed): 0 kW
  • Total energy saving (compared to traditional oleo dynamic system): 14kW/h = 37% (27% full load savings + 10% cycles saving with head closed)
  • Oil tank: 5 GAL
  • Low noise: < 78 dB
  • Reduced overall dimensions: 7’x2’x4’ ½ or 2.110 x 605 x 1.431 H mm

waterjet Hyper X

  • Waterjet - W-Power - Hyper XBrushless SERVO motor: 29 kW (TUV certified)
  • Water consumption: 0.7 GAL/min or 2.5 lt /min
  • Orifice size: 0.010” or 0.25 mm
  • Max. working pressure: Up to 6.500 Bar (95 KPSI)
  • Efficiency: > 90%
  • HYBRID Intensifier system: PATENTED hydraulic system with progressive opening valves
  • Power Consumption (head closed): 0 kW
  • Total energy saving (compared to traditional oleo dynamic system): 20kW/h = 45% (35% full load savings + 10% cycles saving with head closed)
  • Oil tank: 5 GAL
  • Low noise: < 78 dB
  • Reduced overall dimensions: 7’x2’x4’ ½ or 2.110 x 605 x 1.431 H mm

Waterjet HPP Drive

  • Waterjet - W-Power - HPP DriveBrushless SERVO motor: 132 kW (TUV certified)
  • Water consumption: 3.8 GAL/min or 22 lt /min
  • Orifice size:
  • Max. working pressure: Up to 6.000 Bar (87 KPSI)
  • Efficiency: > 85%
  • HYBRID Intensifier system: PATENTED hydraulic system with progressive opening valves
  • Power Consumption (head closed): 0 kW
  • Total energy saving (compared to traditional oleo dynamic system): 58kW/h = 30% (30% full load savings)
  • Oil tank: 60 GAL
  • Low noise: < 80 dB
  • Reduced overall dimensions: 7’x 6’ ½ x 4’ ½ or 2144 x 2000 x 1420 H mm

FULL ELECTRIC MODELS

E-Drive X

  • Waterjet - W-Power - E-Drive XBrushless SERVO motor: 26 kW (TUV certified)
  • Water consumption: 0.9 GAL/min or 3.7 lt /min
  • Orifice size: 0.014” or 0.35 mm
  • Max. working pressure: Up to 4.200 Bar (62 KPSI)
  • Efficiency: > 95%
  • HYBRID Intensifier system: Rotating Nut Screw indirect linear transmission with double effect
  • Power Consumption (head closed): 0 kW
  • Total energy saving (compared to traditional oleo dynamic system): 15kW = 40% (30% full load savings + 10% cycles saving with head closed)
  • Oil tank: None
  • Low noise: < 76 dB
  • Reduced overall dimensions: 7½ x 2’ x 4’ ½ or 2.300 x 605 x 1431 H mm

E-Drive Pro X

  • Waterjet - W-Power - E-Drive Pro XBrushless SERVO motor: 27 kW (TUV certified)
  • Water consumption: 0.7 GAL/min or 2,5 lt /min
  • Orifice size: 0.010” or 0.25 mm
  • Max. working pressure: Up to 6.000 Bar (87 KPSI)
  • Efficiency: > 90%
  • HYBRID Intensifier system: Rotating Nut Screw indirect linear transmission with double effect
  • Power Consumption (head closed): 0 kW
  • Total energy saving (compared to traditional oleo dynamic system): 23kW = 50% (40% full load savings + 10% cycles saving with head closed)
  • Oil tank: None
  • Low noise: < 78 dB
  • Reduced overall dimensions: 7’½ x 2’ x 4’ ½ or 2.300 x 605 x 1431 H mm

Manufacturer

logo Waterjet

Waterjet

Waterjet is an Italian company founded in 1991 which became an expert in waterjet cutting and finishing. Their high-pressure waterjet technology allows the fast and precise cutting of all materials with a thickness up to 300 mm. The water cutting technology allows to cut almost any materials without concerning about…
