Additive-Manufacturing

IEMAI 3D – YM-NT-750

Manufacturer : Iemai 3D
Sectors : Aerospace, Automotive, Education, Fablabs, Industry, Luxury, Medical, Railway

The YM-NT-750 from IEMAI 3D enables 3D printing for large volumes 750 x 750 x 750 mm.

Reference : IEMAI3D-YM-NT-750
technique
Support
rea-paiement
Secure Payment
Do you need more information ?

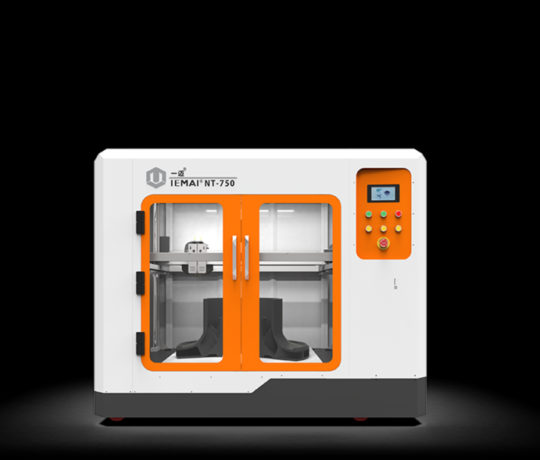

YM-NT-750 industrial 3D printer

YM-NT-750 is specially designed for large volume printing of polymers, with 275 °C extruder temperature, 120 °C hot bed temperature, it is able to support most of the polymers on the market (ASA, ABS, CF-ABS, PETG, HIPS, PC, PA, TPU, PLA, CF-PLA, PVA…). It had a modular mechanism on the extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive printing.

Features

  • Power Failure Recovery
  • Filament Absent Warning
  • Auto-Shut Down System
  • WIFI control
  • Dual or single Extruder
  • Vacuum Adsorption Platform

YM-NT-750 industrial 3D printer

  • Printable materials : ASA, ABS, CF-ABS, PETG, HIPS, PC, PA, TPU, PLA, CF-PLA, PVA…
  • Filament diameter : 1.75mm, 2,85 mm or 3 mm
  • Open material system
  • Print size (xyz): 750x750x750mm
  • Max extruder temperature : 275 ℃
  • Max hot bed temperature : 120℃
  • Layer resolution :100-600 microns
  • Position Accuracy : X/Y 12.5 microns ; Z 1.25 microns
  • Feeder system: Direct, Near end extrusion
  • Extruder type : Dual extruder for 1.75 mm of filament
  • Nozzle size : standard 0.4 mm, optional 0.2-1.0mm
  • Max print speed : 150 mm/s
  • Frame : Metal, glass
  • Closed print chamber : Yes, fully enclosed
  • Print bed : High viscosity fiberboard, CARBON FIBER Plate, Composite Metal (optional)
  • Display : 5 inches full color touch screen
  • Firmware : Open-source
  • Connectivity : USB/SDCard/Wi-Fi (cellphone)
  • Slicing : Cura, IEMAI3D, Simplify3D, Compatible with other
  • Operating system(s) : Windows7/8/10 64bit.
  • Machine outer dimensions (xyz) : 1642 x 1110 x 1320 mm
  • Net Weight : 400 kg
  • 200-250 V
  • 50-60Hz,4500 W

Optional

MULTIFUNCTIONAL MOISTURE PROOF CABINET FOR TOOLS AND CONSUMABLES

  • Humidity control range : 10-20%

Manufacturer

Iemai 3D

Iemai 3D

High performance materials industrial applications IEMAI focuses on the R&D, production and sales of 3D printing equipment, and provides 3D printing solutions for industrial applications of high-performance materials. IEMAI implements high quality standards for product development and production, and all current 3D printers have obtained CE and ROHS certification. IEMAI…
